Търсене в каталога
41538 резултата за "SICK" · стр. 316/2077
C4MT-07214ABB03FE0
Safety light curtains | miniTwin | C4MT-07214ABB03FE0 | Usage: miniTwin4 as a standalone device, miniTwin4 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 5 m | Protective field height: 720 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso
DFS60B-S4EL00050
Incremental encoders | DFS60 | DFS60B-S4EL00050 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 50
MLG20A-0140R10501
Automation light grids | MLG-2 | MLG20A-0140R10501 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 140 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 3.5 ms | Software feature (default setting - see technical data/features): 01

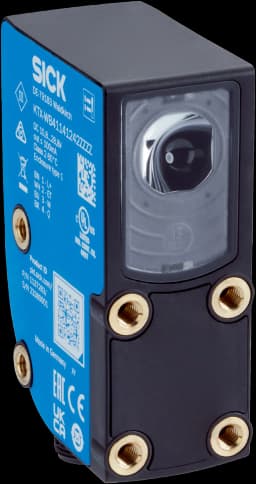

KTX-WN41141242ZZZZ
Contrast sensors | KTX | KTX-WN41141242ZZZZ | Light source: LED | Communication interface: - | Device type: Easy Teach | Sensing distance: 13 mm | Switching output: NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M12, 4-pin | Teach-in mode: 2-point teach-in | Delivery status: 2-point teach-in | Housing material: Plastic
PBT-CB4X0SGESSSAMA0Z
Pressure sensors | PBT | PBT-CB4X0SGESSSAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Conn
DBS60E-RAFP00100
Incremental encoders | DBS60 | DBS60E-RAFP00100 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
RT-P3233
Photoelectric sensors | ZoneControl | RT-P3233 | Product version: R | Sensing range max.: 60 mm 900 mm | Functional principleDropdown: Photoelectric proximity sensor | Functional principle detailDropdown: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with male connector
AFM60B-TEKK008192
Absolute encoders | AFS/AFM60 SSI | AFM60B-TEKK008192 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 1.5 m
DBS60E-BDEJD1024
Incremental encoders | DBS60 | DBS60E-BDEJD1024 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
BEF-KH-M06
Mounting systems | Brackets | BEF-KH-M06 | Material: Plastic | Details: Plastic (PA6) | Items supplied: Without mounting hardware | Usable for: Round sensors with 6.5 mm housing diameter without fixed stop
SGS4-F060P3PS2T03
Automation light grids | SLG | SGS4-F060P3PS2T03 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 57 ms
C2MT-08434BBC03FB0
Safety light curtains | miniTwin | C2MT-08434BBC03FB0 | Usage: miniTwin2 as a standalone device | Mounting system type: O-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 34 mm | Scanning range: 8 m | Protective field height: 840 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, O-Fix bracket, 2 pieces, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions
YF8U14-020VA3M8U14
Connectors and cables | Sensor-actuator cables | YF8U14-020VA3M8U14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M8, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DAXTAN-0405RA1J0J00F00
Linear encoders | DAX | DAXTAN-0405RA1J0J00F00 | Design: DAX Threaded | Communication interface: - / Current | Current output: 20 mA ... 4 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 405 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Falling | Unusable range (zero zone/damping zone): 30 mm / 60 mm | Magnet type: Ring magnet MAG-O-330-01 | Thread offset: Without thread offset | Thread shape: M18 x 1.5
YG2A2B-050VH2XLEAX
Connectors and cables | Sensor-actuator cables | YG2A2B-050VH2XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 12-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 12-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
SLG50S-050SBKA1K01
Automation light grids | FlexChain | SLG50S-050SBKA1K01 | Device version: FlexChain Guest | Optical light exit: Slim | Beam separation: 50 mm | Operating range: 6.5 m | Detection height: 500 mm | Length of cable: 0.5 m
MLG05W-0500R12501
Automation light grids | MLG-2 WebChecker | MLG05W-0500R12501 | Device version: Web guiding | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 745 mm | Measuring field width detail (connection side/medium range/head side): 745 mm / 0 mm / 0 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 30.8 ms | Software feature (default setting - see technical data/features): 01
PBT-RP8K0SN1SS0AMA0Z
Pressure sensors | PBT | PBT-RP8K0SN1SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: psi | Measuring range: 0 psi ... 8,000 psi | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection typ
IME08-02BNOZT0K
Inductive proximity sensors | IME | IME08-02BNOZT0K | Housing: Short-body | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Connector M8, 3-pin
DFS60B-S4EA00500
Incremental encoders | DFS60 | DFS60B-S4EA00500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500
