Търсене в каталога
41538 резултата за "SICK" · стр. 313/2077
AFM60A-TDKK262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TDKK262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 1.5 m

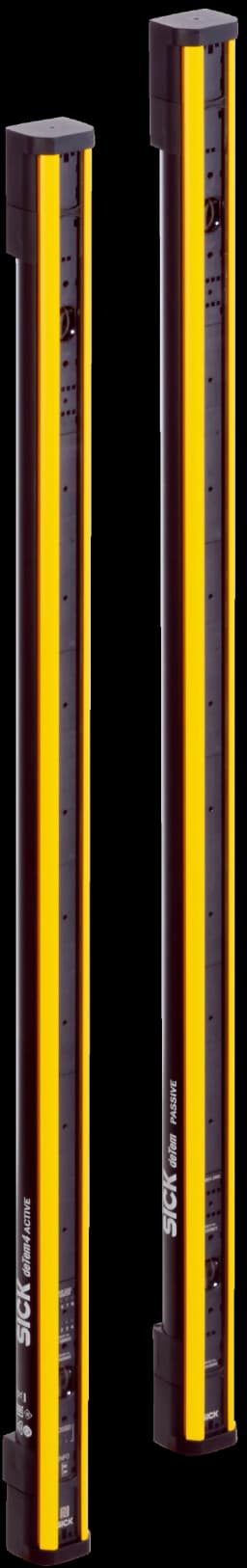

M4P-ZA02500C00, PSN01-2501
Safety light-beam sensors | deTem | M4P-ZA02500C00, PSN01-2501 | Product version: deTem4 A/P | Functional principle: Active/passive | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 2 | Beam separation: 500 mm | Connection type: Depending on system plug (M12 ma
MLG10S-0140D10801
Automation light grids | MLG-2 | MLG10S-0140D10801 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 8.5 m | Detection height: 140 mm | Length of cable: 0.22 m, 0.22 m | Response time: 6 ms | Software feature (default setting - see technical data/features): 01
ZLD18-2KZAE8
Photoelectric sensors | Z18 Simple Sense | ZLD18-2KZAE8 | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: PNP, Dark switching | Switching output Q2: Not connected | Connection type: Cable with connector RJ11, 6-pin, 1,000 mm
AFS60S-S1KJ262144
Safety encoders | AFS/AFM60S Pro | AFS60S-S1KJ262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 0.5 m
AFS60S-SDSK262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SDSK262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 1.5 m
BCG05-K1KM01PP
Wire draw encoders | EcoLine | BCG05-K1KM01PP | Measuring range: 0 m ... 1.25 m | Communication interface: - / Current / 4...20 mA | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-K1K0-K01, 6039751 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: no
DBS60E-TCFA00100
Incremental encoders | DBS60 | DBS60E-TCFA00100 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-TFPK01024
Incremental encoders | DFS60 | DFS60B-TFPK01024 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
LFV200-XATGATPML
Level sensors | LFV200 | LFV200-XATGATPML | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 115 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP67 | Display: no | PWIS-cleaned
DBS36E-S3PK02000
Incremental encoders | DBS36/50 | DBS36E-S3PK02000 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, Open Collector | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 2,000
DBS60E-S3EC00100
Incremental encoders | DBS60 | DBS60E-S3EC00100 | Mechanical design: Solid shaft face mount flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push-Pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DBS60E-RGCA00100
Incremental encoders | DBS60 | DBS60E-RGCA00100 | Mechanical design: Through hollow shaft 14 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-THCK08192
Incremental encoders | DFS60 | DFS60B-THCK08192 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 8,192
AHS36A-BDCK016384
Absolute encoders | AHS/AHM36 | AHS36A-BDCK016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: CANopen, programmable | Connection type: Cable, 5-wire, universal, 1.5 m | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool
C2C-SA18030A10000, C2C-EA18030A10000
Safety light curtains | deTec | C2C-SA18030A10000, C2C-EA18030A10000 | Product version: deTec2 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,800 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting inst
AHS36A-S5CC016384
Absolute encoders | AHS/AHM36 | AHS36A-S5CC016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft face mount flange 8 mm x 12 mm (With flat) | Communication interface: CANopen, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool
PBT-RB025SG4SHCALA0Z
Pressure sensors | PBT | PBT-RB025SG4SHCALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: –40 °C ... +100 °C | Seal: Copper | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
GL6-P3212S63
Photoelectric sensors | G6 | GL6-P3212S63 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: Refl
MLG05W-0353N12503
Automation light grids | MLG-2 WebChecker | MLG05W-0353N12503 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,645 mm | Measuring field width detail (connection side/medium range/head side): 445 mm / 755 mm / 445 mm | Length of cable: 0.22 m, 0.27 m | Response time: 36.7 ms | Software feature (default setting - see technical data/features): 03
