41538 резултата за "SICK" · стр. 306/2077
DR35-B15822
Laser distance sensors | Dx35 | DR35-B15822 | Communication interface: IO-Link | Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DFS60B-BJWA00064
Incremental encoders | DFS60 | DFS60B-BJWA00064 | Mechanical design: Blind hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 64
DFS60S-BFOA01024
Safety encoders | DFS60S Pro | DFS60S-BFOA01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Blind hollow shaft 1/2″ (with feather key) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
DBS60E-TGCM01000
Incremental encoders | DBS60 | DBS60E-TGCM01000 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
LFH-EW060G1AS1HSZ0
Level sensors | LFH | LFH-EW060G1AS1HSZ0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: PUR cable connection | Process temperature: –10 °C ... +50 °C | Process pressure: 0 mH2O ... 60 mH2O | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Specialty: Enhanced va
PBS2-CB6X0SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-CB6X0SG1SSDNMA0Z | Pressure type: Compound pressure | Pressure unit: bar psi | Measuring range: –1 bar ... 5 bar, –14.5 psi ... 73 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output sig
DAXLAN-0550BA4C0000D00
Linear encoders | DAX | DAXLAN-0550BA4C0000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 550 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Large block magnet MAG-B-200-01
Logistics Camera Tunnel 5-sided-101
Track and trace systems | Lector Identification System | Logistics Camera Tunnel 5-sided-101 | Read field width: 0 mm ... 800 mm | Object height: 0 mm ... 700 mm | Transport speed: 0 m/s ... 2 m/s | 1D code resolution: 0.33 mm ... 1 mm | 2D code resolution: 0.5 mm ... 1 mm | Number of cameras: 4 | Scope of delivery: Lector camera, ICR camera, controller, PES trigger, encoder, VMS
DFS60B-BDVA02500
Incremental encoders | DFS60 | DFS60B-BDVA02500 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,500
IME12-08NNOZW2K
Inductive proximity sensors | IME | IME12-08NNOZW2K | Housing: Short-body | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m
THTL-1ABZZ0213MZ
Temperature sensors | THTL | THTL-1ABZZ0213MZ | Temperature measuring range: –50 °C ... +250 °C | Process connection: Spare sensor without process connection | Nominal width: DN 21.3 | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67, IP69 | Communication interface: -
GRTB18S-P2412
Photoelectric sensors | GR18 | GRTB18S-P2412 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
DBS60E-RCEP00100
Incremental encoders | DBS60 | DBS60E-RCEP00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
SLG50S-020FAR11A00
Automation light grids | SLG-2 | SLG50S-020FAR11A00 | Optical light exit: Flat | Beam separation: 50 mm | Operating range: 3.5 m | Detection height: 200 mm | Length of cable: 150 mm
DAXTAN-1100RA1F0L00D00
Linear encoders | DAX | DAXTAN-1100RA1F0L00D00 | Design: DAX Threaded | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,100 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 30 mm / 60 mm | Magnet type: Ring magnet MAG-O-330-01 | Thread offset: With thread offset | Thread shape: M18 x 1.5
DFS60B-TEEK01000
Incremental encoders | DFS60 | DFS60B-TEEK01000 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000
IMC18-12NPPVC0SA70
Inductive proximity sensors | IMC | IMC18-12NPPVC0SA70 | Sensing range Sn: 0 mm ... 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NC, NO | Connection type: Male connector M12, 4-pin | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task (Time measurement + debouncing)

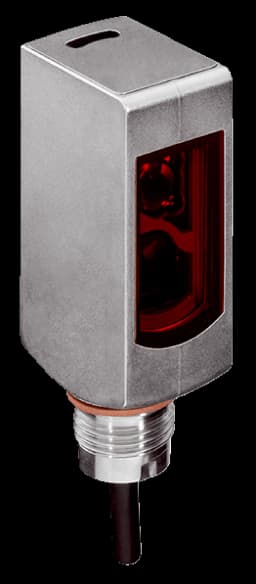

WTB4S-3P3235H
Photoelectric sensors | W4 | WTB4S-3P3235H | Sensing range max.: 4 mm ... 120 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M8 male connector, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Wire/pin | Housing: Rectangular
WL4S-3P1032HS02
Photoelectric sensors | W4 | WL4S-3P1032HS02 | Sensing range max.: 0 m ... 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 5 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Special
MLG10N-1940N10801
Automation light grids | MLG-2 | MLG10N-1940N10801 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 8.5 m | Detection height: 1,940 mm | Length of cable: 0.22 m, 0.21 m | Response time: 16.3 ms | Software feature (default setting - see technical data/features): 01
