YF2A13-020UB1XLEAX
Connectors and cables | Sensor-actuator cables | YF2A13-020UB1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
AFM60B-TEAA032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-TEAA032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
DBS60E-TAFCD3000
Incremental encoders | DBS60 | DBS60E-TAFCD3000 | Mechanical design: Through hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 3,000 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
PBT-RB4X0AG1SSFVLC0Z
Pressure sensors | PBT | PBT-RB4X0AG1SSFVLC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 4 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type:
MAX48A-11V10K10051
Linear encoders | MAX | MAX48A-11V10K10051 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Voltage | Connection type: Connecting cable, 3-wire, 300 mm | Measuring range: 0 mm ... 51 mm | Output signal: 0.5 V DC ... 4.5 V DC

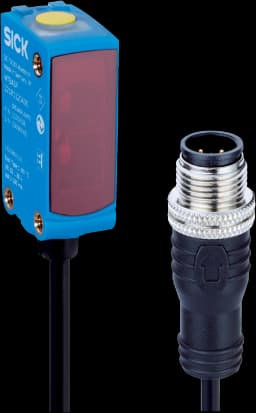

WLG4SP-84161130A00
Photoelectric sensors | W4 | WLG4SP-84161130A00 | Sensing range min. / max.: 0 m / 7.1 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), ClearSens, MultiMode | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug M12, 4-pin, 190 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Ad
SPZ-58Z-12Z-P
Shaft adaptation | Collets | SPZ-58Z-12Z-P | Product segment: Shaft adaptation | Product: Collets | Description: Collet plastic (PEEK) insulated for hollow shaft, shaft diameter 1/2" (12.7 mm), outer diameter 5/8" (15.875 mm)
MWS120-12N1IF18x00
Measuring wheel encoders | MWS120 | MWS120-12N1IF18x00 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 10 V DC ... 30 V DC, EtherNet/IP™ | Supply voltage: 10 V DC ... 30 V DC | Mounted encoder: AFS60 EtherNet/IP, AFS60A-S4IB262144, 1055364 | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial
DFS60B-S1EA01024
Incremental encoders | DFS60 | DFS60B-S1EA01024 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024
DFS60B-BHEK00100
Incremental encoders | DFS60 | DFS60B-BHEK00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 100
DFS60E-BDEC00512
Incremental encoders | DFS60 | DFS60E-BDEC00512 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 512
WL12-3P2451
Photoelectric sensors | W12-3 | WL12-3P2451 | Sensing range max.: 0 m ... 2 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12
YF2A13-020VB1M2A13
Connectors and cables | Sensor-actuator cables | YF2A13-020VB1M2A13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, straight, A-coded | Connection type head B: Male connector, M12, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 3-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DAXTVN-1086RA1B0P00M01
Linear encoders | DAX | DAXTVN-1086RA1B0P00M01 | Design: DAX Threaded | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 1,086 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 50 mm / 60 mm | Magnet type: Ring magnet MAG-O-255-01 | Thread offset: Without thread offset | Thread shape: 3/4"-16UNF
VL180-2F32331P06
Photoelectric sensors | V180 | VL180-2F32331P06 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Reflector PL20A, fastening nuts (2 x), 20 pieces package
IHM04-0B8PSVT0S
Inductive proximity sensors | IMM | IHM04-0B8PSVT0S | Housing: Standard design | Sensing range Sn: 0.8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Visual adjustment indicator
DBS60E-B6FJ00100
Incremental encoders | DBS60 | DBS60E-B6FJ00100 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
KUP-0606-S
Shaft adaptation | Shaft couplings | KUP-0606-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Cross-slotted coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub
DFS60B-THEC00008
Incremental encoders | DFS60 | DFS60B-THEC00008 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 8
L21S-11MA1A
Safety light-beam sensors | L21 | L21S-11MA1A | System part: Sender | Safety level: PL c, SIL 1, Type 2 | Scanning range: 7 m | Diameter: M18 | Light source: LED | Type of light: Visible red light | Optical axis: Radial | Connection type: Male connector M12, 4-pin
