Търсене в каталога
41538 резултата за "SICK" · стр. 303/2077
DBS60E-RBEPC1024
Incremental encoders | DBS60 | DBS60E-RBEPC1024 | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin

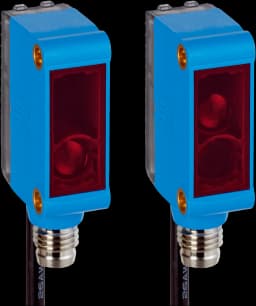

GSE6-CA021K00
Automation light grids | FlexChain | GSE6-CA021K00 | Device version: FlexChain Guest | Operating range: 15 m | Length of cable: 0.5 m
IHM03-0B6PSVR8S
Inductive proximity sensors | IMM | IHM03-0B6PSVR8S | Housing: Standard design | Sensing range Sn: 0.6 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.2 m | Special features: Visual adjustment indicator
IMS12-08NNOVU2S
Inductive proximity sensors | IMS | IMS12-08NNOVU2S | Special applications: Mobile machines, Zones with coolants and lubricants, Difficult application conditions | Special features: Resistant against coolant lubricants, Temperature resistance
DFS25A-A4BAD005000
Incremental encoders | DFS2x | DFS25A-A4BAD005000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 8 V ... 30 V, HTL, Push pull, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 5,000
SP set for Outdoor Pro Rear system plug
System plugs and extension modules | System plugs LMS5xx | SP set for Outdoor Pro Rear system plug
AFM60A-TFAK262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TFAK262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m
PBT-RB1X0SN1SS0VMC0Z
Pressure sensors | PBT | PBT-RB1X0SN1SS0VMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: M12
ZLD18-4FR4A8
Photoelectric sensors | Z18 Simple Sense | ZLD18-4FR4A8 | Communication interface: - | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: PNP, Dark switching | Switching output Q2: PNP, Health output | Connection type: Male connector M12, 4-pin
RFA630-101
Antennas | RFID antennas | RFA630-101 | Carrier frequency: 902 MHz ... 928 MHz | Dimensions (L x W x H): 239 mm x 239 mm x 65 mm
MLG30N-1770H10501
Automation light grids | MLG-2 | MLG30N-1770H10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 30 mm | Operating range: 5 m | Detection height: 1,770 mm | Length of cable: 0.22 m, 0.21 m | Response time: 5.9 ms | Software feature (default setting - see technical data/features): 01
LFP1600-G1BMB
Level sensors | LFP Inox | LFP1600-G1BMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,600 mm | Probe type: Rod probe in hygienic design | Remote amplifier: Yes, length of cable 1 m | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +180 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted part
DFS60B-TDAK00400
Incremental encoders | DFS60 | DFS60B-TDAK00400 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 400
DBS60E-R5FPC1024
Incremental encoders | DBS60 | DBS60E-R5FPC1024 | Mechanical design: Through hollow shaft 12 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-B2FQC1024
Incremental encoders | DBS60 | DBS60E-B2FQC1024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
Stand mount
Mounting systems | Assembly accessories | Stand mount | Description: Tripod mount
SFS60-HLKB2K02
Motor feedback systems | SFS/SFM60 | SFS60-HLKB2K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
DFS25A-A2C1C002048
Incremental encoders | DFS2x | DFS25A-A2C1C002048 | Mechanical design: Solid shaft Square flange 3/8″ x 19 mm (With flat) | Communication interface: 8 V ... 30 V, TTL, RS-422, non programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
DFS60E-S1CB00500
Incremental encoders | DFS60 | DFS60E-S1CB00500 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 500
DFS60B-BBCA00500
Incremental encoders | DFS60 | DFS60B-BBCA00500 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500
