41538 резултата за "SICK" · стр. 297/2077
WFM120-120P311
Fork sensors | WFM | WFM120-120P311 | Adjustment: None | Light source: LED | Type of light: Visible red light | Fork width/depth: 120 mm, 124 mm | Switching output: PNP | Switching mode: Light switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 4 kHz | Response time: ≤ 125 µs | Enclosure rating: IP67
AFS60S-SJSI262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SJSI262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, axial, 0.5 m
PBT-RB100SG1SSNULA0Z
Pressure sensors | PBT | PBT-RB100SG1SSNULA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 5 V, 3-wire | Connection type:
DAXTAN-0555RA1J0300E00
Linear encoders | DAX | DAXTAN-0555RA1J0300E00 | Design: DAX Threaded | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 555 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 50 mm / 63 mm | Magnet type: Ring magnet MAG-O-330-01 | Thread offset: With thread offset | Thread shape: M18 x 1.5
GSE20G-1IRC217GZZZ
Photoelectric sensors | G20 | GSE20G-1IRC217GZZZ | Sensing range min. / max.: 0 m / 120 m | Functional principle: Through-beam photoelectric sensor | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
DBS36E-S3EM00256
Incremental encoders | DBS36/50 | DBS36E-S3EM00256 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 256
AFS60S-SGSJ262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SGSJ262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 0.5 m
DAXLAN-0120BA080000D00
Linear encoders | DAX | DAXLAN-0120BA080000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 120 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
AFM60B-S1AL016384
Absolute encoders | AFS/AFM60 SSI | AFM60B-S1AL016384 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 3 m
DBS60E-R5FQD1024
Incremental encoders | DBS60 | DBS60E-R5FQD1024 | Mechanical design: Through hollow shaft 12 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
IMI12-04BPOVC0S
Inductive proximity sensors | IMI | IMI12-04BPOVC0S | Special applications: Zones with coolants and lubricants, Difficult application conditions | Special features: Sensing face made of stainless steel V2A, Resistant against coolant lubricants
HTB18-P4A2BAD02
Photoelectric sensors | H18 Sure Sense | HTB18-P4A2BAD02 | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: None | Potentiometer, left: Non

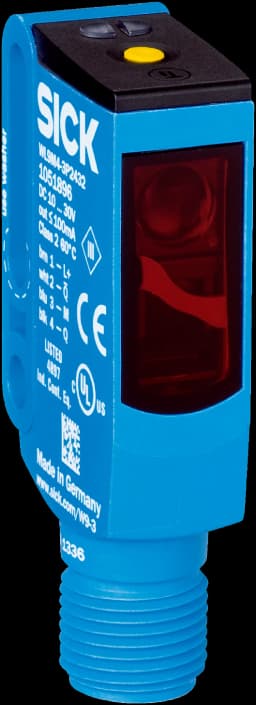

WL9M4-3P2432
Photoelectric sensors | W9 | WL9M4-3P2432 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Teach-in button | Communication interface: -
PBT-RBX10SG1SENVMC0Z
Pressure sensors | PBT | PBT-RBX10SG1SENVMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection ty
IHM06-03BPSVT0S
Inductive proximity sensors | IMM | IHM06-03BPSVT0S | Housing: Standard design | Sensing range Sn: 3 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Visual adjustment indicator, triple sensing range
HSE18L-P1G5AA
Photoelectric sensors | H18 Sure Sense | HSE18L-P1G5AA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 60 m | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Cable open
HL18-P4B3BA
Photoelectric sensors | H18 Sure Sense | HL18-P4B3BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right
DFS60B-BHUA05000
Incremental encoders | DFS60 | DFS60B-BHUA05000 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
AFS60S-BJKC262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BJKC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 5/8″ (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M12, 12-pin, radial
KTX-WBN114225AZZZZ
Contrast sensors | KTX | KTX-WBN114225AZZZZ | Light source: LED | Communication interface: IO-Link | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: N-point-teach-in | Housing material: Plastic
