Търсене в каталога
41538 резултата за "SICK" · стр. 290/2077
WTB4SL-3P3261
Photoelectric sensors | W4 | WTB4SL-3P3261 | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Potentiometer | Housing: Rectangular
PBT-RB100SR1SS0VMC0Z
Pressure sensors | PBT | PBT-RB100SR1SS0VMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: R ¼ (ISO 7) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection typ
WTT12L-B3547
Laser distance sensors | WTT12 PowerProx | WTT12L-B3547 | Product version: PowerProx Precision | Sensing range max.: 50 mm ... 1,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Cable with plug M12, 5-pin, 0.3 m | Analog output: - | Communication interface: -
ZSE18-4AB4A3
Photoelectric sensors | Z18 Simple Sense | ZSE18-4AB4A3 | Communication interface: - | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 17 m | Light source, light type: LED, Infrared light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Male connector M12, 4-pin
PBST-RB010SG1SSNQMA0Z
Pressure sensors | PBST | PBST-RB010SG1SSNQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4
DBS60E-TBAK01000
Incremental encoders | DBS60 | DBS60E-TBAK01000 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

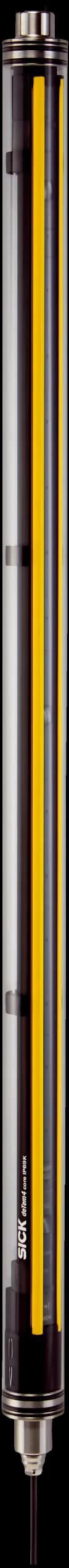

M4C-EB03400A10
Safety light-beam sensors | deTem | M4C-EB03400A10 | Product version: deTem4 Core IP69K | Functional principle: Sender/receiver | System part: Receiver | Application: Areas with special hygiene requirements | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 15.5 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Connecting cable, 5-wire | Integrated laser alignment aid: no | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Receiver
WL24-2B230
Photoelectric sensors | W24 | WL24-2B230 | Sensing range max.: 0 m ... 22 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN, PNP | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
DFS60B-TGCC02500
Incremental encoders | DFS60 | DFS60B-TGCC02500 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,500
PBT-RM4X0AG4SSSAMA0Z
Pressure sensors | PBT | PBT-RM4X0AG4SSSAMA0Z | Pressure type: Gauge pressure | Pressure unit: MPa | Measuring range: 0 MPa ... 4 MPa | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connec
DFS60B-BDCA03600
Incremental encoders | DFS60 | DFS60B-BDCA03600 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 3,600
GL6L-P3211
Photoelectric sensors | G6 | GL6L-P3211 | Sensing range min. / max.: 0.08 m / 12 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
MAX48A-32C7FFE1960
Linear encoders | MAX | MAX48A-32C7FFE1960 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Male connector, M12 type L (24x24 mm), 5-pin | Measuring range: 0 mm ... 1,960 mm
AFM60S-SFSU262144
Safety encoders | AFS/AFM60S Pro | AFM60S-SFSU262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, axial, 10 m
DGS80B-TSHC05000
Incremental encoders | DGS80/90 | DGS80B-TSHC05000 | Mechanical design: Through hollow shaft 30 mm (Front clamp) | Communication interface: 5 V ... 30 V, TTL, RS-422, non programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
SAS4-F028P3PS2T00
Automation light grids | SLG | SAS4-F028P3PS2T00 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 280 mm | Response time: 19 ms
HSE18-P4A2BD
Photoelectric sensors | H18 Sure Sense | HSE18-P4A2BD | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Off delay, adjustable: 0 ... 2 s | Potentiometer, left: N
GRL18SG-E233Z
Photoelectric sensors | GR18 | GRL18SG-E233Z | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
TMS22E-PKH080
Inertial sensors | TMS/TMM22 | TMS22E-PKH080 | Number of axis: 1 | Measuring range: 80° | Resolution: ≤ 0.03° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
PBT-CB6X0AG1SSNAMA0Z
Pressure sensors | PBT | PBT-CB6X0AG1SSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection
