Търсене в каталога
41538 резултата за "SICK" · стр. 285/2077
VL12-2P132
Photoelectric sensors | V12 | VL12-2P132 | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: None | Communication interface: -
YF8U14-100UA3M2A14
Connectors and cables | Sensor-actuator cables | YF8U14-100UA3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 10 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DAXLON-0750B40D0001900
Linear encoders | DAX | DAXLON-0750B40D0001900 | Design: DAX Low Profile | Communication interface: CANopen | Baud rate: 1,000 kbit/s | Node ID: 7Fh (127) | Connection type: Male connector, M12, 5-pin | Resolution: 10 µm | Measurement range: 0 mm ... 750 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01

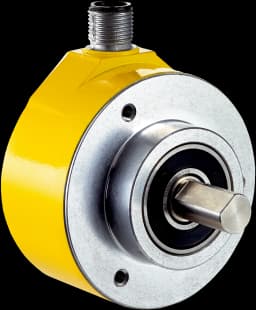

AFM60S-SHKC262144
Safety encoders | AFS/AFM60S Pro | AFM60S-SHKC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M12, 12-pin, radial
WTB26P-3B111120ZZZ
Photoelectric sensors | W26 | WTB26P-3B111120ZZZ | Sensing range min. / max.: 30 mm / 1,600 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with Q7 male connector, 7-pin, DC-coded, 298 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-T
DAXLAN-0400BA0C0000E00
Linear encoders | DAX | DAXLAN-0400BA0C0000E00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 400 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01

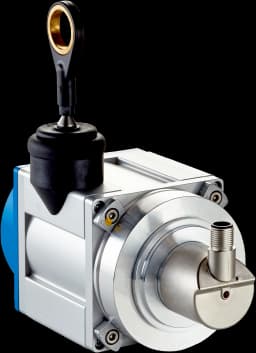

BTF08-J1QM0364
Wire draw encoders | HighLine | BTF08-J1QM0364 | Measuring range: 0 m ... 3 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-S3JC014x12, 1120251 | Mounted mechanic: MRA-F080-103D2, 6030125 | Programmable/configurable: yes
DBS60E-S4AQ00005
Incremental encoders | DBS60 | DBS60E-S4AQ00005 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 5 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
PBT-AB1X0SG2SS0VMC0Z
Pressure sensors | PBT | PBT-AB1X0SG2SS0VMC0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Conne
GTB2F-E1311
Photoelectric sensors | G2 | GTB2F-E1311 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -
DBS60E-TJFA01024
Incremental encoders | DBS60 | DBS60E-TJFA01024 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-BHCB08192
Incremental encoders | DFS60 | DFS60B-BHCB08192 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 8,192
ARS60-F4M03600
Absolute encoders | ARS60 | ARS60-F4M03600 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 3,600 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 5 m
AFM60A-TGAL262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TGAL262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 3 m
DBS60E-RACPD1024
Incremental encoders | DBS60 | DBS60E-RACPD1024 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
HTB18-P3B2BB
Photoelectric sensors | H18 Sure Sense | HTB18-P3B2BB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Sensing range | Potentiometer, lef
DBS60E-RHEQD1024
Incremental encoders | DBS60 | DBS60E-RHEQD1024 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TFCQ00100
Incremental encoders | DBS60 | DBS60E-TFCQ00100 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DAXTVN-0254CA0K0R00100
Linear encoders | DAX | DAXTVN-0254CA0K0R00100 | Design: DAX Threaded | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 254 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 50 mm / 60 mm | Magnet type: C-magnet MAG-C-330-01 | Thread offset: With thread offset | Thread shape: 3/4"-16UNF
DBS60E-BDECD1024
Incremental encoders | DBS60 | DBS60E-BDECD1024 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
