41538 резултата за "SICK" · стр. 278/2077
DFS60E-S1CA01024
Incremental encoders | DFS60 | DFS60E-S1CA01024 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024
SGS4-F108P3TS2T01
Automation light grids | SLG | SGS4-F108P3TS2T01 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 1,080 mm | Response time: 57 ms
DFS60B-BDAA05000
Incremental encoders | DFS60 | DFS60B-BDAA05000 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
PBS2-AB2X5SN1SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-AB2X5SN1SS0Q5A0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal:
DBS60E-THCN04096
Incremental encoders | DBS60 | DBS60E-THCN04096 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 4,096 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-BHEC00360
Incremental encoders | DFS60 | DFS60B-BHEC00360 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 360
AFS60S-TBKK262144
Safety encoders | AFS/AFM60S Pro | AFS60S-TBKK262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 8 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 1.5 m
MLG10A-1340I10501
Automation light grids | MLG-2 | MLG10A-1340I10501 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,340 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 11.7 ms | Software feature (default setting - see technical data/features): 01
DSL-127SG1M5E25KM0
Connectors and cables | Other connectors and cables | DSL-127SG1M5E25KM0 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight | Connection type head B: Male connector, M12, 8-pin, straight | Signal type: Sensor/actuator cable | Cable: 1.5 m, 7-wire, PUR, halogen-free
IMB12-08NNPVC0S
Inductive proximity sensors | IMB | IMB12-08NNPVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: NPN | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance
IMB12-08NPSVUDKS25
Inductive proximity sensors | IMB | IMB12-08NPSVUDKS25 | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 4.5 m | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance

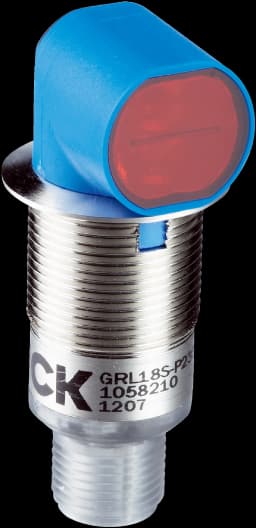

GRL18SG-F233X
Photoelectric sensors | GR18 | GRL18SG-F233X | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
C4C-SX10530A10000, C4C-EX10530A10000
Safety light curtains | deTec | C4C-SX10530A10000, C4C-EX10530A10000 | Product version: deTec4 Core Ex II 3GD | System part: Pair | Application: Explosive areas | Ex-approvals: Ex II 3G/3D | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,050 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, “Notes fo
WL9G-3P2234
Photoelectric sensors | W9 | WL9G-3P2234 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Adjustment: Wire/pin, Teach-in button | Communication interface: -
DFS60B-S4CK02500
Incremental encoders | DFS60 | DFS60B-S4CK02500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500
DBS60E-TGEP00100
Incremental encoders | DBS60 | DBS60E-TGEP00100 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-S1EA08192
Incremental encoders | DFS60 | DFS60B-S1EA08192 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 8,192
TBS-1QSG10506NE
Temperature sensors | TBS | TBS-1QSG10506NE | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ¼ A | Insertion length/diameter of probe: 50 mm / 6 mm | Seal: NBR | Output signal: IO-Link/PNP + PNP + 4 mA ... 20 mA | Connection type: Round connector M12 x 1, 5-pin | Enclosure rating: IP65, IP67 | Communication interface: IO-Link
DFS60B-S4CM01200
Incremental encoders | DFS60 | DFS60B-S4CM01200 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,200

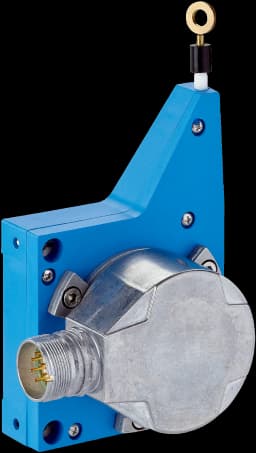

BCG08-A1AM0318
Wire draw encoders | EcoLine | BCG08-A1AM0318 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AA004096, 1037438 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no
