IMX12-09BNOZU2S
Inductive proximity sensors | IMX | IMX12-09BNOZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 9 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator
DFS60B-S1AA08000
Incremental encoders | DFS60 | DFS60B-S1AA08000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 8,000
CMB30-25NPPEW2SA00
Capacitive proximity sensors | CMB | CMB30-25NPPEW2SA00 | Sensing range Sn: 0 mm ... 25 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Connection type: Cable, 4-wire | Switching output: PNP | Output function: Complementary | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task base logics
AHS36I-S1JC016384
Absolute encoders | AHS/AHM36 | AHS36I-S1JC016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (With flat) | Communication interface: SAE J1939, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool | Encoder material / Enclosure rating: Stainless steel 1,4305 / IP67, IP69K
MLG05W-0100B12599
Automation light grids | MLG-2 WebChecker | MLG05W-0100B12599 | Device version: Web guiding | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 145 mm | Measuring field width detail (connection side/medium range/head side): 145 mm / 0 mm / 0 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 99
RSB1-0310B104103HK4CZZZP0A
Photoelectric sensors | Roller Sensor Bar | RSB1-0310B104103HK4CZZZP0A | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 310 mm | Number of beams: 2 | Beam separation: 104 mm | Switching output: PNP: open collector | Switching mode: Light/dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 300 mm | Light source: LED | Type of light: I
DBS60E-TGEQD1024
Incremental encoders | DBS60 | DBS60E-TGEQD1024 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DFS60B-BEAA02048
Incremental encoders | DFS60 | DFS60B-BEAA02048 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,048
MLG10N-1190C10501
Automation light grids | MLG-2 | MLG10N-1190C10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,190 mm | Length of cable: 0.22 m, 0.21 m | Response time: 10.6 ms | Software feature (default setting - see technical data/features): 01
GRL18S-P2338
Photoelectric sensors | GR18 | GRL18S-P2338 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (2 x)
Mounting kit 1
Mounting systems | Brackets | Mounting kit 1 | Description: Angle bracket for RMS1000, RMS2000 | Dimensions (W x H x L): 125.5 mm x 46 mm x 96 mm | Material: Stainless steel | Details: Stainless steel 1.4404 | Suitable for: RMS2000, RMS2000

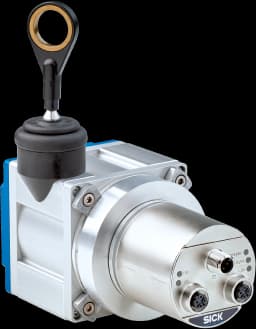

BTF13-N1BM3077
Wire draw encoders | HighLine | BTF13-N1BM3077 | Measuring range: 0 m ... 30 m | Communication interface: PROFINET | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: ANM58 PROFINET, ANM58B-SANNB0000101000XX018X16, 1145910 | Mounted mechanic: MRA-F130-130D1, 6028629 | Programmable/configurable: yes
DFS60E-S4AK01024
Incremental encoders | DFS60 | DFS60E-S4AK01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
CLV621-0120
Fixed mount barcode scanners | CLV62x | CLV621-0120 | Optical focus: Fixed focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Rotary angle variant single port (12-pin) | Max. reading distance: 730 mm | Code resolution: 0.35 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
DBS60E-TCFCC1024
Incremental encoders | DBS60 | DBS60E-TCFCC1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
MZT7-03VNS-KQ0
Cylinder sensors | MZT7 | MZT7-03VNS-KQ0 | Connection type: Cable with plug, M12, 3-pin | Output function: NO | Overrun distance, typ.: 10 mm | Enclosure rating: IP65, IP67 | Supply voltage: 10 V DC ... 30 V DC | Electrical wiring: DC 3-wire
AHS36A-BDJJ016384
Absolute encoders | AHS/AHM36 | AHS36A-BDJJ016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: SAE J1939, programmable | Connection type: Cable, 5-wire, universal, 0.5 m | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool

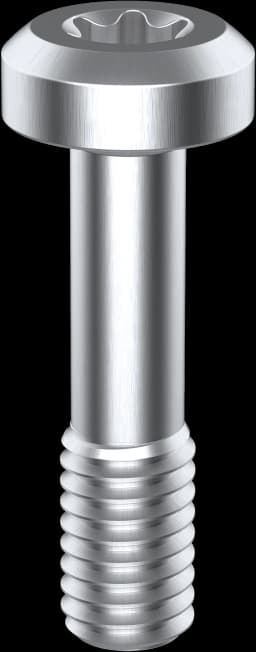

BEF-MK-S19
Mounting systems | Assembly accessories | BEF-MK-S19 | Description: Fixing screws M3*12 for SEK/SEL37 and EES/EEM37 | Packing unit: 200 pieces
GSE6SI-1GE1217EZZZ
Photoelectric sensors | G6 | GSE6SI-1GE1217EZZZ | Sensing range min. / max.: 0 m / 20 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN: open collector | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Type of light: Infrared light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
ARS60-F4K02048
Absolute encoders | ARS60 | ARS60-F4K02048 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 2,048 (11 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
