Търсене в каталога
41538 резултата за "SICK" · стр. 260/2077
IMG30-15BPOZU2S
Inductive proximity sensors | IMG | IMG30-15BPOZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 15 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Resistant against coolant lubricants, Temperature resistance
AFS60I-BFPM262144
Absolute encoders | AFS/AFM60 SSI | AFS60I-BFPM262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
LFV200-XXHGPTPM
Level sensors | LFV200 | LFV200-XXHGPTPM | Communication interface: - | Process connection: G ¾, DIN 3852-A PN 64 / 316L, Ra < 0,8 µm | Probe length: 67 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP67
IHM03-01BPSVR9KS01
Inductive proximity sensors | IMM | IHM03-01BPSVR9KS01 | Housing: Short-body | Sensing range Sn: 1 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: 2 x cable with 1 x male connector, M8, 4-pin, 0.3 m | Special features: Visual adjustment indicator | Special characteristic: Twin sensor
DFS60E-BDEC00500
Incremental encoders | DFS60 | DFS60E-BDEC00500 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 500
YF8U13-015UB1XLEBX
Connectors and cables | Other connectors and cables | YF8U13-015UB1XLEBX | Description: Sensor/actuator cable, ferrule, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 1.5 m, 3-wire, PUR, halogen-free | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
DBS60E-B4AP00100
Incremental encoders | DBS60 | DBS60E-B4AP00100 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
LFV230-XXHRMTPM0150
Level sensors | LFV200 | LFV230-XXHRMTPM0150 | Communication interface: - | Process connection: Conical coupling DN 40 acc.To DIN 11851 with union nut (PN 40, 316L, Ra < 0.8µm) | Probe length: 150 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display:
AFM60B-S4KA032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-S4KA032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial

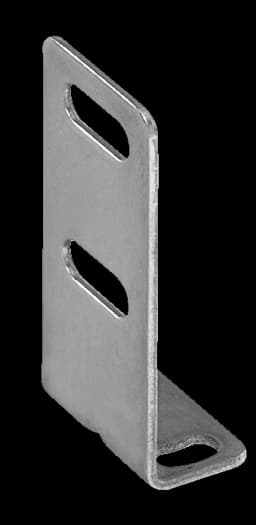

BEF-W2S-A
Mounting systems | Brackets | BEF-W2S-A | Description: Mounting bracket for floor mounting | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware | Suitable for: W2S-2

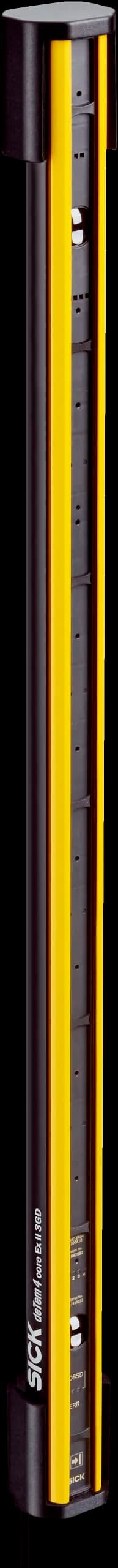

M4C-SX0340LA10
Safety light-beam sensors | deTem | M4C-SX0340LA10 | Product version: deTem4 Core Ex II 3GD | Functional principle: Sender/receiver | System part: Sender | Application: Explosive areas | Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc, ATEX for dust: II 3D Ex tc IIIC T135°C Dc | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 17 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no |
WT12L-2B550A01
Photoelectric sensors | W12-2 Laser | WT12L-2B550A01 | Sensing range max.: 30 mm ... 200 mm | Functional principle: Photoelectric proximity sensor | Switching output: PNP, NPN | Switching mode: Light switching, Dark switching | Connection type: Plug, M12, 5-pin | Light source: Laser | Type of light: Visible red light | Laser class: 2 | Adjustment: Potentiometer | Housing: Rectangular | Focus position: 100 mm
DBS60E-TFAQD1024
Incremental encoders | DBS60 | DBS60E-TFAQD1024 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
YG2A13-030UA1M8U13
Connectors and cables | Sensor-actuator cables | YG2A13-030UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, angled, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 3 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
TDC-E210AC
Edge computing devices | Telematic Data Collector | TDC-E210AC | Operating system: Linux4Microservices, based on Linux Yocto Project 3.1.4 (Dunfell) | Connectivity: Mobile communication (4G), WLAN, WPAN, LAN | Network coverage: USA, Canada, Taiwan | Items supplied: TDC-E210AC with mobile communication (without data flow) including connecting cables and operating instructions
DBS60E-RHEP00100
Incremental encoders | DBS60 | DBS60E-RHEP00100 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
YG2A28-050UA6XLEAX
Connectors and cables | Sensor-actuator cables | YG2A28-050UA6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DFS60B-S1EC10000
Incremental encoders | DFS60 | DFS60B-S1EC10000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 10,000
DUS60E-RJKF0ACA
Incremental encoders | DUS60 | DUS60E-RJKF0ACA | Mechanical design: Through hollow shaft 5/8″ (rear clamping) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 4-pin, universal | Output function: A and B output | Flange type / stator coupling: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm | Anti-dither: no
DBS60E-RACAD1024
Incremental encoders | DBS60 | DBS60E-RACAD1024 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
