IQ10-03BPSKQ8S
Inductive proximity sensors | IQB | IQ10-03BPSKQ8S | Sensing range Sn: 3 mm | Installation type: Flush | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug, M12, 4-pin, 0.2 m
SFM60-H1BT0K02
Motor feedback systems | SFS/SFM60 | SFM60-H1BT0K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, M12, 8-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
AFS60S-S4KS262144
Safety encoders | AFS/AFM60S Pro | AFS60S-S4KS262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, axial, 3 m
DAXSVN-0800BA080900100
Linear encoders | DAX | DAXSVN-0800BA080900100 | Design: DAX Slider | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 800 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
DBS60E-B3EPD1024
Incremental encoders | DBS60 | DBS60E-B3EPD1024 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
FFUC10-1G1IO
Flow sensors | FFU | FFUC10-1G1IO | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: G ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
MWS120-2DQ4NR18X16
Measuring wheel encoders | MWS120 | MWS120-2DQ4NR18X16 | Measuring wheel surface: O-ring NBR70 | Communication interface: 10 V ... 32 V, PROFINET | Supply voltage: 10 V ... 32 V | Mounted encoder: ANM58 PROFINET, ANM58B-FENNA0000301000XX018X16, 1146130 | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial
GTB6L-N6211
Photoelectric sensors | G6 | GTB6L-N6211 | Sensing range min. / max.: 10 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 336 mm | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
KTM-WN11182P
Contrast sensors | KTM | KTM-WN11182P | Light source: LED | Communication interface: - | Sensing distance: 12.5 mm | Switching output: NPN | Light spot size: 1.6 mm x 9.5 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Cable with plug, M12, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
MLG10N-2840N10501
Automation light grids | MLG-2 | MLG10N-2840N10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 2,840 mm | Length of cable: 0.22 m, 0.21 m | Response time: 23.3 ms | Software feature (default setting - see technical data/features): 01
YG8U14-030UA3XLEAX
Connectors and cables | Sensor-actuator cables | YG8U14-030UA3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
HL18-P4A3BAA00
Photoelectric sensors | H18 Sure Sense | HL18-P4A3BAA00 | Device version: IO-Link | Communication interface: IO-Link | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiomete
WTB2S-2N3160
Photoelectric sensors | W2 | WTB2S-2N3160 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
AFS60S-BDKN262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BDKN262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 10 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 10 m
GRTB18S-P2421V
Photoelectric sensors | GR18 | GRTB18S-P2421V | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (2 x)

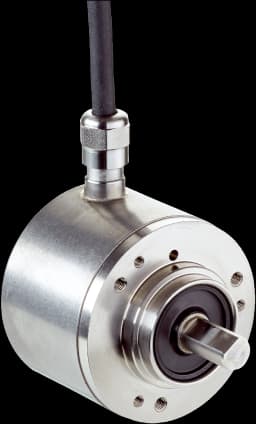

AFS60I-S4PK262144
Absolute encoders | AFS/AFM60 SSI | AFS60I-S4PK262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60E-THAJC1024
Incremental encoders | DBS60 | DBS60E-THAJC1024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
PBSH-RB016ST2S0D5A0Z
Pressure sensors | PBS Hygienic | PBSH-RB016ST2S0D5A0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 2" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 2 x PNP + 4 mA ... 20 mA | Connection t
DFS25A-A4D1L005000
Incremental encoders | DFS2x | DFS25A-A4D1L005000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 8 V ... 30 V, Open Collector, non programmable | Connection type: Cable, 9-wire, radial, 1.5 m | Pulses per revolution: 5,000
DBS50E-S5EM01024
Incremental encoders | DBS36/50 | DBS50E-S5EM01024 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,024
