41538 резултата за "SICK" · стр. 253/2077
MLG20S-2080D10501
Automation light grids | MLG-2 | MLG20S-2080D10501 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 2,080 mm | Length of cable: 0.22 m, 0.22 m | Response time: 12.7 ms | Software feature (default setting - see technical data/features): 01
PBS2-CB1X6SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-CB1X6SG1SSDQ5A0Z | Pressure type: Compound pressure | Pressure unit: bar psi | Measuring range: –1 bar ... 0.6 bar, –14.5 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output si
DGS80B-TSHK04096
Incremental encoders | DGS80/90 | DGS80B-TSHK04096 | Mechanical design: Through hollow shaft 30 mm (Front clamp) | Communication interface: 5 V ... 30 V, TTL, RS-422, non programmable | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 4,096 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
AFS60S-SGSM262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SGSM262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 5 m
DOL-1212-W05MAC1
Connectors and cables | Sensor-actuator cables | DOL-1212-W05MAC1 | Description: SSI, shielded | Connection type head A: Female connector, M12, 12-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: SSI | Cable: 5 m, 12-wire, PUR, halogen-free | Note: Drag chain use | Application: Zones with oils and lubricants
MLG30N-1170P10502
Automation light grids | MLG-2 | MLG30N-1170P10502 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 30 mm | Operating range: 5 m | Detection height: 1,170 mm | Length of cable: 0.22 m, 0.21 m | Response time: 4.4 ms | Software feature (default setting - see technical data/features): 02
YN2D24-200PN1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-200PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Flying leads | Signal type: Ethernet, PROFINET | Cable: 20 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
MLG30A-3120I10801
Automation light grids | MLG-2 | MLG30A-3120I10801 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 30 mm | Operating range: 8.5 m | Detection height: 3,120 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 9.4 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S4CC03120
Incremental encoders | DFS60 | DFS60B-S4CC03120 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 3,120
PBS2-RB1K0SG1SSDLMA0Z
Pressure sensors | PBS plus | PBS2-RB1K0SG1SSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1,000 bar, 0 psi ... 14,504 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output sig

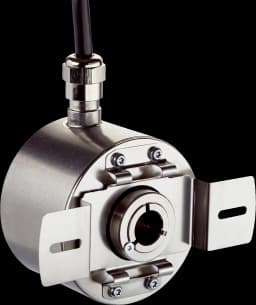

DBS60I-BAFM01000
Incremental encoders | DBS60 | DBS60I-BAFM01000 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
YG2A15-200UB5XLEAX
Connectors and cables | Sensor-actuator cables | YG2A15-200UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
AFS60E-TDAC002048
Absolute encoders | AFS/AFM60 SSI | AFS60E-TDAC002048 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 2,048 (11 bit) | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial
DFS60B-BEPM10000
Incremental encoders | DFS60 | DFS60B-BEPM10000 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 10,000
YF2A65-100UE2XLEAX
Connectors and cables | Power cables | YF2A65-100UE2XLEAX | Description: Power, shielded | Connection type head A: Female connector, M12, 5-pin, straight | Connection type head B: Flying leads | Signal type: Power | Cable: 10 m, 5-wire, PUR, halogen-free | Connection systems: Flying leads | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation, seawater resistant
DBS60E-BAAP00100
Incremental encoders | DBS60 | DBS60E-BAAP00100 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TJAN01024
Incremental encoders | DBS60 | DBS60E-TJAN01024 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
IME30-10BNOZW2K
Inductive proximity sensors | IME | IME30-10BNOZW2K | Housing: Short-body | Sensing range Sn: 10 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m
C4MT-05424ABB03DE0
Safety light curtains | miniTwin | C4MT-05424ABB03DE0 | Usage: miniTwin4 as a standalone device, miniTwin4 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 24 mm | Scanning range: 5 m | Protective field height: 540 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso

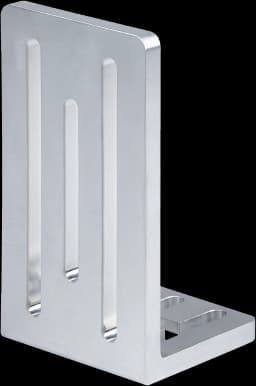

BEF-WF-MWS-NCV
Mounting systems | Brackets | BEF-WF-MWS-NCV | Description: Mounting bracket for MWS120 measuring wheel system and SPEETEC 1D laser surface motion sensors | Suitable for: MWS120, NCV50 (in conjunction with BEF-WN-NCV50 mounting bracket part no.: 2117456)
