Търсене в каталога
41538 резултата за "SICK" · стр. 252/2077
DAXTAN-0310RA1J0J00V01
Linear encoders | DAX | DAXTAN-0310RA1J0J00V01 | Design: DAX Threaded | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 310 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 30 mm / 60 mm | Magnet type: Ring magnet MAG-O-330-01 | Thread offset: Without thread offset | Thread shape: M18 x 1.5
BEF-AP-EPA
Mounting systems | Brackets | BEF-AP-EPA | Description: Inspector standard bracket for mounting external ICL illumination or an external standard filter | Items supplied: Including 4 Allan screws M3 x 8, 2 Allan screws M4 x 16 and BEF-AP lighting EPA / 4053577
HTE18-B4A2BG
Photoelectric sensors | H18 Sure Sense | HTE18-B4A2BG | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Energetic | Sensing range: 600 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: NPN, Light switching | Potentiometer, right: Sensitivity | Potentiometer, left: Off delay,
DOS-0803-W
Connectors and cables | Field-wireable connectors | DOS-0803-W | Description: Unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection systems: Solder connection | Permitted cross-section: ≤ 0.25 mm²
DBS60E-R8EPD1024
Incremental encoders | DBS60 | DBS60E-R8EPD1024 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
SAS4-S044P3PS1W07
Automation light grids | SLG | SAS4-S044P3PS1W07 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 440 mm | Response time: 57 ms
DAXSAN-0050SA000900D00
Linear encoders | DAX | DAXSAN-0050SA000900D00 | Design: DAX Slider | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 50 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Slide magnet MAG-S-H29-01
DFS60B-THEC05000
Incremental encoders | DFS60 | DFS60B-THEC05000 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000

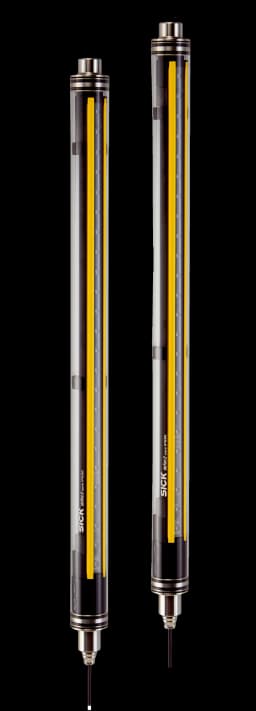

C2C-SB13530A10000, C2C-EB13530A10000
Safety light curtains | deTec | C2C-SB13530A10000, C2C-EB13530A10000 | Product version: deTec2 Core IP69K | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 12.5 m | Protective field height: 1,350 mm | Connection type: Connecting cable, 15 m, flying leads, 5-wire | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15 m, receiver in
LFV230-XXHCNTPM0350
Level sensors | LFV200 | LFV230-XXHCNTPM0350 | Communication interface: - | Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm) | Probe length: 350 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
SLG50S-120SAKB1K01
Automation light grids | FlexChain | SLG50S-120SAKB1K01 | Device version: FlexChain Guest | Optical light exit: Slim | Beam separation: 50 mm | Operating range: 4 m | Detection height: 1,200 mm | Length of cable: 1.5 m
YM2X18-050EG1M2X18
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2X18-050EG1M2X18 | Connection type head A: Male connector, M12, 8-pin, straight, X-coded | Connection type head B: Male connector, M12, 8-pin, straight, X-coded | Signal type: Ethernet, Gigabit Ethernet | Cable: 5 m, 8-wire, PUR, halogen-free | Description: Ethernet, shielded, Gigabit Ethernet | Application: Zones with oils and lubricants
V2D8505R-1MCICXAL2SXXXX
Image-based code readers | Lector85x | V2D8505R-1MCICXAL2SXXXX | Variant: Complete device | Regulatory Model: Z6ARAB | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,464 px x 2,048 px (5 MP) | Illumination color: White | Focal length: 12 mm | Ambient operating temperature: 0 °C ... +50 °C | Communication interface: Ethernet, CAN, Serial, USB
DFS60B-S1CA00512
Incremental encoders | DFS60 | DFS60B-S1CA00512 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 512
DFS60B-S4EM00720
Incremental encoders | DFS60 | DFS60B-S4EM00720 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 720
LL3-LM36150
Fiber-optic sensors | Fiber-optic cables | LL3-LM36150 | Functional principle: Proximity system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 150 mm | Fiber material: Glass | Jacket material: Plastic | Fiber head material: Aluminum
DFS60E-BHAA01250
Incremental encoders | DFS60 | DFS60E-BHAA01250 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,250
DFS60E-S4AA00500
Incremental encoders | DFS60 | DFS60E-S4AA00500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500
KTX-WS91142242ZZZZ
Contrast sensors | KTX | KTX-WS91142242ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: PNP, NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Male connector M12, 4-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
KTM-WN11182PS03
Contrast sensors | KTM | KTM-WN11182PS03 | Light source: LED | Communication interface: - | Sensing distance: 12.5 mm | Switching output: NPN | Light spot size: 1.6 mm x 9.5 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Cable with plug, M12, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
