SFS60-H1BB4K02
Motor feedback systems | SFS/SFM60 | SFS60-H1BB4K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M12, 8-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
GRTE18S-N2462V
Photoelectric sensors | GR18 | GRTE18S-N2462V | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)

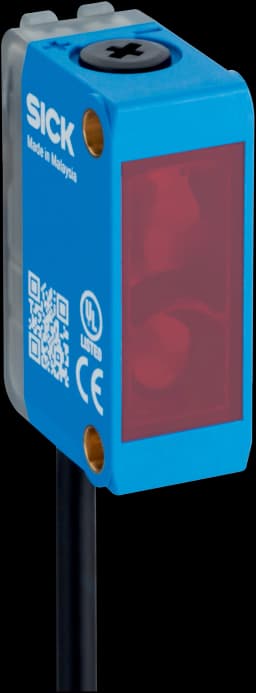

GLD6SP-1GA1217EZZZ
Photoelectric sensors | G6 | GLD6SP-1GA1217EZZZ | Sensing range min. / max.: 0.03 m / 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular

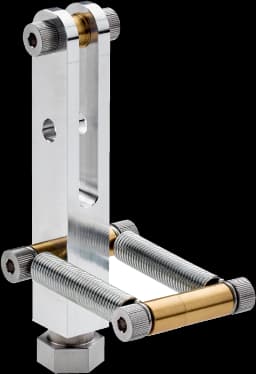

BEF-MWS250-UBM
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS250-UBM | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Mounting bracket for dual wheeled encoder systems, spring tension underbelt yoke mount
AFS60S-BESK262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BESK262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 12 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 1.5 m
DBS60E-R6FCD1024
Incremental encoders | DBS60 | DBS60E-R6FCD1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS50E-S5EN00500
Incremental encoders | DBS36/50 | DBS50E-S5EN00500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 500
YM2A25-050VB6XLEAX
Connectors and cables | Sensor-actuator cables | YM2A25-050VB6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Male connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals

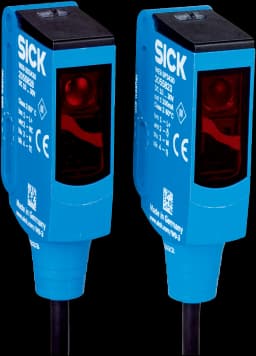

WSE9-3P3230
Photoelectric sensors | W9 | WSE9-3P3230 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 120 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
SLG25S-060FAR11D31
Automation light grids | SLG-2 | SLG25S-060FAR11D31 | Optical light exit: Flat | Beam separation: 25 mm | Operating range: 3.5 m | Detection height: 600 mm | Length of cable: 150 mm
PRO2-N100B25A1
Laser distance sensors | Profiler | PRO2-N100B25A1 | Communication interface: Serial | Digital output: 3 x NPN | Type of analog output: Current output | Measuring range: 75 mm ... 125 mm | Repeatability: 25 µm, 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.3 mm x 32 mm | Housing material: Metal | Connection type: Female connector, HRS, 12-pin (I/O, power supply)

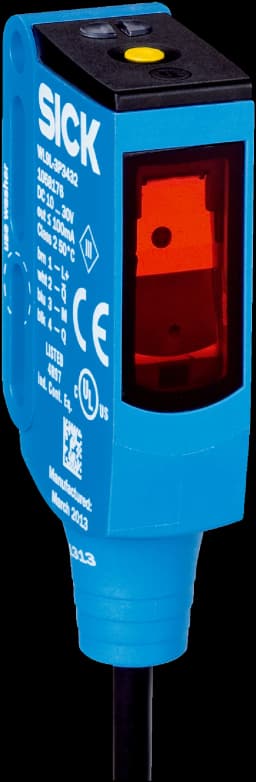

WL9LG-3P1132
Photoelectric sensors | W9 | WL9LG-3P1132 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: Laser | Adjustment: Teach-in button | Laser class: 1 | Communication interface: -
MAX48A-32V20GC0400
Linear encoders | MAX | MAX48A-32V20GC0400 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type L (24x24 mm), 4-pin | Measuring range: 0 mm ... 400 mm | Output signal: 0.25 V DC ... 4.75 V DC
SFM60-HNAB4K02
Motor feedback systems | SFS/SFM60 | SFM60-HNAB4K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
PBS2-ABX60SG2SS0LMA0Z
Pressure sensors | PBS plus | PBS2-ABX60SG2SS0LMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Outp
CLV622-0001
Fixed mount barcode scanners | CLV62x | CLV622-0001 | Optical focus: Fixed focus | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Cable connection variant | Max. reading distance: 200 mm | Code resolution: 0.15 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Plastic | Cold storage applications: no | Enclosure rating: IP65
DFS60B-S4WA07200
Incremental encoders | DFS60 | DFS60B-S4WA07200 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 7,200

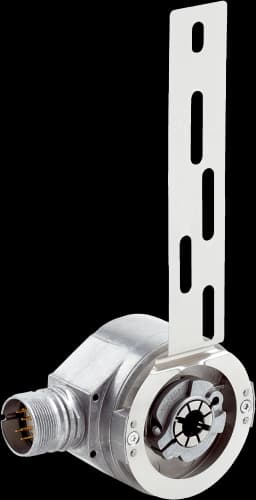

SFM60-HKAB2K02
Motor feedback systems | SFS/SFM60 | SFM60-HKAB2K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
DFS60E-BEAK00360
Incremental encoders | DFS60 | DFS60E-BEAK00360 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 360
C2MT-07214BBC03FE0
Safety light curtains | miniTwin | C2MT-07214BBC03FE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 8 m | Protective field height: 720 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso
