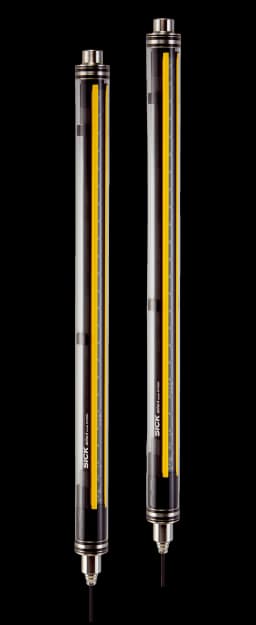

C4C-SB09030A10000, C4C-EB09030A10000
Safety light curtains | deTec | C4C-SB09030A10000, C4C-EB09030A10000 | Product version: deTec4 Core IP69K | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 12.5 m | Protective field height: 900 mm | Connection type: Connecting cable, 15 m, flying leads, 5-wire | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15 m, receiver in IP
LFV230-XASGBTPV0400
Level sensors | LFV200 | LFV230-XASGBTPV0400 | Communication interface: - | Process connection: G ¾ A PN 64 | Probe length: 400 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
DFS60B-BAPL10000
Incremental encoders | DFS60 | DFS60B-BAPL10000 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 10,000
MLG05N-1495E10501
Automation light grids | MLG-2 | MLG05N-1495E10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 5 mm | Operating range: 5 m | Detection height: 1,495 mm | Length of cable: 0.22 m, 0.21 m | Response time: 24.4 ms | Software feature (default setting - see technical data/features): 01
VI55I-WH1441M0
Reflectors and optics | Illuminations | VI55I-WH1441M0 | Description: Integratable lighting, lighting color white, medium, suitable for S-mount and compact C-mount lenses with a focal length of 12 mm, 16 mm and 17.5 mm
RSB1-0200B060070BA4EZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0200B060070BA4EZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 200 mm | Number of beams: 2 | Beam separation: 60 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 1 m | Light source: LED | Type of light: Infrar
DBS60E-S1AQ02048
Incremental encoders | DBS60 | DBS60E-S1AQ02048 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
IMB08-02BNSVR8K
Inductive proximity sensors | IMB | IMB08-02BNSVR8K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.2 m | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
AFS60S-TJSJ262144
Safety encoders | AFS/AFM60S Pro | AFS60S-TJSJ262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 5/8″ (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 0.5 m
DBS60E-R3EQ00100
Incremental encoders | DBS60 | DBS60E-R3EQ00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
PBT-CB1X0SG2SS0AMA0Z
Pressure sensors | PBT | PBT-CB1X0SG2SS0AMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Co

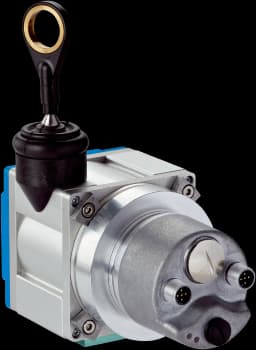

BTF08-P1BM0241
Wire draw encoders | HighLine | BTF08-P1BM0241 | Measuring range: 0 m ... 2 m | Communication interface: PROFIBUS DP | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial | Mounted encoder: A3M60, A3M60B-S1PB013X13, 1051018 | Mounted mechanic: MRA-F080-102D2, 6028625 | Programmable/configurable: yes
LFP1000-E5DMC
Level sensors | LFP Cubic | LFP1000-E5DMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,000 mm | Probe type: Cable probe | Remote amplifier: Yes, length of cable 3.3 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rat
ARS60-F1N32767
Absolute encoders | ARS60 | ARS60-F1N32767 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,767 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 10 m
YF8U13-500VA1XLEAX
Connectors and cables | Sensor-actuator cables | YF8U13-500VA1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 50 m, 3-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
RAY10-KZ3EBLP06
Photoelectric sensors | RAY10 Reflex Array | RAY10-KZ3EBLP06 | Minimum object size: 5 mm | Detection height: 25 mm | Sensing range max.: 0 m ... 1.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system), Reflex Array | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with M8 male connector, 4-pin, 1 m | Light source: PinPoint LED | Adjustment: Potentiometer | Included wit
DBS50E-SKAL01024
Incremental encoders | DBS36/50 | DBS50E-SKAL01024 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,024
BTF13-Q1RM2061
Wire draw encoders | HighLine | BTF13-Q1RM2061 | Measuring range: 0 m ... 20 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 | Mounted mechanic: MRA-F130-120D1, 6028628 | Programmable/configurable: yes
STR1-SAXF0AC8
Safety switches | STR1 | STR1-SAXF0AC8 | Coding: Permanently coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: With T-connector (without diagnostics), with Flexi Loop (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
ARS60-F4U32767
Absolute encoders | ARS60 | ARS60-F4U32767 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,767 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, axial, 10 m
