DFS60B-S4AA02048
Incremental encoders | DFS60 | DFS60B-S4AA02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,048
PICS150-01000 Core 6 I/O w/o add-ons
LiDAR sensors | picoScan100 | PICS150-01000 Core 6 I/O w/o add-ons | Working range: 0.05 m ... 25 m | Scanning range: 25 m at 90% remission factor, 12 m at 10% remission factor | Angular resolution: 0.25°, 0.33°, 1° | Scanning frequency: 15 Hz, 25 Hz | Integrated application: 2D Object Detection | Connection type: 1 “Ethernet” connection, 4-pin M12 female connector, D-coded, 1 “POWER” connection, 12-pin M12 plug, A-coded | System plug: See system plug 2130754 | Variant: Standard (not pre-configu

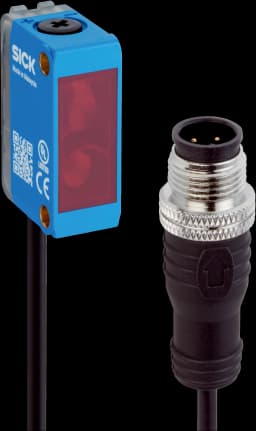

GLD6SP-34E1217EZZZ
Photoelectric sensors | G6 | GLD6SP-34E1217EZZZ | Sensing range min. / max.: 0.03 m / 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN: open collector | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 348 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Re
LL3-TR02
Fiber-optic sensors | Fiber-optic cables | LL3-TR02 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
ARS60-H1R00512
Absolute encoders | ARS60 | ARS60-H1R00512 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 512 (9 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, axial, 1.5 m
IME12-04BPSZWDKS30
Inductive proximity sensors | IME | IME12-04BPSZWDKS30 | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2.5 m
IME18-12NNOZC0S
Inductive proximity sensors | IME | IME18-12NNOZC0S | Housing: Standard design | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin
PBT-RP500SG1SSNAMA0Z
Pressure sensors | PBT | PBT-RP500SG1SSNAMA0Z | Pressure type: Gauge pressure | Pressure unit: psi | Measuring range: 0 psi ... 500 psi | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection typ
MLG30A-0270I10501
Automation light grids | MLG-2 | MLG30A-0270I10501 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 30 mm | Operating range: 5 m | Detection height: 270 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 3.5 ms | Software feature (default setting - see technical data/features): 01
WLG12-G137
Automation light grids | WLG | WLG12-G137 | Beam separation: 12.5 mm | Operating range: 1.5 m | Detection height: 87.5 mm | Length of cable: 2 m | Response time: 0.6 ms
KHT53-XXX00038
Linear encoders | KH53 | KHT53-XXX00038 | System part: Measuring element | Measuring range: 0 m ... 38 m | Code type: Coded
IMB18-08BNOVC0K
Inductive proximity sensors | IMB | IMB18-08BNOVC0K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
LFP2000-G6CMC
Level sensors | LFP Inox | LFP2000-G6CMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 2,000 mm | Probe type: Rod probe in hygienic design | Remote amplifier: Yes, length of cable 2 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +180 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted part
DBS60E-S4AN01024
Incremental encoders | DBS60 | DBS60E-S4AN01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DFS60E-S4EA00150
Incremental encoders | DFS60 | DFS60E-S4EA00150 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 150
DFS60B-TEAL04096
Incremental encoders | DFS60 | DFS60B-TEAL04096 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 4,096
MLG30A-1620I10501
Automation light grids | MLG-2 | MLG30A-1620I10501 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 30 mm | Operating range: 5 m | Detection height: 1,620 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 5.6 ms | Software feature (default setting - see technical data/features): 01
DBS60E-B2APC1024
Incremental encoders | DBS60 | DBS60E-B2APC1024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-RBCPD1024
Incremental encoders | DBS60 | DBS60E-RBCPD1024 | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
AFM60A-TFTA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TFTA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Male connector, M23, 12-pin, radial
