41538 резултата за "SICK" · стр. 240/2077
DBS60E-TEFA00100
Incremental encoders | DBS60 | DBS60E-TEFA00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-B7EPD1024
Incremental encoders | DBS60 | DBS60E-B7EPD1024 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm

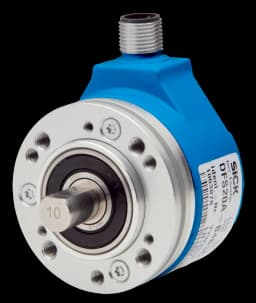

DFS20A-B4D1C065536
Incremental encoders | DFS2x | DFS20A-B4D1C065536 | Mechanical design: Solid shaft Servo flange 10 mm x 16 mm (With flat) | Communication interface: 8 V ... 30 V, Open Collector, non programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 65,536
AFS60S-SGSC262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SGSC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Male connector, M12, 12-pin, radial
AFM60I-BBLC262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-BBLC262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, HTL | Connection type: Male connector, M12, 12-pin, radial | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DFS60B-S1EC00002
Incremental encoders | DFS60 | DFS60B-S1EC00002 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2
SLG25S-050FAKA1K01
Automation light grids | FlexChain | SLG25S-050FAKA1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 25 mm | Operating range: 4 m | Detection height: 500 mm | Length of cable: 0.5 m
PBSH-RB6X0ST2S0D5A0Z
Pressure sensors | PBS Hygienic | PBSH-RB6X0ST2S0D5A0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 2" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 2 x PNP + 4 mA ... 20 mA | Connection ty
IME08-04BNOZW2S
Inductive proximity sensors | IME | IME08-04BNOZW2S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Quadruple sensing range
DBS50E-SKAL02000
Incremental encoders | DBS36/50 | DBS50E-SKAL02000 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 2,000
MAX48N-32A11BP0350
Linear encoders | MAX | MAX48N-32A11BP0350 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 350 mm
DBS60E-B4CC00100
Incremental encoders | DBS60 | DBS60E-B4CC00100 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

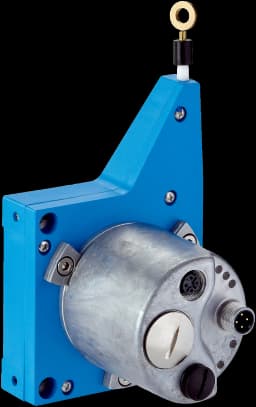

BCG08-E1BM0399
Wire draw encoders | EcoLine | BCG08-E1BM0399 | Measuring range: 0 m ... 3 m | Communication interface: EtherCAT® | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherCAT®, AFM60A-S1EB018x12, 1059061 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes
CLV631-0120F0
Fixed mount barcode scanners | CLV63x | CLV631-0120F0 | Optical focus: Fixed focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Rotary angle variant single port (12-pin) | Max. reading distance: 450 mm | Code resolution: 0.25 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: yes | Enclosure rating: IP65
PBT-RB040AG1SSNALA0Z
Pressure sensors | PBT | PBT-RB040AG1SSNALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 40 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
iE16-F1
Actuators and bolts | Actuators for electromechanical safety switches | iE16-F1 | Design: Rigid | Actuation option: Fully flexible

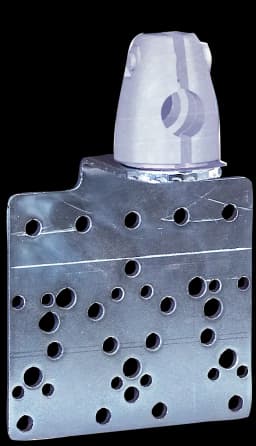

BEF-KHS-N01.1
Mounting systems | Brackets | BEF-KHS-N01.1 | Description: Universal holder for mounting rods (diameter 12 mm)
LFV230-XXTGBCPV0890
Level sensors | LFV200 | LFV230-XXTGBCPV0890 | Communication interface: - | Process connection: G ¾ A PN 64 | Probe length: 890 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
MLG10A-2690B10501
Automation light grids | MLG-2 | MLG10A-2690B10501 | Device version: Pro - Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 2,690 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 22.1 ms | Software feature (default setting - see technical data/features): 01
DFS60E-S4AL00500
Incremental encoders | DFS60 | DFS60E-S4AL00500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 500
