DFS60B-BDAA02000
Incremental encoders | DFS60 | DFS60B-BDAA02000 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,000
MWS120-12A17C05000
Measuring wheel encoders | MWS120 | MWS120-12A17C05000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 30 V, Incremental, TTL, HTL | Supply voltage: 4.5 V ... 30 V | Mounted encoder: DBS60 Core, DBS60E-S4FC05000, 1076422 | Connection type: Male connector, M12, 8-pin, radial

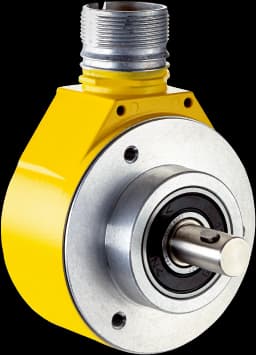

AFM60S-SEKA004096
Safety encoders | AFS/AFM60S Pro | AFM60S-SEKA004096 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial
PBS2-AB1X0SG2SS0NMA0Z
Pressure sensors | PBS plus | PBS2-AB1X0SG2SS0NMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1 bar, 0 psi ... 15 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Outpu
SGS4-F076N3TS1W01
Automation light grids | SLG | SGS4-F076N3TS1W01 | Optical light exit: Flat | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 760 mm | Response time: 57 ms
DBS60E-T3CJC1024
Incremental encoders | DBS60 | DBS60E-T3CJC1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
Connecting cable
Connectors and cables | Other connectors and cables | Connecting cable | Description: CANopen, shielded | Connection type head A: Female connector, M12, 5-pin, straight | Connection type head B: Male connector, M12, 5-pin, straight | Signal type: CANopen | Cable: 1 m | Application: Cold bending resistant
DFS60B-BAEA01000
Incremental encoders | DFS60 | DFS60B-BAEA01000 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,000
YI2A14-020UB3N2A14
Connectors and cables | Sensor-actuator cables | YI2A14-020UB3N2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Male connector, M12, 4-pin, angled, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PUR, halogen-free | Note: Only suitable for PNP sensors | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
IMB08-1B5PSVU3SS09
Inductive proximity sensors | IMB | IMB08-1B5PSVU3SS09 | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 3 m | Special features: Resistant against coolant lubricants, Temperature resistance | Special characteristic: With ferrules without plastic co
BEF-KHZPF100MPA
Mounting systems | Brackets | BEF-KHZPF100MPA | Description: Sensor adapter DSBC-100 | Dimensions (W x H x L): 10 mm x 17 mm x 59.8 mm | Material: Stainless steel | Details: Stainless steel V2A | Usable for: MPA-107 mm ... 251 mm (sensor measuring range), 2 (recommended number of brackets), MPA-287 mm ... 431 mm (measuring range sensor), 3 (recommended number mounting brakets), MPA-467 mm ... 647 mm (measuring range sensor), 4 (recommended number mounting brakets), MPA-683 mm ... 791 mm (measuri
WT100-2P4439
Photoelectric sensors | W100 | WT100-2P4439 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A
ARS60-G4A01440
Absolute encoders | ARS60 | ARS60-G4A01440 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 1,440 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, radial
PBS2-AB1X6SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-AB1X6SG1SSDNMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1.6 bar, 0 psi ... 23 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal
MLG20N-0740P10501
Automation light grids | MLG-2 | MLG20N-0740P10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 740 mm | Length of cable: 0.22 m, 0.21 m | Response time: 4.2 ms | Software feature (default setting - see technical data/features): 01
RSB1-0556E100078PZ0BS02ZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0556E100078PZ0BS02ZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 556 mm | Number of beams: 5 | Beam separation: 100 mm | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with MOLEX-connector 43025-0400, 4-pin | Length of cable: 150 mm | Light source: LED | Type of light: Infrared light | Housing ma
ARS60-FAL00144
Absolute encoders | ARS60 | ARS60-FAL00144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 144 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 3 m
YF8U13-C50UA1M8U13
Connectors and cables | Sensor-actuator cables | YF8U13-C50UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.5 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
IME12-08NPSZWDSS49
Inductive proximity sensors | IME | IME12-08NPSZWDSS49 | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with Tyco plug, 3-pin, 0.45 m
PBT-RK250SN1SS0AMA0Z
Pressure sensors | PBT | PBT-RK250SN1SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: kg/cm² | Measuring range: 0 kg/cm² ... 250 kg/cm² | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connect
