41538 резултата за "SICK" · стр. 233/2077
MLG10N-1340P10501
Automation light grids | MLG-2 | MLG10N-1340P10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,340 mm | Length of cable: 0.22 m, 0.21 m | Response time: 11.7 ms | Software feature (default setting - see technical data/features): 01
WTB9-3P2410S20
Photoelectric sensors | W9 | WTB9-3P2410S20 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: None | Communication interface: -
DBS60E-BHACD1024
Incremental encoders | DBS60 | DBS60E-BHACD1024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
IRTN-P210E41S08
Photoelectric sensors | ZoneControl | IRTN-P210E41S08 | Product version: IR | Sensing range max.: 60 mm 900 mm | Functional principleDropdown: Photoelectric proximity sensor | Functional principle detailDropdown: Background suppression | Switching output: PNP | Connection type: Male connector
AHS36B-BKAC004096
Absolute encoders | AHS/AHM36 | AHS36B-BKAC004096 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 4,096 (12 bit) | Mechanical design: Blind hollow shaft 1/4″ (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal
LL3-DB01-3
Fiber-optic sensors | Fiber-optic cables | LL3-DB01-3 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

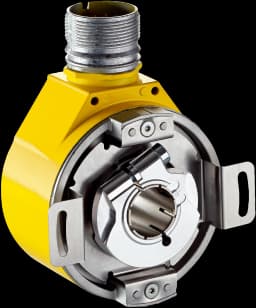

DFS60S-TDOA01024
Safety encoders | DFS60S Pro | DFS60S-TDOA01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Through hollow shaft 10 mm (with feather key groove) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
MLG10A-2090B10501
Automation light grids | MLG-2 | MLG10A-2090B10501 | Device version: Pro - Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 2,090 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 17.5 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S4AA00015
Incremental encoders | DFS60 | DFS60B-S4AA00015 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 15

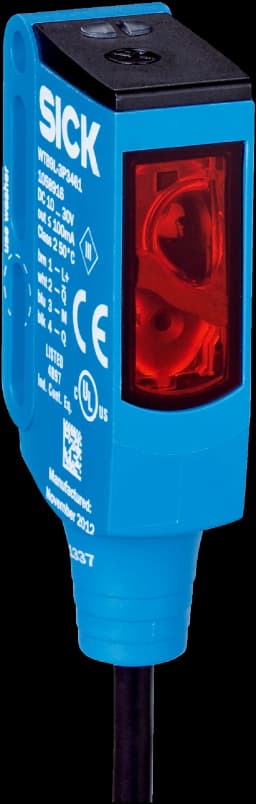

WTB9L-3P3491
Photoelectric sensors | W9 | WTB9L-3P3491 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 120 mm | Light source: Laser | Adjustment: Potentiometer | Laser class: 2 | Communication interface: -
HL18G-A4A3BM
Photoelectric sensors | H18 Sure Sense | HL18G-A4A3BM | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 3 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right:
YF2A15-050VB5N2A15
Connectors and cables | Sensor-actuator cables | YF2A15-050VB5N2A15 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Male connector, M12, 5-pin, angled, A-coded | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DBS60E-RGCC00100
Incremental encoders | DBS60 | DBS60E-RGCC00100 | Mechanical design: Through hollow shaft 14 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
YM2D34-100PN4MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D34-100PN4MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 10 m, 4-wire, CAT5, CAT5e, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Cold bending resistant, Outdoor, Zones with oils and lubricants, seawater resistant
AFS60S-BBKL262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BBKL262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 8 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 3 m
DFS60A-BEAL32768
Incremental encoders | DFS60 | DFS60A-BEAL32768 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 32,768
YF8U14-030UA3N2A14
Connectors and cables | Sensor-actuator cables | YF8U14-030UA3N2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, angled, A-coded | Signal type: Sensor/actuator cable | Cable: 3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
WLG4S-3F3435V
Photoelectric sensors | W4 | WLG4S-3F3435V | Sensing range max.: 0 m ... 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with plug M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Wire/pin | Housing: Rectan
Mounting kit
Mounting systems | Brackets | Mounting kit | Description: Mounting kit for mounting the device | Material: Stainless steel | Details: Stainless steel
DBS50E-S5AL02000
Incremental encoders | DBS36/50 | DBS50E-S5AL02000 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 2,000
