MLG30S-2970A10501
Automation light grids | MLG-2 | MLG30S-2970A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 30 mm | Operating range: 5 m | Detection height: 2,970 mm | Length of cable: 0.22 m, 0.22 m | Response time: 12.2 ms | Software feature (default setting - see technical data/features): 01
MM18-70A-N-ZC0
Magnetic sensors | MMN | MM18-70A-N-ZC0 | Sensing range Sn: 70 mm | Switching output: NAMUR | Connection type: Male connector M12, 4-pin | Housing material: Nickel-plated brass

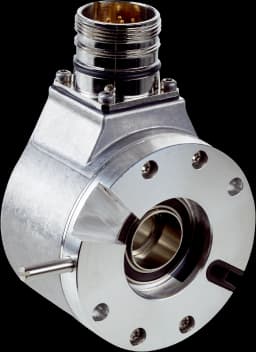

DBS60E-R6FAC1024
Incremental encoders | DBS60 | DBS60E-R6FAC1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin

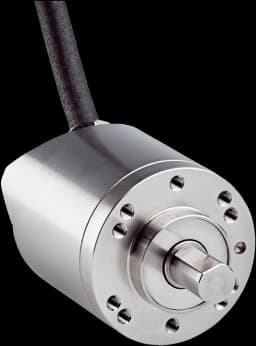

AHS36I-S3CJ016384
Absolute encoders | AHS/AHM36 | AHS36I-S3CJ016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: CANopen, programmable | Connection type: Cable, 5-wire, universal, 0.5 m | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool | Encoder material / Enclosure rating: Stainless steel 1,4305 / IP67, IP69K
WSE4S-3P3230V
Photoelectric sensors | W4 | WSE4S-3P3230V | Sensing range max.: 0 m ... 5 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M8 male connector, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: None | Housing: Rectangular
WE12L-2P431
Photoelectric sensors | W12-2 Laser | WE12L-2P431 | Sensing range max.: 0 m ... 80 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 2 | Adjustment: Potentiometer | Special features: Receiver | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
DBS60E-RCFJ00100
Incremental encoders | DBS60 | DBS60E-RCFJ00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DUS60E-RBKC0AAA
Incremental encoders | DUS60 | DUS60E-RBKC0AAA | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, universal | Output function: A and B output | Flange type / stator coupling: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm | Anti-dither: no
Spacer
Reflectors and optics | Lenses | Spacer | Description: Spacer for mounting the integrable illumination, length: 51.3 mm
MLG10N-1940P10502
Automation light grids | MLG-2 | MLG10N-1940P10502 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,940 mm | Length of cable: 0.22 m, 0.21 m | Response time: 16.3 ms | Software feature (default setting - see technical data/features): 02
DBS60E-RDFPC1024
Incremental encoders | DBS60 | DBS60E-RDFPC1024 | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
IMB18-12NNPVC0K
Inductive proximity sensors | IMB | IMB18-12NNPVC0K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: NPN | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance
PBT-RB010SGTSSNALA0Z
Pressure sensors | PBT | PBT-RB010SGTSSNALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type
DBS60E-S4FK02048
Incremental encoders | DBS60 | DBS60E-S4FK02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DBS50E-S5EP02500
Incremental encoders | DBS36/50 | DBS50E-S5EP02500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 2,500
PBS2-RB6X0SG1SSDLMA0Z
Pressure sensors | PBS plus | PBS2-RB6X0SG1SSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 6 bar, 0 psi ... 87 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO-
C4P-SG10531A00, C4P-EG10531C00
Safety light curtains | deTec | C4P-SG10531A00, C4P-EG10531C00 | Product version: deTec4 HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,050 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (witho
DBS60E-B2FJC1024
Incremental encoders | DBS60 | DBS60E-B2FJC1024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
LFP2900-G1NMB
Level sensors | LFP Inox | LFP2900-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 2,900 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4
SGS4-S108P3PS2T03
Automation light grids | SLG | SGS4-S108P3PS2T03 | Optical light exit: Slim | Aluminum stabilizer: With stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 1,080 mm | Response time: 57 ms
