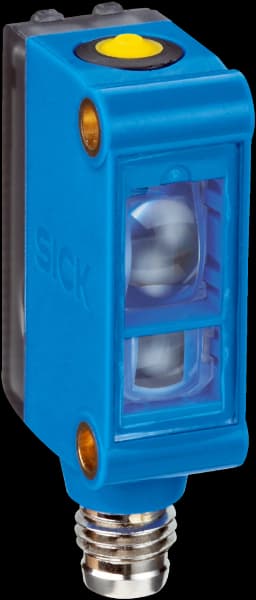

KTM-WP117A1P
Contrast sensors | KTM | KTM-WP117A1P | Light source: LED | Communication interface: IO-Link | Sensing distance: 12.5 mm | Switching output: PNP | Light spot size: 1.6 mm x 9.5 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M8, 4-pin | Adjustment: Cable, IO-Link, Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark | Housing material: Plastic

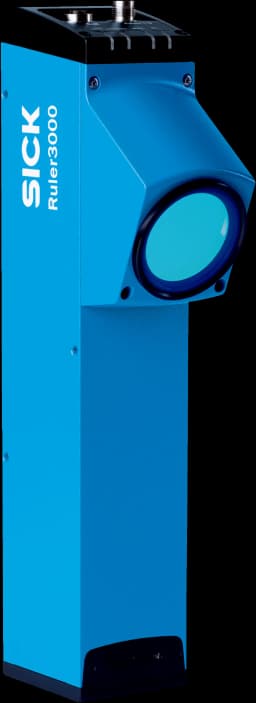

V3DU3-060RM25A
Machine vision | Ruler3000 | V3DU3-060RM25A | Product version: Ruler3060 | Working distance: 395 mm ... 815 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 2 | Window material: PMMA

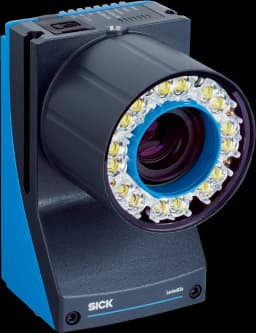

V2D8303R-1MCKEXAF1SXXXX
Image-based code readers | Lector83x | V2D8303R-1MCKEXAF1SXXXX | Variant: Complete device | Regulatory Model: C19MAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,048 px x 1,536 px (3.15 MP) | Illumination color: White | Focal length: 25 mm | Ambient operating temperature: 0 °C ... +50 °C | Communication interface: Ethernet, CAN, Serial, USB, EtherNet/IP™, PROFINET

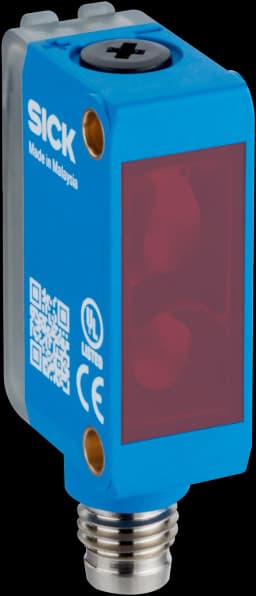

GLD6SP-22A1217EZZZ
Photoelectric sensors | G6 | GLD6SP-22A1217EZZZ | Sensing range min. / max.: 0.03 m / 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular

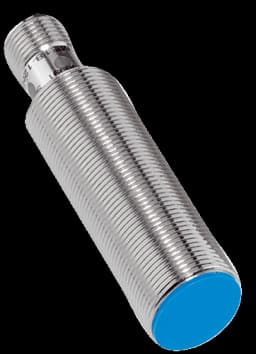

IME18-08BPSZC0S
Inductive proximity sensors | IME | IME18-08BPSZC0S | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin

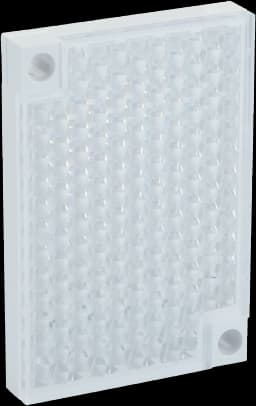

PL40A
Reflectors and optics | Reflectors | PL40A | Description: Rectangular, screw connection | Dimensions: 40 mm 8 mm 60 mm | Ambient operating temperature: –30 °C ... +65 °C

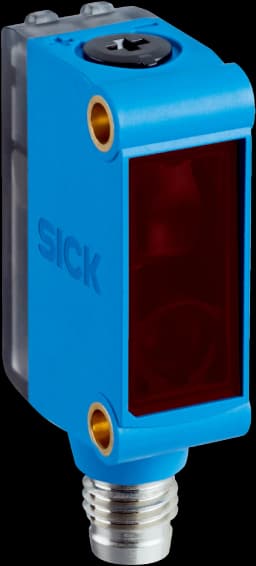

GTB6L-P4211
Photoelectric sensors | G6 | GTB6L-P4211 | Sensing range min. / max.: 10 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
MLP1-SMMF0AC
Safety switches | MLP1 | MLP1-SMMF0AC | Note: Consists of sensor and actuator | Coding: Universally coded | Connection type Detail: Cable with plug M12, 8-pin | Safe series connection: With T-connector (without diagnostics), with Flexi Loop (with diagnostics)

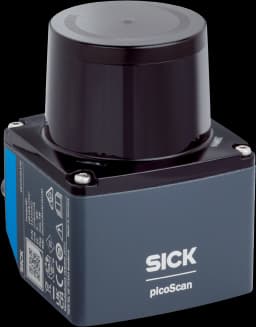

PICS150-01000 Pro-1
LiDAR sensors | picoScan100 | PICS150-01000 Pro-1 | Working range: 0.05 m ... 120 m | Scanning range: 75 m at 90% remission factor, 40 m at 10% remission factor | Angular resolution: 0.05°, 0.1°, 0.125°, 0.25°, 0.33°, 0.5°, 1° | Scanning frequency: 15 Hz, 20 Hz, 25 Hz, 30 Hz, 40 Hz, 50 Hz | Integrated application: Output of measurement data, 2D Object Detection, 2D Object Detection Advanced | Digital add-ons: Dynamic Sensing Profile package, Data Reduction & Data Preparation package, Reliability
SEC110-5C9D1SFZZZZ
Machine vision | sensingCam SEC100 | SEC110-5C9D1SFZZZZ | Communication interface: REST API, Ethernet | Configuration software: Web server integrated | Sensor: Powerful in low light | Shutter technology: Rolling-Shutter | Sensor resolution: 2,880 px x 1,616 px (5 MP) | Detection angle: 82° x 52° | Technology: 2D snapshot, Event recording, Streaming | Event recording video format: MP4 | Event recording buffer: 10 s at 2880 x 1616 p20 s at 1920 x 1080 p (Full HD)40 s at 1280 x 720 p (HD) and below
YF2A2D-050UV2XLEAX
Connectors and cables | Sensor-actuator cables | YF2A2D-050UV2XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 17-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 17-wire, PUR | Application: Zones with oils and lubricants, Zones with oils and lubricants, Robot, Drag chain operation

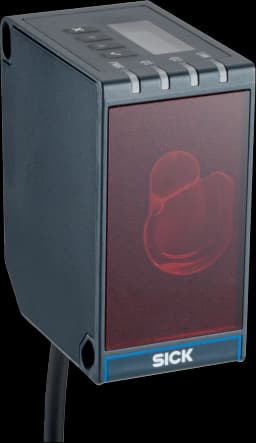

DT80-311111
Laser distance sensors | Dx80 | DT80-311111 | Communication interface: IO-Link | Measuring range: 50 mm ... 80,000 mm, 90% remission factor, 50 mm ... 40,000 mm, 90% remission factor, 50 mm ... 14,000 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 33 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output

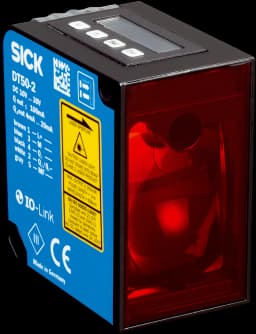

DT50-2B215552
Laser distance sensors | Dx50-2 | DT50-2B215552 | Communication interface: IO-Link | Measuring range: 200 mm ... 30,000 mm, 90% remission factor, 200 mm ... 17,000 mm, 18% remission factor, 200 mm ... 10,000 mm, 6% remission factor | Laser class: 1 | Light source: Laser, red | Minimum response time: 1.67 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x

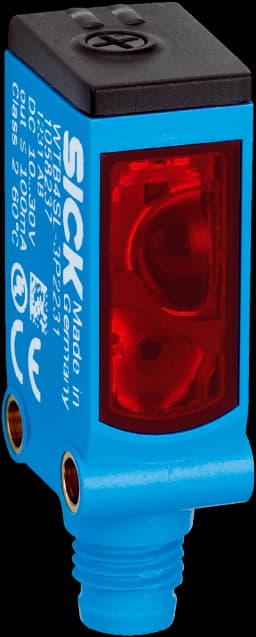

WTB4SL-3P2261
Photoelectric sensors | W4 | WTB4SL-3P2261 | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Potentiometer | Housing: Rectangular
STE-0803-G
Connectors and cables | Field-wireable connectors | STE-0803-G | Description: Unshielded | Connection type head A: Male connector, M8, 3-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: 0.14 mm² ... 0.5 mm²

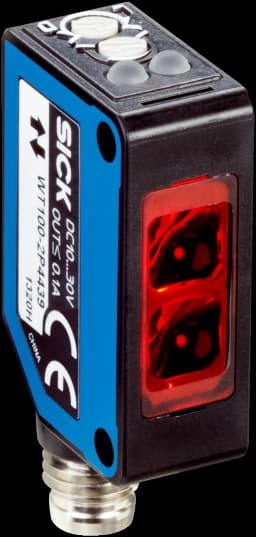

WT100-2P3439
Photoelectric sensors | W100 | WT100-2P3439 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A
IME12-04BPPZC0S
Inductive proximity sensors | IME | IME12-04BPPZC0S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin
GTB6-P4211
Photoelectric sensors | G6 | GTB6-P4211 | Sensing range max.: 5 mm ... 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular
YF2A18-050UA5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A18-050UA5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

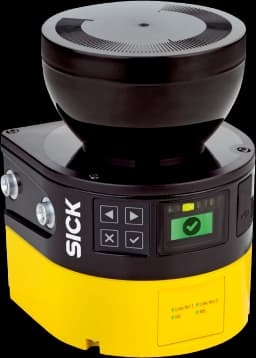

MICS3-ABAZ40PZ1P01
Safety laser scanners | microScan3 | MICS3-ABAZ40PZ1P01 | Product version: microScan3 Core - PROFINET | Model: Sensor (1100403) including system plug (2086102), pre-mounted on the underside | Integration in the control system: PROFINET PROFIsafe | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12
