41538 резултата за "SICK" · стр. 228/2077

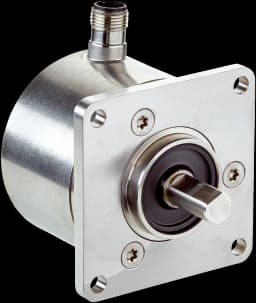

AFM60I-Q4PC262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-Q4PC262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: SSI, programmable | Connection type: Male connector, M12, 8-pin, radial | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
MZT8-2V8PS-KPDS26
Cylinder sensors | MZT8 | MZT8-2V8PS-KPDS26 | Connection type: Cable with connector M8, 3-pin, 0.1 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
PBT-RB016AG2SS0AMA0Z
Pressure sensors | PBT | PBT-RB016AG2SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Con
DUS60E-TDKFADCB
Incremental encoders | DUS60 | DUS60E-TDKFADCB | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 4-pin, universal | Output function: Channel A, error | Flange type / stator coupling: Without stator coupling, flange with 4 x M2,5 | Anti-dither: yes
MLG10N-1040P10501
Automation light grids | MLG-2 | MLG10N-1040P10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,040 mm | Length of cable: 0.22 m, 0.21 m | Response time: 9.4 ms | Software feature (default setting - see technical data/features): 01
SGS4-S108P3PS2W06
Automation light grids | SLG | SGS4-S108P3PS2W06 | Optical light exit: Slim | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 1,080 mm | Response time: 19 ms
CLV651-6000
Fixed mount barcode scanners | CLV65x | CLV651-6000 | Optical focus: Auto focus | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Cable connection variant | Max. reading distance: 880 mm | Code resolution: 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Oscillating mirror | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
YF2AAB-100UD7M2AAB
Connectors and cables | Sensor-actuator cables | YF2AAB-100UD7M2AAB | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 12-pin, straight, A-coded | Connection type head B: Male connector, M12, 12-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 10 m, 12-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants
LFP1500-G1NMB
Level sensors | LFP Inox | LFP1500-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,500 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4
PBT-CB016SG2SS0ALA0Z
Pressure sensors | PBT | PBT-CB016SG2SS0ALA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 15 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | C
Safety screws M4 x 25
Mounting systems | Assembly accessories | Safety screws M4 x 25 | Packing unit: 10 pieces
AFS60S-TAKN262144
Safety encoders | AFS/AFM60S Pro | AFS60S-TAKN262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 6 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 10 m
MLG10A-1940I10801
Automation light grids | MLG-2 | MLG10A-1940I10801 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 8.5 m | Detection height: 1,940 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 16.3 ms | Software feature (default setting - see technical data/features): 01

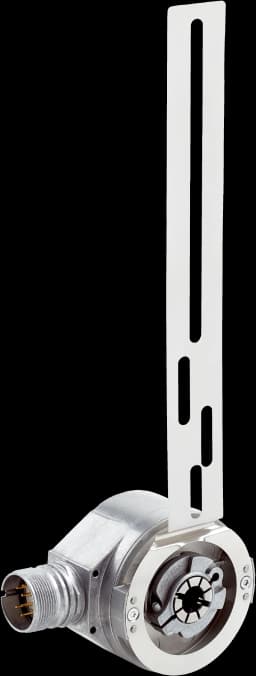

SFS60-HMAT3K02
Motor feedback systems | SFS/SFM60 | SFS60-HMAT3K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
DFS60E-TDAK01024
Incremental encoders | DFS60 | DFS60E-TDAK01024 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
AFS60S-SESM262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SESM262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 5 m

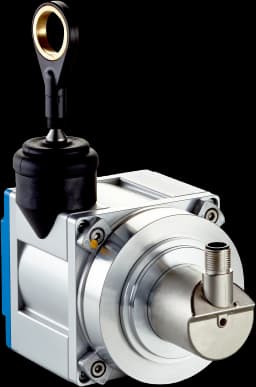

BTF08-Q1RM0262
Wire draw encoders | HighLine | BTF08-Q1RM0262 | Measuring range: 0 m ... 2 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Advanced, AHM36A-S3QC014X12, 1101532 | Mounted mechanic: MRA-F080-102D2, 6028625 | Programmable/configurable: yes
DBS60E-T5CJ00100
Incremental encoders | DBS60 | DBS60E-T5CJ00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DUS60E-BDKMAAAA
Incremental encoders | DUS60 | DUS60E-BDKMAAAA | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 5 m | Output function: A and B output | Flange type / stator coupling: Without stator coupling, flange with 4 x M2,5 | Anti-dither: no
YG2A25-050UB6XLEAX
Connectors and cables | Sensor-actuator cables | YG2A25-050UB6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
