Търсене в каталога
41538 резултата за "SICK" · стр. 226/2077

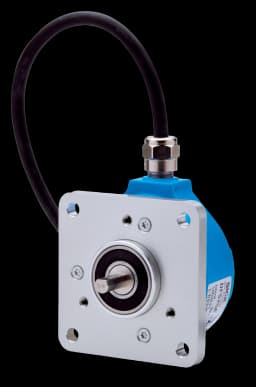

DFS25A-A2PBO008192
Incremental encoders | DFS2x | DFS25A-A2PBO008192 | Mechanical design: Solid shaft Square flange 3/8″ x 19 mm (With flat) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Cable, 9-wire, radial, 10 m | Pulses per revolution: 8,192
IHM06-02BPOVW2S
Inductive proximity sensors | IMM | IHM06-02BPOVW2S | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
WF80-95B410
Fork sensors | WF | WF80-95B410 | Adjustment: Plus/minus button | Light source: LED | Type of light: Infrared light | Fork width/depth: 80 mm, 95 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
UM30-215115
Ultrasonic distance sensors | UM30 | UM30-215115 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 1 x NPN
TCT-2AASE0253MZ
Temperature sensors | TCT | TCT-2AASE0253MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Compression fitting G ½ B, stainless steel ferrule | Insertion length/diameter of probe: 25 mm / 3 mm | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
MLG20A-0880I10501
Automation light grids | MLG-2 | MLG20A-0880I10501 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 880 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 4.8 ms | Software feature (default setting - see technical data/features): 01
PBSH-RB2X5ST1S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-RB2X5ST1S0BMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connectio
AHM36A-SCQC014x12
Absolute encoders | AHS/AHM36 | AHM36A-SCQC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 24 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
PBS2-AB2X5SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-AB2X5SG1SSDNMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal
BTF13-J1QM3064
Wire draw encoders | HighLine | BTF13-J1QM3064 | Measuring range: 0 m ... 30 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-S3JC014x12, 1120251 | Mounted mechanic: MRA-F130-130D1, 6028629 | Programmable/configurable: yes
DBS60E-B2AP00100
Incremental encoders | DBS60 | DBS60E-B2AP00100 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-THCK01024
Incremental encoders | DBS60 | DBS60E-THCK01024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-B5EAD1024
Incremental encoders | DBS60 | DBS60E-B5EAD1024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
HTB18-P1E2AAD06
Photoelectric sensors | H18 Sure Sense | HTB18-P1E2AAD06 | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: None | Potentiometer, left: Non
YG2A24-150UB4XLEAX
Connectors and cables | Sensor-actuator cables | YG2A24-150UB4XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 15 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
WTB9-3P3461
Photoelectric sensors | W9 | WTB9-3P3461 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 120 mm | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
DFS60B-S4CK01000
Incremental encoders | DFS60 | DFS60B-S4CK01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000
DAXTVN-0170RA1J0100M01
Linear encoders | DAX | DAXTVN-0170RA1J0100M01 | Design: DAX Threaded | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 170 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 50 mm / 63 mm | Magnet type: Ring magnet MAG-O-330-01 | Thread offset: Without thread offset | Thread shape: M18 x 1.5
YF8U13-050VA1M8U13
Connectors and cables | Sensor-actuator cables | YF8U13-050VA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 5 m, 3-wire, PVC | Application: Uncontaminated zones, Zones with chemicals, Robot
UHF Transponder, Rectangular, On-Metal & High-Temp, FCC
RFID transponders | UHF transponders | UHF Transponder, Rectangular, On-Metal & High-Temp, FCC | Carrier frequency: 902 MHz ... 928 MHz | Special features: High Temperature | Memory capacity (EPC / user memory): 128/496 Bit (EPC / User Memory) | Dimensions (L x W x H): 55 mm x 36.2 mm x 7.5 mm
