DBS60E-BFEA00100
Incremental encoders | DBS60 | DBS60E-BFEA00100 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-RCEJ00100
Incremental encoders | DBS60 | DBS60E-RCEJ00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
IME12-06BPSZWDK
Inductive proximity sensors | IME | IME12-06BPSZWDK | Housing: Short-body | Sensing range Sn: 6 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 7 m | Special features: Triple sensing range
PBT-RP2K0SN1SS0VMC0Z
Pressure sensors | PBT | PBT-RP2K0SN1SS0VMC0Z | Pressure type: Gauge pressure | Pressure unit: psi | Measuring range: 0 psi ... 2,000 psi | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type:
WL4S-3F2130V
Photoelectric sensors | W4 | WL4S-3F2130V | Sensing range max.: 0 m ... 4 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: None | Housing: Rectangular

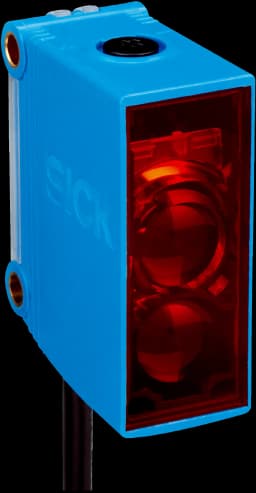

GTB10-F7431S14
Photoelectric sensors | G10 | GTB10-F7431S14 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M12 male connector, 4-pin, 300 mm | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
DFS60B-TFMA10000
Incremental encoders | DFS60 | DFS60B-TFMA10000 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 10,000
YN2A14-100VB3XLEAX
Connectors and cables | Sensor-actuator cables | YN2A14-100VB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DBS50E-S5PK00200
Incremental encoders | DBS36/50 | DBS50E-S5PK00200 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, Open Collector | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 200
DSL-6182G02M034KM1
Connectors and cables | Other connectors and cables | DSL-6182G02M034KM1 | Description: Drag chain use, unshielded | Connection type head A: Female connector, M26, 12-pin, straight | Connection type head B: Male connector, M12, 5-pin, straight | Cable: 2 m, 5-wire, PUR
PBST-RB016SG1SSNQMA0Z
Pressure sensors | PBST | PBST-RB016SG1SSNQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4
DBS60E-RFACC1024
Incremental encoders | DBS60 | DBS60E-RFACC1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-RAFA02048
Incremental encoders | DBS60 | DBS60E-RAFA02048 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60I-S1PC65536
Incremental encoders | DFS60 | DFS60I-S1PC65536 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 65,536 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

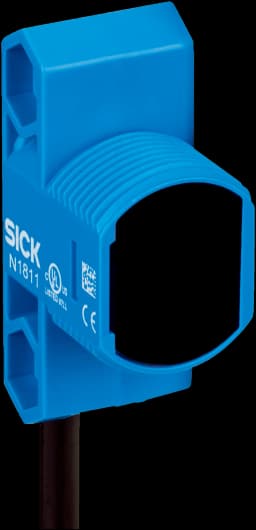

ZTB18-2AB1G1D04
Photoelectric sensors | Z18 Simple Sense | ZTB18-2AB1G1D04 | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 100 mm | Light source, light type: PinPoint LED, Infrared light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Cable open end, 4-wire, 2,000 mm
VLR-247RA4011
Reflectors and optics | Illuminations | VLR-247RA4011 | Description: Ring illumination unit with shallow illumination angle | Light source: LED, blue 470 nm | LED class: Risk group 1 (low risk, IEC62471 : 2008) | Connection types: Connector M12, 4-pin, L = 0.5 m | Ambient operating temperature: 0 °C ... +40 °C
KA14-SGF22EWP
Connectors and cables | Other connectors and cables | KA14-SGF22EWP | Description: Sensor/actuator cable | Connection type head A: Female connector, Micro 1/2"-20, 4-pin, straight | Connection type head B: Male connector, safety plug, 4-pin, straight | Signal type: Sensor/actuator cable | Cable: 2 m, 3-wire, TPU
PBS2-CB2X5SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-CB2X5SG1SSDQ5A0Z | Pressure type: Compound pressure | Pressure unit: bar psi | Measuring range: –1 bar ... 1.5 bar, –14.5 psi ... 22 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output s
C2MT-02434BBC04DE0
Safety light curtains | miniTwin | C2MT-02434BBC04DE0 | Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 34 mm | Scanning range: 8 m | Protective field height: 240 mm | Connection type: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pi
HL18-P3A3BH
Photoelectric sensors | H18 Sure Sense | HL18-P3A3BH | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right
