Търсене в каталога
41538 резултата за "SICK" · стр. 216/2077
LXRC-1XXXFXXAAEXAB
Level sensors | LXRC-1 | LXRC-1XXXFXXAAEXAB | Communication interface: IO-Link | Process connection: G ¾, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, FKM | Housing material: Stainless steel 1.4404 / 316L
SFS60-HNKB0K02
Motor feedback systems | SFS/SFM60 | SFS60-HNKB0K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
RSB1-0600H069059AZ3FZZZP0D
Photoelectric sensors | Roller Sensor Bar | RSB1-0600H069059AZ3FZZZP0D | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 600 mm | Number of beams: 8 | Beam separation: 69 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Cable with connector M8, 4-pin, with knurled nut | Length of cable: 1.5 m | Light source: LED | Type of light: Infrared l
PBT-RB400SG1SENVMC0Z
Pressure sensors | PBT | PBT-RB400SG1SENVMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection ty
VTE180-2F32487
Photoelectric sensors | V180 | VTE180-2F32487 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)

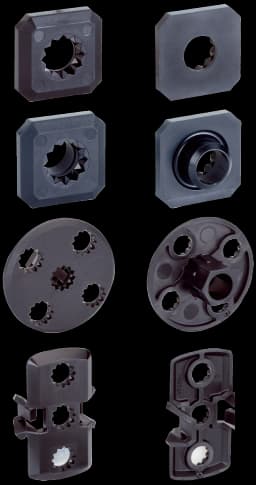

BEF-AP-RSBKIT
Mounting systems | Brackets | BEF-AP-RSBKIT | Description: Adapter kit: BEF-AP-RSBADHA, BEF-AP-RSBADHB, BEF-AP-RSBCON, BEF-AP-RSBHEX | Items supplied: BEF-AP-RSBADHA, BEF-AP-RSBADHB, BEF-AP-RSBCON, BEF-AP-RSBHEX
WTB4SP-22167220A00
Photoelectric sensors | W4 | WTB4SP-22167220A00 | Sensing range min. / max.: 4 mm / 130 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, NarrowBeam | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link |
DBS60E-RAAQC1024
Incremental encoders | DBS60 | DBS60E-RAAQC1024 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DFS60E-S1EK02048
Incremental encoders | DFS60 | DFS60E-S1EK02048 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048
ANM58B-TGNNA000000400BXX018x16
Absolute encoders | ANS/ANM58 | ANM58B-TGNNA000000400BXX018x16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
DFS60B-S1EL10000
Incremental encoders | DFS60 | DFS60B-S1EL10000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 10,000

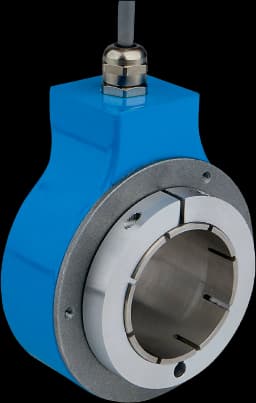

DGS80B-TYLK08192
Incremental encoders | DGS80/90 | DGS80B-TYLK08192 | Mechanical design: Through hollow shaft 42 mm (Front clamp) | Communication interface: 5 V ... 30 V, HTL, Push pull, non programmable | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 8,192 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
DBS60E-B2EQD1024
Incremental encoders | DBS60 | DBS60E-B2EQD1024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
PBT-CB016SU1SFFALA0Z
Pressure sensors | PBT | PBT-CB016SU1SFFALA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 15 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 7/16" –20 UNF (SAE J514) | Pressure port: Standard | Process temperature: –20 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Co
DBS60E-TAFA02048
Incremental encoders | DBS60 | DBS60E-TAFA02048 | Mechanical design: Through hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
AFS60A-S4PK262144
Absolute encoders | AFS/AFM60 SSI | AFS60A-S4PK262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Programming interface: Over handheld programming tool, over SOPAS
IMX08-08NNOZC0S
Inductive proximity sensors | IMX | IMX08-08NNOZC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator
MAX48N-22V10AC0240
Linear encoders | MAX | MAX48N-22V10AC0240 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 36 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 240 mm | Output signal: 0.5 V DC ... 4.5 V DC
RSB1-1073H131078KH4GZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-1073H131078KH4GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 1,073 mm | Number of beams: 8 | Beam separation: 131 mm | Switching output: PNP: open collector | Switching mode: Light/dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 2 m | Light source: LED | Type of light: In
DFS60B-S4UA01024
Incremental encoders | DFS60 | DFS60B-S4UA01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024
