AFM60A-BCPL262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-BCPL262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 3 m | Programming interface: Over handheld programming tool, over SOPAS
PBT-AB4X0SGTSSNAMA0Z
Pressure sensors | PBT | PBT-AB4X0SGTSSNAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 4 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
SPL-F280PPC2W04
Automation light grids | SLG | SPL-F280PPC2W04 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 1.5 m | Detection height: 280 mm | Response time: 38 ms
DFS60B-S1EB03600
Incremental encoders | DFS60 | DFS60B-S1EB03600 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 3,600
AFS60I-BEPK262144
Absolute encoders | AFS/AFM60 SSI | AFS60I-BEPK262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67

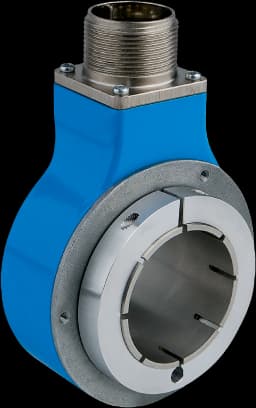

DGS80B-TYL404096
Incremental encoders | DGS80/90 | DGS80B-TYL404096 | Mechanical design: Through hollow shaft 42 mm (Front clamp) | Communication interface: 5 V ... 30 V, HTL, Push pull, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 4,096 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
ZLD18-ANZAK8P10
Photoelectric sensors | Z18 Simple Sense | ZLD18-ANZAK8P10 | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: NPN, Light switching | Switching output Q2: Not connected | Connection type: Cable with connector RJ11, 6-pin, 3,000 mm
DBS36E-S3EM00100
Incremental encoders | DBS36/50 | DBS36E-S3EM00100 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 100
MAX48N-12A10K40300
Linear encoders | MAX | MAX48N-12A10K40300 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Connecting cable, 3-wire, 1,000 mm | Measuring range: 0 mm ... 300 mm
MLG05W-0343H12503
Automation light grids | MLG-2 WebChecker | MLG05W-0343H12503 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,495 mm | Measuring field width detail (connection side/medium range/head side): 445 mm / 605 mm / 445 mm | Length of cable: 0.22 m, 0.27 m | Response time: 36.7 ms | Software feature (default setting - see technical data/features): 03
DFS60B-S4AC02048
Incremental encoders | DFS60 | DFS60B-S4AC02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
SFS60-HKKT1K02
Motor feedback systems | SFS/SFM60 | SFS60-HKKT1K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.

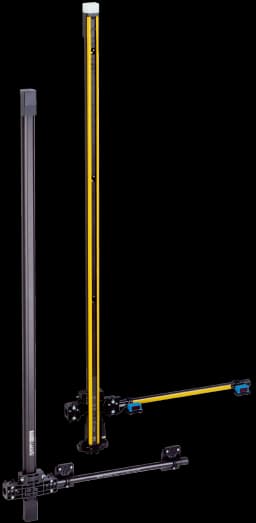

L-muting right
Safety light-beam sensors | deTem | L-muting right | Product version: deTem4 LT Muting A/P | Functional principle: Active/passive | System part: Muting system | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Male connector M12, 8-pin | End cap with integrated LED: ye
HTB18L-N3A5AB
Photoelectric sensors | H18 Sure Sense | HTB18L-N3A5AB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: NPN, Light switching | Switching output Q2: NPN, Dark switching | Potentiometer, right: Sensing range | Potentiometer, left: Non
HTE18-F4A2BF
Photoelectric sensors | H18 Sure Sense | HTE18-F4A2BF | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Energetic | Sensing range: 600 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Potentiometer, right: Sensitivity | Pot
DBS60E-RHFC01024
Incremental encoders | DBS60 | DBS60E-RHFC01024 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-T3CCD1024
Incremental encoders | DBS60 | DBS60E-T3CCD1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
MLG10S-1340D10501
Automation light grids | MLG-2 | MLG10S-1340D10501 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,340 mm | Length of cable: 0.22 m, 0.22 m | Response time: 15.8 ms | Software feature (default setting - see technical data/features): 01
GTB2F-F1341
Photoelectric sensors | G2 | GTB2F-F1341 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -
PACS1000-221
Quality control systems | Pallet Classification System | PACS1000-221 | Industries: Distribution and fulfillment | Load documentation: no
