LFV230-XXTGBTPM0500
Level sensors | LFV200 | LFV230-XXTGBTPM0500 | Communication interface: - | Process connection: G ¾ A PN 64 | Probe length: 500 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
DBS60E-TGECD1024
Incremental encoders | DBS60 | DBS60E-TGECD1024 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DFS60E-TDCC02048
Incremental encoders | DFS60 | DFS60E-TDCC02048 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
BEF-MR10200AK
Measuring wheels and measuring wheel mechanics | Measuring wheels | BEF-MR10200AK | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheels | Description: Aluminum measuring wheel with cross-knurled surface for 10 mm solid shaft, circumference 200 mm
HL18L-P3A5AE
Photoelectric sensors | H18 Sure Sense | HL18L-P3A5AE | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 12 m | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Light
DBS60E-TBEK01000
Incremental encoders | DBS60 | DBS60E-TBEK01000 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
ARS60-F1R32767
Absolute encoders | ARS60 | ARS60-F1R32767 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,767 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, axial, 1.5 m
AFM60B-THPL032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-THPL032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 3 m | Programming interface: Over handheld programming tool, over SOPAS
MLG10N-1340N10501
Automation light grids | MLG-2 | MLG10N-1340N10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,340 mm | Length of cable: 0.22 m, 0.21 m | Response time: 11.7 ms | Software feature (default setting - see technical data/features): 01
DBS60E-TGFND1024
Incremental encoders | DBS60 | DBS60E-TGFND1024 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DOL-MS10-G03MMA2
Connectors and cables | Other connectors and cables | DOL-MS10-G03MMA2 | Description: Shielded | Connection type head A: Female connector, MS/10, 10-pin, straight | Connection type head B: Flying leads | Cable: 3 m, 11-wire

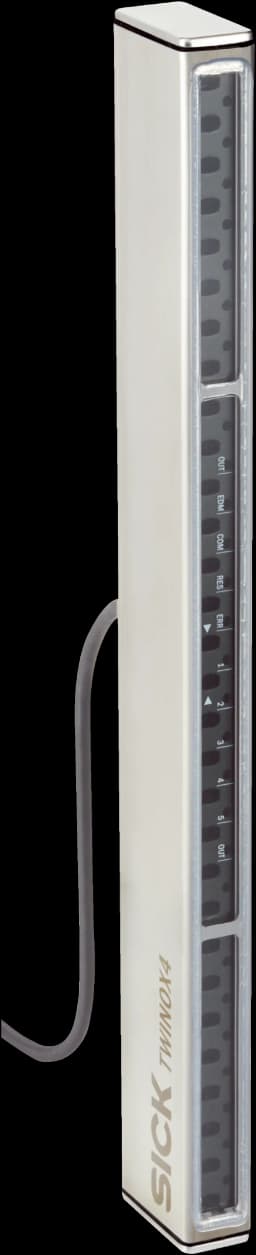

C4IT-03014ABA01KA0
Safety light curtains | TWINOX4 | C4IT-03014ABA01KA0 | Resolution: 14 mm | Scanning range: 4.5 m | Protective field height: 300 mm | Connection type: Connecting cable, 5-wire | Enclosure rating: IP65, IP67 | Housing material: Stainless steel V4A (1.4404, 316L) | Front screen material: Chemically prestressed float glass | Items supplied: 1 twin stick with pre-mounted connecting cable, 10 m, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mou
MLG50S-1900D10801
Automation light grids | MLG-2 | MLG50S-1900D10801 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 50 mm | Operating range: 8.5 m | Detection height: 1,900 mm | Length of cable: 0.22 m, 0.22 m | Response time: 6.2 ms | Software feature (default setting - see technical data/features): 01
ARS60-FAA01024
Absolute encoders | ARS60 | ARS60-FAA01024 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 1,024 (10 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, radial
DFS60B-BHCM04096
Incremental encoders | DFS60 | DFS60B-BHCM04096 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 4,096
PBT-RB100AG2SE0VMC0V
Pressure sensors | PBT | PBT-RB100AG2SE0VMC0V | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | C
AFM60S-BGKK262144
Safety encoders | AFS/AFM60S Pro | AFM60S-BGKK262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 14 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 1.5 m
P19-1
Reflectors and optics | Reflectors | P19-1 | Description: Round, pluggable, 100 pieces per package | Ambient operating temperature: –20 °C ... +65 °C | Items supplied: 100 pieces per pack
KUP-0610-BJ
Shaft adaptation | Shaft couplings | KUP-0610-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key
WLA16P-39722100ZZZ
Photoelectric sensors | W16 | WLA16P-39722100ZZZ | Sensing range min. / max.: 0 m / 10 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with Q6 male connector, 6-pin, DC-coded, 298 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjus
