Търсене в каталога
41538 резултата за "SICK" · стр. 213/2077
WL100L-E2231
Photoelectric sensors | W100 | WL100L-E2231 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: - | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F
DFS60E-TJEK01024
Incremental encoders | DFS60 | DFS60E-TJEK01024 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
DBS36E-BBRK00600
Incremental encoders | DBS36/50 | DBS36E-BBRK00600 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, Open Collector | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 600
DAXLAN-0220BA0C0000V01
Linear encoders | DAX | DAXLAN-0220BA0C0000V01 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 220 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
DBS60E-TDCA00100
Incremental encoders | DBS60 | DBS60E-TDCA00100 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
C4MT-10814ABB04FE0
Safety light curtains | miniTwin | C4MT-10814ABB04FE0 | Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 5 m | Protective field height: 1,080 mm | Connection type: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2
DFS60B-S1EB08192
Incremental encoders | DFS60 | DFS60B-S1EB08192 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 8,192
DBS60E-S4AQ01024
Incremental encoders | DBS60 | DBS60E-S4AQ01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
MLG05W-0B42R12501
Automation light grids | MLG-2 WebChecker | MLG05W-0B42R12501 | Device version: Web guiding | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 2,545 mm | Measuring field width detail (connection side/medium range/head side): 1,645 mm / 605 mm / 295 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 78.1 ms | Software feature (default setting - see technical data/features): 01
DBS60E-RFAP00100
Incremental encoders | DBS60 | DBS60E-RFAP00100 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
TBS-1LSGT0506NM
Temperature sensors | TBS | TBS-1LSGT0506NM | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ½ A | Insertion length/diameter of probe: 50 mm / 6 mm | Seal: NBR | Output signal: IO-Link/PNP + PNP | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: IO-Link
AFM60B-BEAC008192
Absolute encoders | AFS/AFM60 SSI | AFM60B-BEAC008192 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial
DBS36E-BBEK00200
Incremental encoders | DBS36/50 | DBS36E-BBEK00200 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 200
YG8U14-C60UA3XLEAX
Connectors and cables | Sensor-actuator cables | YG8U14-C60UA3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 0.6 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

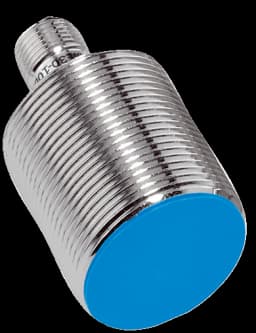

IME30-20BNSZC0K
Inductive proximity sensors | IME | IME30-20BNSZC0K | Housing: Short-body | Sensing range Sn: 20 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Triple sensing range
SGS4-F108P3PS2W04
Automation light grids | SLG | SGS4-F108P3PS2W04 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 1,080 mm | Response time: 19 ms
PBS2-RB060SG1SSDLMA0Z
Pressure sensors | PBS plus | PBS2-RB060SG1SSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 60 bar, 0 psi ... 870 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: I
DBS60E-TJAN00048
Incremental encoders | DBS60 | DBS60E-TJAN00048 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 48 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

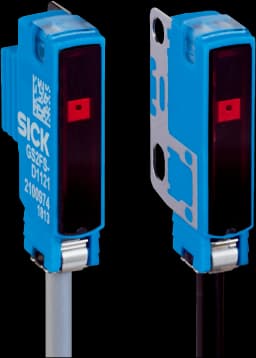

GSE2FS-N0162S01
Photoelectric sensors | G2 | GSE2FS-N0162S01 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 500 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: 2 x BEF-G2F-SIDE-SPACER-M2 (2107264)
IME18-08BPSZU1SS37
Inductive proximity sensors | IME | IME18-08BPSZU1SS37 | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with Deutsch DT04-3P-CE09 male connector, 3-pin, 1 m
