MF-K0608N141ZZZ
Fork sensors | MF | MF-K0608N141ZZZ | Adjustment: None | Light source: LED | Type of light: Infrared | Fork width/depth: 6 mm, 8 mm | Note: 1 piece single packaging | Switching output: NPN | Switching mode: Light/dark switching | Length of cable: 2 m | Connection type Detail: Cable open end, 4-wire | Mounting system type: K | Switching frequency: > 4 kHz | Response time: 100 µs | Enclosure rating: IP67

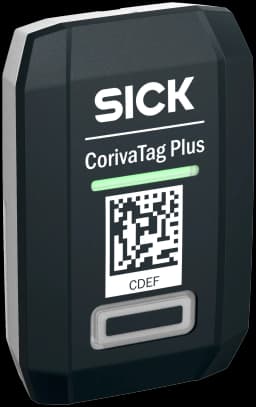

CorivaTag Plus
Localization systems | Coriva System | CorivaTag Plus | Description: UWB Tag
PS600W-1PH11132524Z
Power supply units and power supply cables | Power supply units | PS600W-1PH11132524Z | Maximum output power: 600 W | Input voltage: 100 V AC ... 240 V AC | Output voltage: 24 V DC | Output current: 25 A | Enclosure rating: IP67 | Description: Fully encapsulated AC/DC power supply unit, 600 W, 24 V DC, 25 A, 100 V AC ... 240 V AC, AC input: M12, 4-pin plug, S-coded, DC output: M12, 5-pin socket, L-coded
V2D621P-2MDFCB5S50
Machine vision | InspectorP62x | V2D621P-2MDFCB5S50 | License included: Intelligent Inspection License | Illumination: Integrated | Illumination color: Infrared | Lens: 9.6 mm | Working distance: 70 mm ... 1,500 mm | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus
WTM12L-34161120A00
Photoelectric sensors | W12 | WTM12L-34161120A00 | Sensing range min. / max.: 80 mm / 850 mm, 0 mm / 400 mm, 80 mm / 1,200 mm, 0 mm / 800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 315 mm | Light source: Laser | Type of light: Visible red light | Laser c
WTB12F-34161A20A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WTB12F-34161A20A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 10 mm / 1,400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 318 mm | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teac
ZS3608-SR20263VZWW
Mobile handheld scanners | Zx36 | ZS3608-SR20263VZWW | Readable code structures: 1D codes, 2D codes, Stacked, Digimarc® | Reading distance: 30 mm ... 1,520 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB | Ambient operating temperature: –30 °C ... +50 °C | Country approva
V2D8305P-1MCICXAF1SXXXX
Machine vision | Inspector83x | V2D8305P-1MCICXAF1SXXXX | License included: Intelligent Inspection License | Illumination: Integrated | Illumination color: White | Lens: 12 mm, C-mount | Working distance: 200 mm ... 2,500 mm | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus
BEF-1SHABPKU4
Mounting systems | Brackets | BEF-1SHABPKU4 | Description: FlexFix bracket for 2 devices (e.g. sender and receiver), can be aligned ± 15°, including M5 screw | Material: Plastic | Details: Plastic | Packing unit: 4 pieces

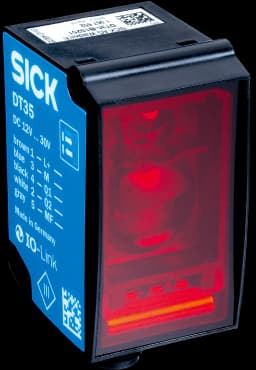

DT35-B15251
Laser distance sensors | Dx35 | DT35-B15251 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
SP1-1000
System plugs and extension modules | System plugs deTec and deTem | SP1-1000 | Function range: SP1 | System connection: Plug, M12, 5-pin | Extension connection: Without extension connection | Items supplied: System plug

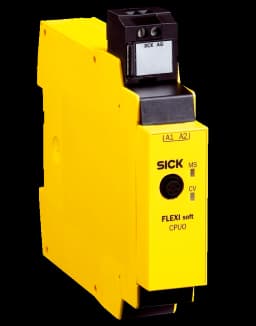

FX3-CPU000000
Safety controllers | Flexi Soft | FX3-CPU000000 | Module: Main module | Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin) | Enhanced sensor functions: – | Controller networking: – | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no | Items supplied: Main module without system plug, safety instruction, Operating instructions for download
YF2A15-050UB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A15-050UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
MICS3-AAAZ55AZ1P01
Safety laser scanners | microScan3 | MICS3-AAAZ55AZ1P01 | Product version: microScan3 Core I/O | Model: Sensor (1067875) including system plug (2073156) | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 5.5 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12

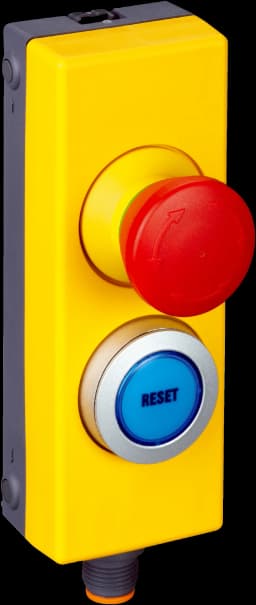

ES11-SC4D8
Safety switches | ES11 | ES11-SC4D8 | System part: Complete device | Positive action N/C contacts: 2 | N/O contacts: 1 | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: With Flexi Loop (with diagnostics) | Emergency stop pushbutton (illuminable): no | Reset pushbutton (illuminable): yes

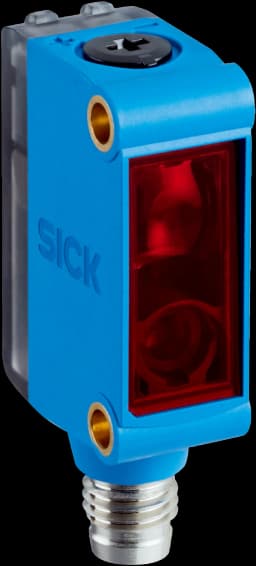

GL6-P4211
Photoelectric sensors | G6 | GL6-P4211 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular
RE13-SAC
Safety switches | RE1 | RE13-SAC | Systemteil: Sensor with actuator | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 0 | Connection type Detail: Plug connector, M8, 4-pin | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
YM2D24-100PN1MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-100PN1MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 10 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants

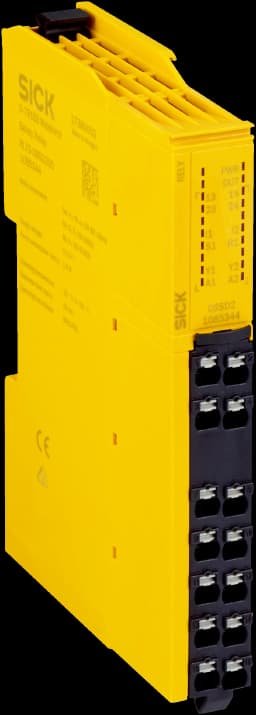

RLY3-OSSD200
ReLy | RLY3-OSSD200 | Applications: Evaluation unit | Compatible sensor types: Safety sensors with OSSDs | Connection type: Front connector with spring terminals | Restart interlock: yes | External device monitoring (EDM): Integrated | Outputs: 2 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe) | Housing width: 18 mm

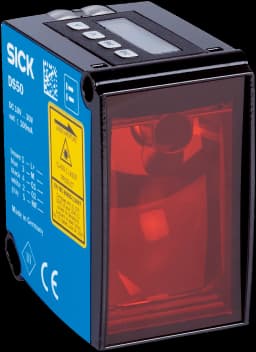

DL50-P2228
Laser distance sensors | Dx50 | DL50-P2228 | Communication interface: SSI | Measuring range: 200 mm ... 50,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Minimum response time: 10 ms | Digital output: 1 ... 2 x PNP | Multifunctional input (MF): − / 1 x
