BTF13-L1EM20PP
Wire draw encoders | HighLine | BTF13-L1EM20PP | Measuring range: 0 m ... 20 m | Communication interface: - / Voltage / 0...10 V | Supply voltage: 18 V DC ... 33 V DC | Connection type: Male connector, M12, 5-pin, radial | Mounted encoder: ACM60, ACM60B-S1LE13X06, 6045313 | Mounted mechanic: MRA-F130-120D1, 6028628 | Programmable/configurable: yes
DBS60E-S4CC02000
Incremental encoders | DBS60 | DBS60E-S4CC02000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
RFU610-10713
RFID | RFU61x | RFU610-10713 | Radio approval: Taiwan | Frequency band: UHF (860 MHz ... 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67
AFS60S-SFKM262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SFKM262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 5 m
YG2A13-050UA1M8U13
Connectors and cables | Sensor-actuator cables | YG2A13-050UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, angled, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 5 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
O-ring SET DKV60
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | O-ring SET DKV60 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: O-ring set for DKV60 encoder | Suitable for: DKV60 measuring wheel encoder
BEF-EL-N14D08-FTMG
Mounting systems | Assembly accessories | BEF-EL-N14D08-FTMG | Description: Flow Conditioning Pipes for FTMg (FTMG-xxx08xxx) with process connection ¼" NPT in 1.4305
HYGADAPT-L.XAC
Mounting systems | Flanges and nozzles | HYGADAPT-L.XAC | Description: Lap-joint flange DN50 to DIN, form A, DIN11864-2; for 53 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)
DBS60E-BDEC00100
Incremental encoders | DBS60 | DBS60E-BDEC00100 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-S4AA00500
Incremental encoders | DFS60 | DFS60B-S4AA00500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500
LFV230-XASGATPM1100
Level sensors | LFV200 | LFV230-XASGATPM1100 | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 1,100 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
DFS60A-BEPB65536
Incremental encoders | DFS60 | DFS60A-BEPB65536 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 65,536
GRSE18S-N2447
Photoelectric sensors | GR18 | GRSE18S-N2447 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)
RSB1-1200G162123FF4GZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-1200G162123FF4GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 1,200 mm | Number of beams: 7 | Beam separation: 162 mm | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 2 m | Light source: LED | Type of light: Infrared light | Housing
MLG25A-0425R10501
Automation light grids | MLG-2 | MLG25A-0425R10501 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 25 mm | Operating range: 5 m | Detection height: 425 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 3.6 ms | Software feature (default setting - see technical data/features): 01
DFS20A-A2A1D001024
Incremental encoders | DFS2x | DFS20A-A2A1D001024 | Mechanical design: Solid shaft Square flange 3/8″ x 16 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 1,024
SRS50-HWA0-K22
Motor feedback systems | SRS/SRM50 | SRS50-HWA0-K22 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Solid shaft, face mount flange | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –30 °C ... +85 °C

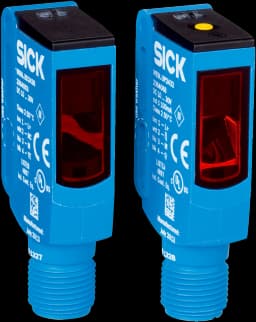

WSE9L-3N2437
Photoelectric sensors | W9 | WSE9L-3N2437 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Adjustment: Teach-in button | Laser class: 1 | Communication interface: -
DBS60E-B5APD1024
Incremental encoders | DBS60 | DBS60E-B5APD1024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
AFM60E-BEAL004096
Absolute encoders | AFS/AFM60 SSI | AFM60E-BEAL004096 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 3 m
