Търсене в каталога
41538 резултата за "SICK" · стр. 202/2077

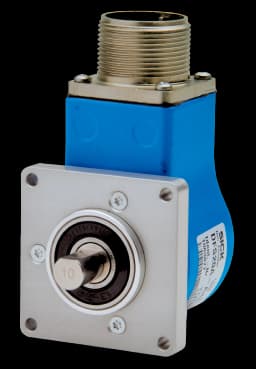

DFS20A-A2AAD002000
Incremental encoders | DFS2x | DFS20A-A2AAD002000 | Mechanical design: Solid shaft Square flange 3/8″ x 16 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 2,000
WTB250-2P2431
Photoelectric sensors | W250 | WTB250-2P2431 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: BEF-W250 mounting bracket
Infrarot-/USB-Adapter HIE-04
Integration modules and adapters | Interface modules | Infrarot-/USB-Adapter HIE-04 | Description: Infrared/USB adapter HIE-04; Data transfer up to 38400 baud; USB 2.0; cable length 2,25 m; ATEX II 2G Ex mb IIC T4; Protection class IP30; Operating temperature –25 to +60°C | –13 to +140°F
DBS60E-T5CQ00100
Incremental encoders | DBS60 | DBS60E-T5CQ00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
HTB18-P4A2AH
Photoelectric sensors | H18 Sure Sense | HTB18-P4A2AH | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Sensing range | Potentiometer, lef
Bar code tape
Codes | Positioning codes | Bar code tape | Description: 30 mm, height: 30 mm, measuring range: 140 m ... 160 m | Suitable for: OLM
YF2Z1D-030XXXMDSAC
Connectors and cables | Other connectors and cables | YF2Z1D-030XXXMDSAC | Description: Power, shielded, Serial, CAN, Digital I/Os | Connection type head A: Female connector, M12, 17-pin, straight | Connection type head B: Male connector, D-Sub-HD, 15-pin, straight | Signal type: Power, serial, CAN, digital I/Os | Cable: 3 m | Application: Drag chain operation
DBS60E-THAN01024
Incremental encoders | DBS60 | DBS60E-THAN01024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
WTB12-3P2531S46
Photoelectric sensors | W12-3 | WTB12-3P2531S46 | Sensing range max.: 30 mm ... 350 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Plug, M12, 5-pin | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Special features: Health output, swichting frequency 1500 Hz | Housing: Rectangular
TR10-SRM03P
Safety switches | TR10 Lock | TR10-SRM03P | Locking principle: Power to release | Locking force FZh: 1,300 N | Coding: Universally coded | Connection type Detail: Cable | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics)
MLG05S-1045A10819
Automation light grids | MLG-2 | MLG05S-1045A10819 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 8.5 m | Detection height: 1,045 mm | Length of cable: 0.22 m, 0.22 m | Response time: 23.3 ms | Software feature (default setting - see technical data/features): 19

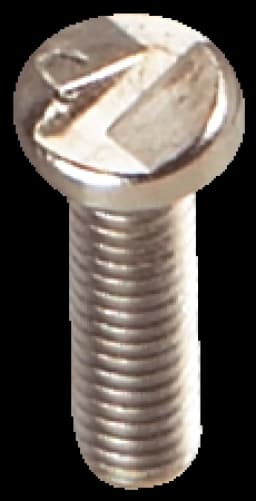

Safety screws M4 x 14
Mounting systems | Assembly accessories | Safety screws M4 x 14 | Packing unit: 10 pieces
DFS60E-S4EK00512
Incremental encoders | DFS60 | DFS60E-S4EK00512 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 512
C2MT-03024BBC03DE0
Safety light curtains | miniTwin | C2MT-03024BBC03DE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 24 mm | Scanning range: 8 m | Protective field height: 300 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso
WSE4FP-21A12100ZZZ
Photoelectric sensors | W4 | WSE4FP-21A12100ZZZ | Sensing range min. / max.: 0 m / 10 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular
CLV615-D2540
Fixed mount barcode scanners | CLV61x | CLV615-D2540 | Optical focus: Fixed focus | Communication interface: PROFINET | Type: Rotary angle variant dual port (5-pin) | Max. reading distance: 330 mm | Code resolution: 0.35 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
YF2Z1A-100XXXXLEBX
Connectors and cables | Other connectors and cables | YF2Z1A-100XXXXLEBX | Description: Shielded | Connection type head A: Female connector, M16, 12-pin, straight | Connection type head B: Flying leads | Cable: 10 m

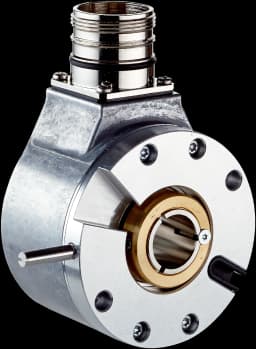

DBS60E-B2EAC1024
Incremental encoders | DBS60 | DBS60E-B2EAC1024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DAXLVN-1350BA4C0000000
Linear encoders | DAX | DAXLVN-1350BA4C0000000 | Design: DAX Low Profile | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,350 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Large block magnet MAG-B-200-01
DBS60E-T6AC00100
Incremental encoders | DBS60 | DBS60E-T6AC00100 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
