YM2A14-010UB3XLEAX
Connectors and cables | Sensor-actuator cables | YM2A14-010UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
PBT-RB4X0SGESESALA0Z
Pressure sensors | PBT | PBT-RB4X0SGESESALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 4 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Conne
MLG50N-1900P10501
Automation light grids | MLG-2 | MLG50N-1900P10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 50 mm | Operating range: 5 m | Detection height: 1,900 mm | Length of cable: 0.22 m, 0.21 m | Response time: 4.3 ms | Software feature (default setting - see technical data/features): 01
DFS60B-THPN10000
Incremental encoders | DFS60 | DFS60B-THPN10000 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 10,000
AFM60B-BGPA032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-BGPA032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Male connector, M23, 12-pin, radial | Programming interface: Over handheld programming tool, over SOPAS
TBS-1ASG10506NM
Temperature sensors | TBS | TBS-1ASG10506NM | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ¼ A | Insertion length/diameter of probe: 50 mm / 6 mm | Seal: NBR | Output signal: 2 x PNP | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: -
AFS60S-SHSS262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SHSS262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, axial, 3 m
AFM60B-S4AK032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-S4AK032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m

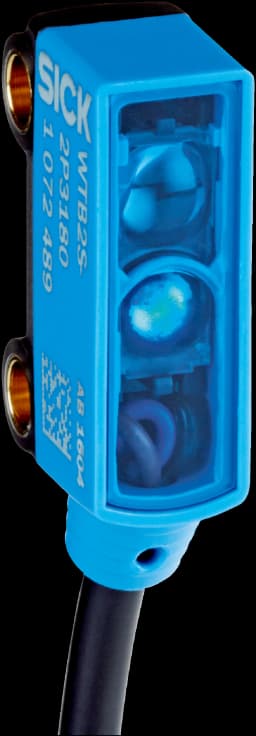

WTB2S-2N1380
Photoelectric sensors | W2 | WTB2S-2N1380 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Adjustment: None | Communication interface: -
DBS60E-B4EJD1024
Incremental encoders | DBS60 | DBS60E-B4EJD1024 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-R2CCD1024
Incremental encoders | DBS60 | DBS60E-R2CCD1024 | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
PBT-RB400SN1SS0ALA0Z
Pressure sensors | PBT | PBT-RB400SN1SS0ALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
DFS60E-S1WB01000
Incremental encoders | DFS60 | DFS60E-S1WB01000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 1,000
DBS50E-S5EK00500
Incremental encoders | DBS36/50 | DBS50E-S5EK00500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 500
C4P-SG13511C00, C4P-EG13511D00
Safety light curtains | deTec | C4P-SG13511C00, C4P-EG13511D00 | Product version: deTec4 HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 2.5 m | Protective field height: 1,350 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (with
DOL-0612G20M075KM0
Connectors and cables | Sensor-actuator cables | DOL-0612G20M075KM0 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M26, 12-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 12-wire, PVC | Connection systems: Flying leads | Application: Uncontaminated zones, Zones with chemicals
YF8U13-020VA1M8U13
Connectors and cables | Sensor-actuator cables | YF8U13-020VA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 3-wire, PVC | Application: Uncontaminated zones, Zones with chemicals, Robot
RSB1-0340E060050PF1GZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0340E060050PF1GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 340 mm | Number of beams: 5 | Beam separation: 60 mm | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire | Length of cable: 2 m | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised)
DFS60B-S4EK00250
Incremental encoders | DFS60 | DFS60B-S4EK00250 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 250
MAX48N-12C7FCP0390
Linear encoders | MAX | MAX48N-12C7FCP0390 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Male connector, M12 type S (20x20 mm), 5-pin | Measuring range: 0 mm ... 390 mm
