Търсене в каталога
41538 резултата за "SICK" · стр. 192/2077

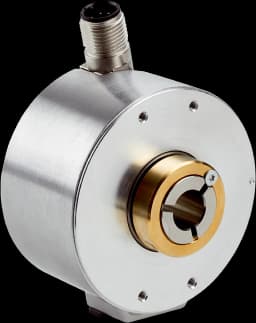

DUS60E-TJKFAABB
Incremental encoders | DUS60 | DUS60E-TJKFAABB | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 4-pin, universal | Output function: A and B output | Flange type / stator coupling: Without stator coupling, flange with 4 x M2,5 | Anti-dither: yes
PBT-RB016SGESSCAMA0G
Pressure sensors | PBT | PBT-RB016SGESSCAMA0G | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Copper | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
WTB8-P1131S12
Photoelectric sensors | W8 | WTB8-P1131S12 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with Tyco connector, 1.2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
DBS60E-T4EA00100
Incremental encoders | DBS60 | DBS60E-T4EA00100 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push-Pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60E-S4AA00720
Incremental encoders | DFS60 | DFS60E-S4AA00720 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 720

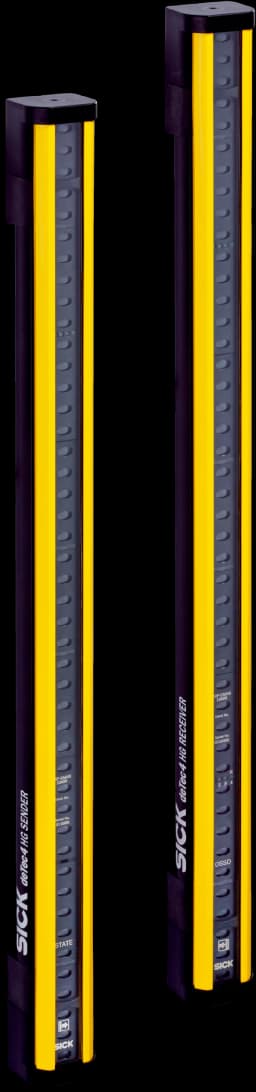

C4P-SG13531A00, C4P-EG13531C00
Safety light curtains | deTec | C4P-SG13531A00, C4P-EG13531C00 | Product version: deTec4 HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,350 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (witho
YFKA6B-015UM3MKA3A
Connectors and cables | Sensor-actuator cables | YFKA6B-015UM3MKA3A | Description: Incremental, shielded | Connection type head A: Female connector, M23, 12-pin, straight | Connection type head B: Male connector, M23, 12-pin, straight | Signal type: Incremental | Cable: 1.5 m, 12-wire, PUR, halogen-free | Application: Zones with oils and lubricants
GL6L-N4211
Photoelectric sensors | G6 | GL6L-N4211 | Sensing range min. / max.: 0.08 m / 12 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
IMF08-04NPPNC0S
Inductive proximity sensors | IMF | IMF08-04NPPNC0S | Housing: Standard design | Special applications: Hygienic and washdown zones, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant to cleaning agents, Temperature resistance
WLA4SP-21311130ZZZ
Photoelectric sensors | W4 | WLA4SP-21311130ZZZ | Sensing range min. / max.: 0 m / 7.1 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button | Housing: Rectan
AFM60I-BCRM262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-BCRM262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: SSI, SSI + incremental, programmable | Connection type: Cable, 12-wire, radial, 5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
MLG10N-0890E10501
Automation light grids | MLG-2 | MLG10N-0890E10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 890 mm | Length of cable: 0.22 m, 0.21 m | Response time: 8.2 ms | Software feature (default setting - see technical data/features): 01
WTB4FP-32162120A00
Photoelectric sensors | W4 | WTB4FP-32162120A00 | Sensing range min. / max.: 4 mm / 220 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 110 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, IO-Link, Teach-Turn a
DFS60B-BDAA02500
Incremental encoders | DFS60 | DFS60B-BDAA02500 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,500
YF2ASD-050XXXXLECE
Connectors and cables | Other connectors and cables | YF2ASD-050XXXXLECE | Description: Power, suitable for 2 A, shielded, Serial, CAN, Digital I/Os | Connection type head A: Female connector, M12, 17-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Power, serial, CAN, digital I/Os | Cable: 5 m, 17-wire, suitable for refrigeration, TPE | Connection systems: Flying leads
AFM60A-BCTA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-BCTA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Male connector, M23, 12-pin, radial
DOL-0J08-G0M2XS14
Connectors and cables | Other connectors and cables | DOL-0J08-G0M2XS14 | Description: HIPERFACE®, unshielded | Connection type head A: Female connector, JST, 8-pin, straight | Connection type head B: Flying leads | Signal type: HIPERFACE® | Cable: 0.125 m, 8-wire
AFS60S-SHKI262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SHKI262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, axial, 0.5 m
AHS36B-BAAC003600
Absolute encoders | AHS/AHM36 | AHS36B-BAAC003600 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 3,600 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal
PET-1RB250G1NMAMA
Pressure sensors | PET | PET-1RB250G1NMAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 250 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.6 mm pressure port | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
