Търсене в каталога
41538 резултата за "SICK" · стр. 191/2077
MAX30N-92V10HA0105
Linear encoders | MAX | MAX30N-92V10HA0105 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type L (24x24 mm), 4-pin | Measuring range: 0 mm ... 105 mm | Output signal: 0.5 V DC ... 4.5 V DC
ARS60-J4K00360
Absolute encoders | ARS60 | ARS60-J4K00360 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 360 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
MLG05W-0656H12501
Automation light grids | MLG-2 WebChecker | MLG05W-0656H12501 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 2,545 mm | Measuring field width detail (connection side/medium range/head side): 895 mm / 755 mm / 895 mm | Length of cable: 0.22 m, 0.27 m | Response time: 72.2 ms | Software feature (default setting - see technical data/features): 01

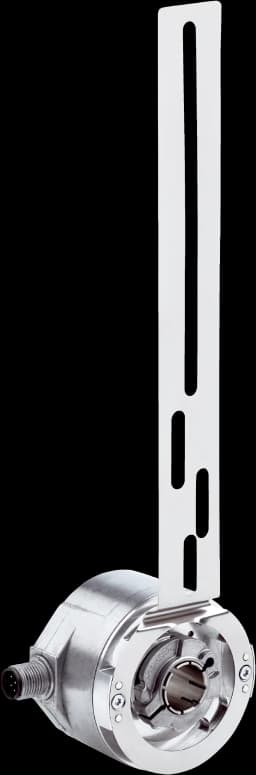

SFM60-HNBT3K02
Motor feedback systems | SFS/SFM60 | SFM60-HNBT3K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, M12, 8-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
UFN3-70N417
Fork sensors | UF | UFN3-70N417 | Communication interface: - | Adjustment: Teach-in button, cable | Fork width/depth: 3 mm, 69 mm | Switching output: NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 1.5 kHz | Response time: ≤ 250 µs | Enclosure rating: IP65
DBS60E-RHFA00360
Incremental encoders | DBS60 | DBS60E-RHFA00360 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 360 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-B7FJD1024
Incremental encoders | DBS60 | DBS60E-B7FJD1024 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm

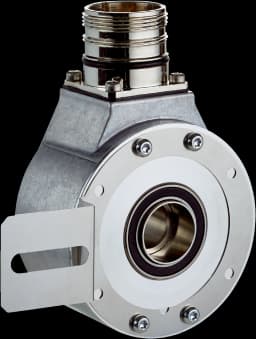

DBS60E-RGFAD1024
Incremental encoders | DBS60 | DBS60E-RGFAD1024 | Mechanical design: Through hollow shaft 14 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
LFP1600-B5NMC
Level sensors | LFP Cubic | LFP1600-B5NMC | Communication interface: IO-Link | Process connection: ¾" NPT | Probe length: 1,600 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes

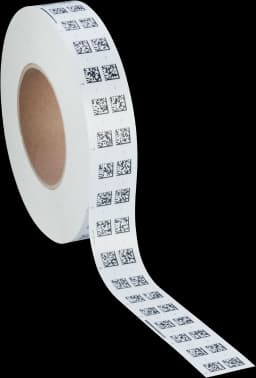

DATAMATRIX DOUBLE CODETAPE 0 - 50 m
Codes | Positioning codes | DATAMATRIX DOUBLE CODETAPE 0 - 50 m | Description: Code tape with two-line 2D Data Matrix codes for positioning using GLS6; code size 10 mm x 10 mm, self-adhesive, optimized for GLS6. | Suitable for: GLS6
DBS60E-THCP00100
Incremental encoders | DBS60 | DBS60E-THCP00100 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
RSB1-0450B150150HZ3CZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0450B150150HZ3CZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 450 mm | Number of beams: 2 | Beam separation: 150 mm | Switching output: PNP: open collector | Connection type: Cable with connector M8, 4-pin, with knurled nut | Length of cable: 300 mm | Light source: LED | Type of light: Infrared light | Housing material: Alumin
MLG05N-0745C10501
Automation light grids | MLG-2 | MLG05N-0745C10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 5 mm | Operating range: 5 m | Detection height: 745 mm | Length of cable: 0.22 m, 0.21 m | Response time: 12.9 ms | Software feature (default setting - see technical data/features): 01
LFP0340-G3NMB
Level sensors | LFP Inox | LFP0340-G3NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 340 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With closed cover | Wetted parts: Stainless steel 1.4404 / 316L, PEEK | Housing material
DFS60B-S4EA00006
Incremental encoders | DFS60 | DFS60B-S4EA00006 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 6
SPZ-58Z-012-P
Shaft adaptation | Collets | SPZ-58Z-012-P | Product segment: Shaft adaptation | Product: Collets | Description: Collet plastic (PEEK) insulated for hollow shaft, shaft diameter 12 mm, outer diameter 5/8" (15.875 mm)
HTB18-P4A2BAD04
Photoelectric sensors | H18 Sure Sense | HTB18-P4A2BAD04 | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: None | Potentiometer, left: Non
SFM60S-HPKB0K02
Safe motor feedback systems | SFS/SFM60-S | SFM60S-HPKB0K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: yes | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire, universal, 1.5 m | Technology: Optical | Operating temperature range: –30 °C ... +85 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
SLG25S-040SAKA1K01
Automation light grids | FlexChain | SLG25S-040SAKA1K01 | Device version: FlexChain Guest | Optical light exit: Slim | Beam separation: 25 mm | Operating range: 4 m | Detection height: 400 mm | Length of cable: 0.5 m
MAX48N-12V10BE0300
Linear encoders | MAX | MAX48N-12V10BE0300 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 300 mm | Output signal: 0.5 V DC ... 4.5 V DC
