41538 резултата за "SICK" · стр. 188/2077
RSB1-0409B137137PZ4DS04ZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0409B137137PZ4DS04ZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 409 mm | Number of beams: 2 | Beam separation: 137 mm | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 500 mm | Light source: LED | Type of light: Infrared light | Housi
WL4SL-3F3232
Photoelectric sensors | W4 | WL4SL-3F3232 | Sensing range max.: 0 m ... 12 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Teach-in button | Housing: R
SAS4-S028P3TS1W01
Automation light grids | SLG | SAS4-S028P3TS1W01 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 280 mm | Response time: 57 ms
DAXLAN-1150BA4C0000D00
Linear encoders | DAX | DAXLAN-1150BA4C0000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,150 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Large block magnet MAG-B-200-01
PBT-RB400SG4SS0ULA0Z
Pressure sensors | PBT | PBT-RB400SG4SS0ULA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 5 V, 3-wire | Connection t

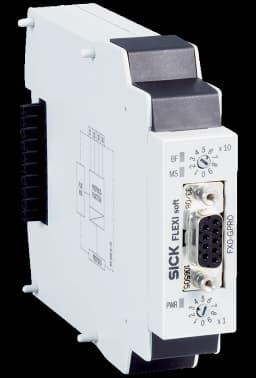

FX0-GPRO00010
Safety controllers | Flexi Soft | FX0-GPRO00010 | Module: Gateway | Fieldbus, industrial network: PROFIBUS DP | Connection type: 1 x female connector, D-Sub, 9-pin | Protective coating for more challenging ambient conditions: yes
DBS60E-BHEJ00100
Incremental encoders | DBS60 | DBS60E-BHEJ00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-TEEM01000
Incremental encoders | DFS60 | DFS60B-TEEM01000 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,000
RSB1-0655H065050AB5BZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0655H065050AB5BZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 655 mm | Number of beams: 8 | Beam separation: 65 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with male connector M8, 4-pin, snap | Length of cable: 150 mm | Light source: LED | Type of light: Infrared li
Mounting kit
Mounting systems | Brackets | Mounting kit | Description: Mounting kit for laser modules and Ranger3
GRSE18-N2442
Photoelectric sensors | GR18 | GRSE18-N2442 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)
SGS4-F140P7PS1W02
Automation light grids | SLG | SGS4-F140P7PS1W02 | Optical light exit: Flat | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 7 m | Detection height: 1,400 mm | Response time: 19 ms

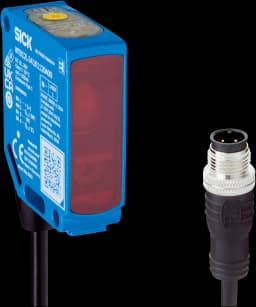

WTF12L-34162120A00
Photoelectric sensors | W12 | WTF12L-34162120A00 | Sensing range min. / max.: 80 mm / 350 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Foreground suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 315 mm | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teach-Turn a
WT24-2B420S14
Photoelectric sensors | W24 | WT24-2B420S14 | Sensing range max.: 100 mm ... 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN, PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer
DBS60E-RDCPD1024
Incremental encoders | DBS60 | DBS60E-RDCPD1024 | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
MLG05W-0414H12503
Automation light grids | MLG-2 WebChecker | MLG05W-0414H12503 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,345 mm | Measuring field width detail (connection side/medium range/head side): 595 mm / 155 mm / 595 mm | Length of cable: 0.22 m, 0.27 m | Response time: 48.5 ms | Software feature (default setting - see technical data/features): 03
DFS60E-S4EL00500
Incremental encoders | DFS60 | DFS60E-S4EL00500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 500
DFS60E-S1WA01024
Incremental encoders | DFS60 | DFS60E-S1WA01024 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024
VSE180-2P41134
Photoelectric sensors | V180 | VSE180-2P41134 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: -
DBS60E-TEFQ01024
Incremental encoders | DBS60 | DBS60E-TEFQ01024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
