41538 резултата за "SICK" · стр. 187/2077
DFS60I-BCAC65536
Incremental encoders | DFS60 | DFS60I-BCAC65536 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 65,536 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
MB1-DH1
Actuators and bolts | MB1 | MB1-DH1 | Catch release button/ANSI-compliant locking mechanism: no | Escape release: no | Frame plate with latching function: no | Description: Door handle with hole for catch release button
IME08-2N5NSZT0K
Inductive proximity sensors | IME | IME08-2N5NSZT0K | Housing: Short-body | Sensing range Sn: 2.5 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Connector M8, 3-pin
LFV230-XXHCLCPV0200
Level sensors | LFV200 | LFV230-XXHCLCPV0200 | Communication interface: - | Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm) | Probe length: 200 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
AFM60S-SGKB262144
Safety encoders | AFS/AFM60S Pro | AFM60S-SGKB262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, axial
DBS60E-B6CPD1024
Incremental encoders | DBS60 | DBS60E-B6CPD1024 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
BTF13-C1QM1049
Wire draw encoders | HighLine | BTF13-C1QM1049 | Measuring range: 0 m ... 10 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-S3CC014X12, 1065999 | Mounted mechanic: MRA-F130-110D2, 6028627 | Programmable/configurable: yes
DUS60E-RDKF0ACA
Incremental encoders | DUS60 | DUS60E-RDKF0ACA | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 4-pin, universal | Output function: A and B output | Flange type / stator coupling: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm | Anti-dither: no

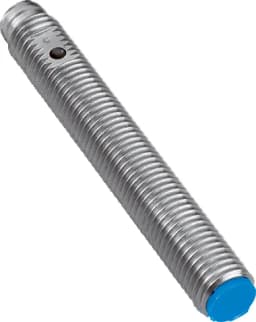

IME08-02BPSZWDSS06
Inductive proximity sensors | IME | IME08-02BPSZWDSS06 | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 3.1 m
DFS60B-S1UA05000
Incremental encoders | DFS60 | DFS60B-S1UA05000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
GTB10-R9822
Photoelectric sensors | G10 | GTB10-R9822 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 5 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-G10UC01
YF2AP4-300PA2XLEAX
Connectors and cables | Sensor-actuator cables | YF2AP4-300PA2XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 30 m, 4-wire, PP | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried ou
DFS60B-S4AB02500
Incremental encoders | DFS60 | DFS60B-S4AB02500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 2,500
DFS60B-S4CM02500
Incremental encoders | DFS60 | DFS60B-S4CM02500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,500
IME12-10NPOZW2S
Inductive proximity sensors | IME | IME12-10NPOZW2S | Housing: Standard design | Sensing range Sn: 10 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
DFS60E-TBEL01000
Incremental encoders | DFS60 | DFS60E-TBEL01000 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,000
ARS60-J4K01024
Absolute encoders | ARS60 | ARS60-J4K01024 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 1,024 (10 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
C4P-SA09011A00, C4P-EA09011D00
Safety light curtains | deTec | C4P-SA09011A00, C4P-EA09011D00 | Product version: deTec4 | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 20 m | Protective field height: 900 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (without extension connection or with M12 female connector, 5-pin) | End cap with integrated LED: yes |
ARS60-G4K00360
Absolute encoders | ARS60 | ARS60-G4K00360 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 360 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
GSE6SP-32A121AEZZZ
Photoelectric sensors | G6 | GSE6SP-32A121AEZZZ | Sensing range min. / max.: 0 m / 20 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 337 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: None | Housing: Rectangular
