DBS60E-BFEQ00100
Incremental encoders | DBS60 | DBS60E-BFEQ00100 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
MAX48N-32A10MG0500
Linear encoders | MAX | MAX48N-32A10MG0500 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 500 mm
AFS60S-SJSM262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SJSM262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Max. resolution: 18 bit (262,144) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 5 m
AFM60A-TCTA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TCTA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Male connector, M23, 12-pin, radial
DBS60E-TEECD1024
Incremental encoders | DBS60 | DBS60E-TEECD1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DFS60B-BEAM05000
Incremental encoders | DFS60 | DFS60B-BEAM05000 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 5,000
DBS50E-S5AK02000
Incremental encoders | DBS36/50 | DBS50E-S5AK02000 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,000
DOL-MS10-G20MMA3
Connectors and cables | Other connectors and cables | DOL-MS10-G20MMA3 | Description: Shielded | Connection type head A: Female connector, MS/10, 10-pin, straight | Connection type head B: Flying leads | Cable: 20 m, 8-wire
MLG10S-0890A10501
Automation light grids | MLG-2 | MLG10S-0890A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 890 mm | Length of cable: 0.22 m, 0.22 m | Response time: 11.2 ms | Software feature (default setting - see technical data/features): 01
ANM58B-BHNNB000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BHNNB000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Programming interface: Over PLC-Engineering-Tool
MLG30A-0420R50501
Automation light grids | MLG-2 | MLG30A-0420R50501 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: Protective housing IP69K | Beam separation: 30 mm | Operating range: 3.75 m | Detection height: 420 mm | Length of cable: 0.39 m, 0.39 m | Response time: 3.6 ms | Software feature (default setting - see technical data/features): 01
MAX48N-32V20K20157
Linear encoders | MAX | MAX48N-32V20K20157 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Connecting cable, 3-wire, 500 mm | Measuring range: 0 mm ... 157 mm | Output signal: 0.25 V DC ... 4.75 V DC
DFS60E-TDEC02048
Incremental encoders | DFS60 | DFS60E-TDEC02048 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
PBS2-RB1X6SN1SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RB1X6SN1SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1.6 bar, 0 psi ... 23 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-
ARS60-F4L00256
Absolute encoders | ARS60 | ARS60-F4L00256 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 256 (8 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 3 m
Heavy duty mounting kit
Mounting systems | Brackets | Heavy duty mounting kit | Description: Heavy duty mounting bracket, rugged type for shocks up to 50 G, not compatible with weather protection hood (2085939, 2085938) | Dimensions (W x H x L): 210 mm x 203 mm x 108 mm | Material: Aluminum | Details: Aluminum (EN AW 6082) | Items supplied: Mounting bracket, 4 M5 x 22 cylinder head screws for sensor mounting and matching washers, 4 SW13 M8 x 35 hexagon socket screws for wall mounting and matching washers | Suitable for
WLD4FP-21A111A0ZZZ
Photoelectric sensors | W4 | WLD4FP-21A111A0ZZZ | Sensing range min. / max.: 0 m / 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular

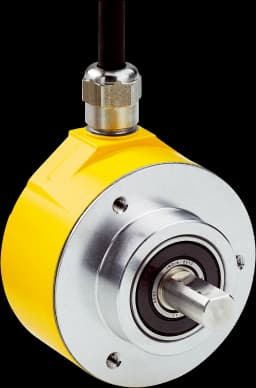

AFS60S-SHSM262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SHSM262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 5 m
SFS60-HPAB1K02
Motor feedback systems | SFS/SFM60 | SFS60-HPAB1K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
RSB1-0570D070180BA4FZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0570D070180BA4FZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 570 mm | Number of beams: 4 | Beam separation: 70 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 1.5 m | Light source: LED | Type of light: Infr
