41538 резултата за "SICK" · стр. 177/2077
DBS60E-R4ECC1024
Incremental encoders | DBS60 | DBS60E-R4ECC1024 | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
PBSH-RB2X5ST1S0GMA0Z
Pressure sensors | PBS Hygienic | PBSH-RB2X5ST1S0GMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x NPN + 4 mA ... 20 mA | Connectio
C4C-SB12010A10000, C4C-EB12010A10000
Safety light curtains | deTec | C4C-SB12010A10000, C4C-EB12010A10000 | Product version: deTec4 Core IP69K | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 8.5 m | Protective field height: 1,200 mm | Connection type: Connecting cable, 15 m, flying leads, 5-wire | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15 m, receiver in I
DLS40E-BBAV00600
Incremental encoders | DLS40 | DLS40E-BBAV00600 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 2 m | Pulses per revolution: 600
DBS60E-BGEQ00100
Incremental encoders | DBS60 | DBS60E-BGEQ00100 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
Optics protection hood (PMMA)
Reflectors and optics | Lenses | Optics protection hood (PMMA) | Description: Optics protection hood, short, enclosure rating IP 67, length: 22.7 mm, PMMA, for use with S-mount lens with focal length 9.6 mm or 17.5 mm
DFS60B-TDEA05000
Incremental encoders | DFS60 | DFS60B-TDEA05000 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
YF2A14-010VB3M2A14
Connectors and cables | Sensor-actuator cables | YF2A14-010VB3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
CDM490-0001
Junction boxes | CDM | CDM490-0001 | Brief description: Modular connection module for one sensor | Communication interface: EthernetSerialCANPROFIBUS DPDeviceNet™ | Communication Interface detail: RS-232 | Supported products: CLV69xLMS400
MAX30N-72PBDBE0500
Linear encoders | MAX | MAX30N-72PBDBE0500 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: PWM | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 500 mm

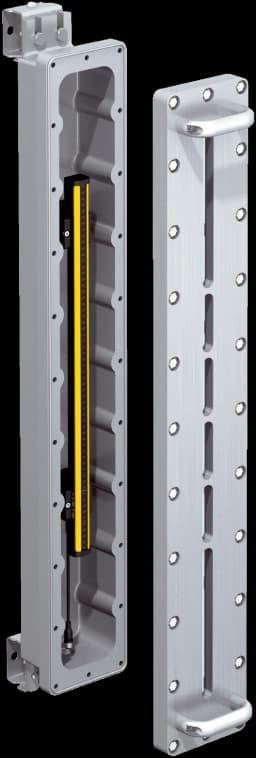

EXE-09D0340A020
Safety light-beam sensors | deTem | EXE-09D0340A020 | Product version: deTem4 Core Ex | Functional principle: Sender/receiver | System part: Receiver | Application: Explosive areas | Ex-approvals: ATEX for gas: II 2 G Ex db IIB T6 Gb, ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X, NFPA 70/NEC 500 Class I, Div. 1, Groups C and D, NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G, NFPA 70/NEC 500 Class III, Div. 1 | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Number of
DAXSAN-0225SA000900D00
Linear encoders | DAX | DAXSAN-0225SA000900D00 | Design: DAX Slider | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 225 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Slide magnet MAG-S-H29-01
AFM60I-BHRL262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-BHRL262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: SSI, SSI + incremental, programmable | Connection type: Cable, 12-wire, radial, 3 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
WTB2S-2P1310
Photoelectric sensors | W2 | WTB2S-2P1310 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -
Heavy-duty additional front screen
Device protection and care | Front screens and front screen protection | Heavy-duty additional front screen | Description: Durable front screen protection set (protects sensors from damage by flying sparks and welding beads) | Items supplied: Incl. sliding nuts and fastening screws
WTB2S-2P3030S21
Photoelectric sensors | W2 | WTB2S-2P3030S21 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 700 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
DFS60B-S4WA00032
Incremental encoders | DFS60 | DFS60B-S4WA00032 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 32
IME18-12NPSZW2K
Inductive proximity sensors | IME | IME18-12NPSZW2K | Housing: Short-body | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
AFS60B-S1AA004096
Absolute encoders | AFS/AFM60 SSI | AFS60B-S1AA004096 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 4,096 (12 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
microScan3 optics cover with screws for use with airWiper
Device protection and care | Front screens and front screen protection | microScan3 optics cover with screws for use with airWiper | Description: microScan3 optics cover with extra long screws for use with airWiper
