DBS60I-W4FN01024
Incremental encoders | DBS60 | DBS60I-W4FN01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K
IME18-20NNSZW2K
Inductive proximity sensors | IME | IME18-20NNSZW2K | Housing: Short-body | Sensing range Sn: 20 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
DBS60E-B4EP00100
Incremental encoders | DBS60 | DBS60E-B4EP00100 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

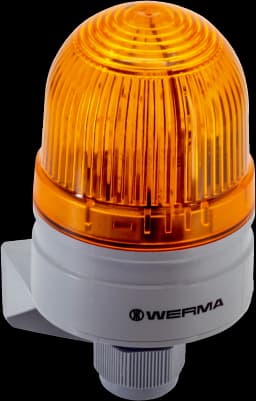

LED light
Signal transmitters | Optical signal transmitters | LED light | Description: LED light for visually indicating the sensor status, e.g., muting status or ADO
DFS60E-BEEL00360
Incremental encoders | DFS60 | DFS60E-BEEL00360 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 360
MLG25N-1625H50501
Automation light grids | MLG-2 | MLG25N-1625H50501 | Device version: ProNet – extended functionality including fieldbus | Option: Protective housing IP69K | Beam separation: 25 mm | Operating range: 3.75 m | Detection height: 1,625 mm | Length of cable: 1.4 m, 1.4 m | Response time: 6.4 ms | Software feature (default setting - see technical data/features): 01
DBS60E-RJCCD1024
Incremental encoders | DBS60 | DBS60E-RJCCD1024 | Mechanical design: Through hollow shaft 5/8″ (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
HL18-F4G3BD
Photoelectric sensors | H18 Sure Sense | HL18-F4G3BD | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark sw
DSL-2317-G01MJB1
Connectors and cables | Other connectors and cables | DSL-2317-G01MJB1 | Description: HIPERFACE®, unshielded | Connection type head A: Female connector, DUBOX, 8-pin, straight | Connection type head B: Male connector, M23, 17-pin, straight | Signal type: HIPERFACE® | Cable: 1 m, 8-wire
DBS50E-S5CK01024
Incremental encoders | DBS36/50 | DBS50E-S5CK01024 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
DFS60B-BDEM10000
Incremental encoders | DFS60 | DFS60B-BDEM10000 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 10,000
CLV642-0120
Fixed mount barcode scanners | CLV64x | CLV642-0120 | Optical focus: Dynamic focus control | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Rotary angle variant single port (12-pin) | Max. reading distance: 345 mm | Code resolution: 0.15 mm ... 0.25 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
MLG05W-0252R12503
Automation light grids | MLG-2 WebChecker | MLG05W-0252R12503 | Device version: Web guiding | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,345 mm | Measuring field width detail (connection side/medium range/head side): 295 mm / 755 mm / 295 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 24.9 ms | Software feature (default setting - see technical data/features): 03
STR1-SAXF03P8
Safety switches | STR1 | STR1-SAXF03P8 | Coding: Permanently coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable, 7-wire | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
YF8U14-020UA3XLEAX
Connectors and cables | Sensor-actuator cables | YF8U14-020UA3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
MLG20N-1480E10501
Automation light grids | MLG-2 | MLG20N-1480E10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 1,480 mm | Length of cable: 0.22 m, 0.21 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 01

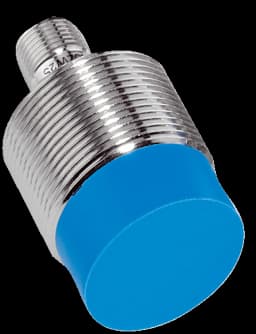

IME30-15NPOZC0K
Inductive proximity sensors | IME | IME30-15NPOZC0K | Housing: Short-body | Sensing range Sn: 15 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Male connector M12, 4-pin
LBV310-LKAGDCAMX
Level sensors | LBV3xx | LBV310-LKAGDCAMX | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | ATEX: ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb, ATEX II 1D, 1/2D, 2
Protective cap
Device protection and care | Protective caps and hoods | Protective cap | Description: Protective cap for the mounting holes of the sensor and actuator
AFS60S-TBKL262144
Safety encoders | AFS/AFM60S Pro | AFS60S-TBKL262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 8 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 3 m
