41538 резултата за "SICK" · стр. 171/2077
LBV310-XXANDRKNX
Level sensors | LBV3xx | LBV310-XXANDRKNX | Communication interface: - | Process connection: 1 1/2" NPT PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: ½" NPT | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Plastic | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
PBSH-RB1X6ST2S0NMA0Z
Pressure sensors | PBS Hygienic | PBSH-RB1X6ST2S0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1.6 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 2" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP + 4 mA ... 20 mA | C

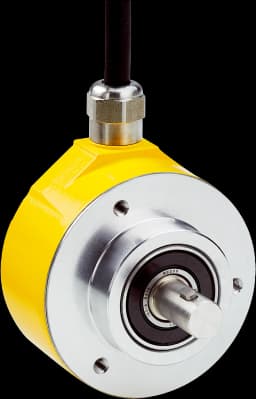

AFS60S-SEKJ262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SEKJ262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 0.5 m
SIG350-0005AP100
Network devices | SIG350 | SIG350-0005AP100 | Product category: IO-Link Master | Communication interface: IO-LinkEthernetEtherNet/IP™REST APIMQTTOPC UA | Supported products: IO-Link DevicesBinary switching sensorsBinary actuators | Scope of delivery: SIG350-0005AP100Marking labelsQuickstart | Further functions: Web server integratedIIoT interface available (dual talk)
MAGNET HOLDER
Mounting systems | Assembly accessories | MAGNET HOLDER | Description: Magnet holder
BEF-MU-M12N1
Mounting systems | Assembly accessories | BEF-MU-M12N1 | Description: M12 x 1 hexagon nut | Material: Stainless steel | Details: Stainless steel V4A | Items supplied: 2 pieces
LFV230-XXSGBCPV0270
Level sensors | LFV200 | LFV230-XXSGBCPV0270 | Communication interface: - | Process connection: G ¾ A PN 64 | Probe length: 270 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
AFS60B-S4AM032768
Absolute encoders | AFS/AFM60 SSI | AFS60B-S4AM032768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 5 m
HL18-A4A3AA
Photoelectric sensors | H18 Sure Sense | HL18-A4A3AA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right:

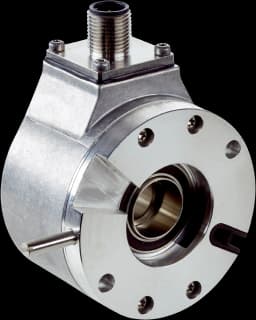

DBS60E-R6ACC1024
Incremental encoders | DBS60 | DBS60E-R6ACC1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-S4EN02500
Incremental encoders | DBS60 | DBS60E-S4EN02500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 2,500 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4

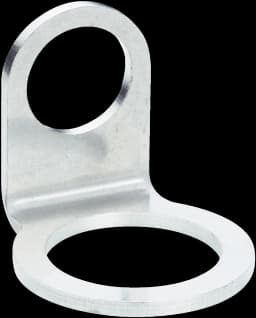

BEF-KHS-N10N
Mounting systems | Brackets | BEF-KHS-N10N | Description: Plate N10N for universal clamps | Material: Stainless steel, stainless steel | Details: Stainless steel 1.4571 (sheet), Stainless steel 1.4408 (clamp) | Items supplied: Universal clamp (5322627), mounting hardware | Usable for: M30 round sensors
AFS60B-BEAA008192
Absolute encoders | AFS/AFM60 SSI | AFS60B-BEAA008192 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 8,192 (13 bit) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
MLG05W-0D00H12503
Automation light grids | MLG-2 WebChecker | MLG05W-0D00H12503 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,945 mm | Measuring field width detail (connection side/medium range/head side): 1,945 mm / 0 mm / 0 mm | Length of cable: 0.22 m, 0.27 m | Response time: 78.1 ms | Software feature (default setting - see technical data/features): 03
GL6-P4511S37
Photoelectric sensors | G6 | GL6-P4511S37 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Special features: Reduced signal indicator LED brightness |
DBS60E-S4EA00100
Incremental encoders | DBS60 | DBS60E-S4EA00100 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DBS36E-S8EJ00250
Incremental encoders | DBS36/50 | DBS36E-S8EJ00250 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 250
SLG50S-080SBKB1K01
Automation light grids | FlexChain | SLG50S-080SBKB1K01 | Device version: FlexChain Guest | Optical light exit: Slim | Beam separation: 50 mm | Operating range: 6.5 m | Detection height: 800 mm | Length of cable: 1.5 m
AFM60S-TEKK004096
Safety encoders | AFS/AFM60S Pro | AFM60S-TEKK004096 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Through hollow shaft 12 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 1.5 m
DFS60A-BDEC05000
Incremental encoders | DFS60 | DFS60A-BDEC05000 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000
