MLG05W-0100N12503
Automation light grids | MLG-2 WebChecker | MLG05W-0100N12503 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 145 mm | Measuring field width detail (connection side/medium range/head side): 145 mm / 0 mm / 0 mm | Length of cable: 0.22 m, 0.27 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 03
BEF-WK-XLG
Mounting systems | Brackets | BEF-WK-XLG | Description: Metal mounting bracket, compact | Material: Steel | Details: Steel, zinc coated | Items supplied: Set, consisting of 4 pieces, without mounting hardware

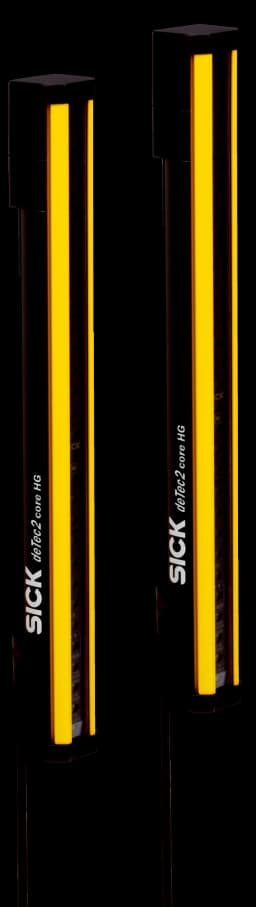

C2C-SG19530A10000, C2C-EG19530A10000
Safety light curtains | deTec | C2C-SG19530A10000, C2C-EG19530A10000 | Product version: deTec2 Core HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,950 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter
DAXTVN-1000RA130100400
Linear encoders | DAX | DAXTVN-1000RA130100400 | Design: DAX Threaded | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,000 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 50 mm / 63 mm | Magnet type: Ring magnet MAG-O-S174-01 | Thread offset: Without thread offset | Thread shape: M18 x 1.5
IHM06-04NPSVW2K
Inductive proximity sensors | IMM | IHM06-04NPSVW2K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
IMI12-04BPSVU2S
Inductive proximity sensors | IMI | IMI12-04BPSVU2S | Special applications: Zones with coolants and lubricants, Difficult application conditions | Special features: Sensing face made of stainless steel V2A, Resistant against coolant lubricants
AFS60A-S1PC262144
Absolute encoders | AFS/AFM60 SSI | AFS60A-S1PC262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, programmable | Connection type: Male connector, M12, 8-pin, radial | Programming interface: Over handheld programming tool, over SOPAS
MLG05W-0858H12501
Automation light grids | MLG-2 WebChecker | MLG05W-0858H12501 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 3,145 mm | Measuring field width detail (connection side/medium range/head side): 1,195 mm / 755 mm / 1,195 mm | Length of cable: 0.22 m, 0.27 m | Response time: 95.8 ms | Software feature (default setting - see technical data/features): 01
LFP1150-G1NMB
Level sensors | LFP Inox | LFP1150-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,150 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4
AHM36A-S4PL014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4PL014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 3 m | Programming interface: Over handheld programming tool, over SOPAS
DBS60E-TECC00100
Incremental encoders | DBS60 | DBS60E-TECC00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-B4FMB1024
Incremental encoders | DBS60 | DBS60E-B4FMB1024 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Stator coupling, 2-sided, screw hole circle 63 mm
WT100-2N3439
Photoelectric sensors | W100 | WT100-2N3439 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A
IMX18-30NPOZU2S
Inductive proximity sensors | IMX | IMX18-30NPOZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 30 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator
PFT-2C5KM
Pressure sensors | PFT-2 | PFT-2C5KM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
CDM490-0101
Junction boxes | CDM | CDM490-0101 | Brief description: Modular connection module for one sensor, Host and AUX interface available on face plate | Communication interface: SerialCAN | Communication Interface detail: RS-232 | Supported products: CLV69xLMS400
MLG10S-0440A10501
Automation light grids | MLG-2 | MLG10S-0440A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 440 mm | Length of cable: 0.22 m, 0.22 m | Response time: 6.7 ms | Software feature (default setting - see technical data/features): 01
PLB-52D0100
Robot guidance systems | PLB | PLB-52D0100 | Items supplied: C57 camera, PLB Application Software | Part size: Depends on part geometry and application | Part characteristics: Simple and complex part shapes | Bin size: Large
DBS60E-B8AJ00100
Incremental encoders | DBS60 | DBS60E-B8AJ00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
PBT-RP300SG1SSNVMC0Z
Pressure sensors | PBT | PBT-RP300SG1SSNVMC0Z | Pressure type: Gauge pressure | Pressure unit: psi | Measuring range: 0 psi ... 300 psi | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type:
