GL6-P7211P05
Photoelectric sensors | G6 | GL6-P7211P05 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular | Included with delive
MAX48A-32C02FC2000
Linear encoders | MAX | MAX48A-32C02FC2000 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Male connector, M12 type L (24x24 mm), 5-pin | Measuring range: 0 mm ... 2,000 mm
GTB10-P4001S23
Photoelectric sensors | G10 | GTB10-P4001S23 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
DFS60B-BCED03600
Incremental encoders | DFS60 | DFS60B-BCED03600 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, axial | Pulses per revolution: 3,600
RE27-SA68L
Safety switches | RE2 | RE27-SA68L | Systemteil: Sensor with actuator | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 1 | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: yes
ARS60-H4L00512
Absolute encoders | ARS60 | ARS60-H4L00512 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 512 (9 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 3 m
DBS60E-RJFK05000
Incremental encoders | DBS60 | DBS60E-RJFK05000 | Mechanical design: Through hollow shaft 5/8″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60I-BHCN65536
Incremental encoders | DFS60 | DFS60I-BHCN65536 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 65,536 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DAXLAN-1450BA0C0000D00
Linear encoders | DAX | DAXLAN-1450BA0C0000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,450 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
C2C-SV07530A10000, C2C-EV07530A10000
Safety light curtains | deTec | C2C-SV07530A10000, C2C-EV07530A10000 | Product version: deTec2 Core Vibes | System part: Pair | Application: Machines with strong shock or vibration loads | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 750 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instru

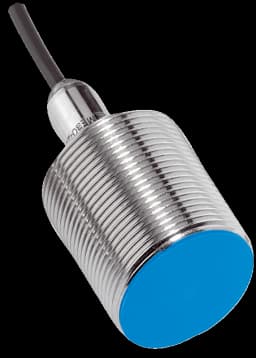

IME30-10BPOZW2K
Inductive proximity sensors | IME | IME30-10BPOZW2K | Housing: Short-body | Sensing range Sn: 10 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m
AFS60A-TGAC262144
Absolute encoders | AFS/AFM60 SSI | AFS60A-TGAC262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial

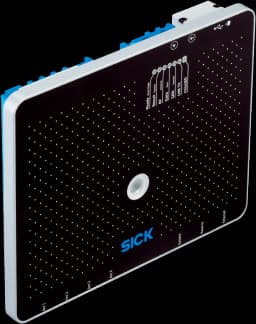

RFU630-04104
RFID | RFU63x | RFU630-04104 | Radio approval: Brazilian | Frequency band: UHF (860 MHz ... 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67
PBT-RB040SN1SS0AMA0Z
Pressure sensors | PBT | PBT-RB040SN1SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 40 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
PBT-RM6X0AN1SS0AMA0Z
Pressure sensors | PBT | PBT-RM6X0AN1SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: MPa | Measuring range: 0 MPa ... 6 MPa | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
IMS18-08BNSNC0S
Inductive proximity sensors | IMS | IMS18-08BNSNC0S | Special applications: Mobile machines, Hygienic and washdown zones, Difficult application conditions | Special features: Resistant to cleaning agents, Temperature resistance
MAX30N-72V10AE0200
Linear encoders | MAX | MAX30N-72V10AE0200 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 200 mm | Output signal: 0.5 V DC ... 4.5 V DC

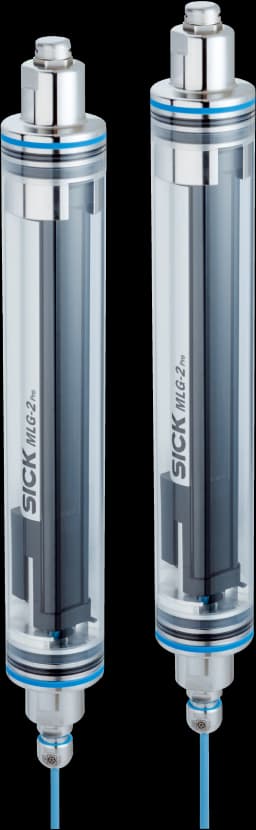

MLG20A-1480B50501
Automation light grids | MLG-2 | MLG20A-1480B50501 | Device version: Pro - Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: Protective housing IP69K | Beam separation: 20 mm | Operating range: 3.75 m | Detection height: 1,480 mm | Length of cable: 0.39 m, 0.39 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 01
DBS60E-BBCA00100
Incremental encoders | DBS60 | DBS60E-BBCA00100 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
WSG-DSDT
Device protection and care | Protective caps and hoods | WSG-DSDT | Description: Weatherproof housing | Items supplied: Incl. protective tube against external light
