WFL30-60B416
Fork sensors | WFL | WFL30-60B416 | Adjustment: Plus/minus button | Light source: Laser | Type of light: Visible red light | Fork width/depth: 30 mm, 59 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
MLG20A-1180R10501
Automation light grids | MLG-2 | MLG20A-1180R10501 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 1,180 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 5.9 ms | Software feature (default setting - see technical data/features): 01
DBS60E-THEL01024
Incremental encoders | DBS60 | DBS60E-THEL01024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

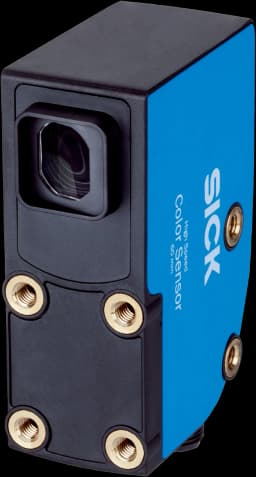

CSX-WNFA541252ZZZZ
Color sensors | CSS/CSX High Speed | CSX-WNFA541252ZZZZ | Light source: LED | Housing design: Large | Communication interface: - | Sensing distance: 60 mm | Switching output: NPN | Light spot size: Ø 12 mm | Light spot direction: Round, large | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin
WLD4FP-213111A0ZZZ
Photoelectric sensors | W4 | WLD4FP-213111A0ZZZ | Sensing range min. / max.: 0 m / 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular

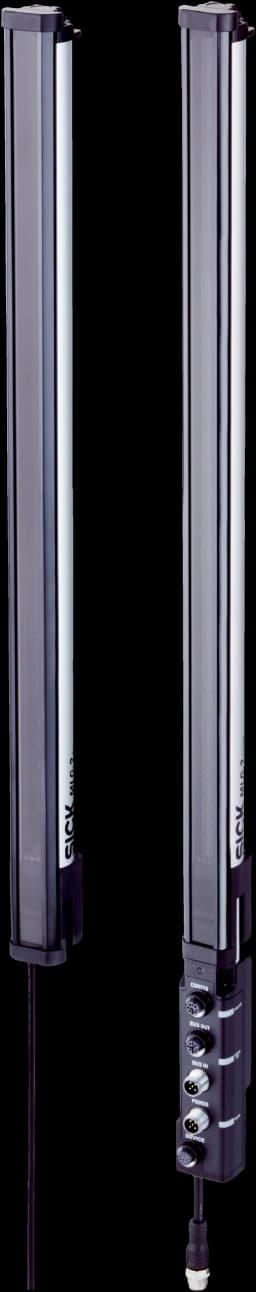

MLG10N-0740P10502
Automation light grids | MLG-2 | MLG10N-0740P10502 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 740 mm | Length of cable: 0.22 m, 0.21 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 02
IME12-02BNOZC0K
Inductive proximity sensors | IME | IME12-02BNOZC0K | Housing: Short-body | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin
LFV200-XASNBCPV
Level sensors | LFV200 | LFV200-XASNBCPV | Communication interface: - | Process connection: ¾" NPT PN 64 | Probe length: 67 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetoo
PBS2-RB1X0SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-RB1X0SG1SSDQ5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1 bar, 0 psi ... 15 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO-
DFS60B-BDCA08192
Incremental encoders | DFS60 | DFS60B-BDCA08192 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 8,192

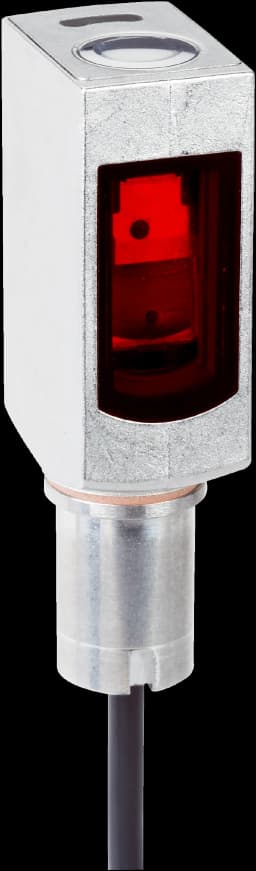

WTB4SL-3P7262H
Photoelectric sensors | W4 | WTB4SL-3P7262H | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular
IHM06-04NNSVW2K
Inductive proximity sensors | IMM | IHM06-04NNSVW2K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
AFM60A-BHKA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-BHKA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial
PBT-CB1X0AG2SE0AMA0H
Pressure sensors | PBT | PBT-CB1X0AG2SE0AMA0H | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire
AHM36A-S4AK012x12
Absolute encoders | AHS/AHM36 | AHM36A-S4AK012x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m
SAS4-S012P3PS2W04
Automation light grids | SLG | SAS4-S012P3PS2W04 | Optical light exit: Slim | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 120 mm | Response time: 19 ms
PBS2-RB600SG2SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RB600SG2SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 600 bar, 0 psi ... 8,702 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Out
ARS60-F1T32768
Absolute encoders | ARS60 | ARS60-F1T32768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, axial, 5 m
MLG20N-2680C10501
Automation light grids | MLG-2 | MLG20N-2680C10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 2,680 mm | Length of cable: 0.22 m, 0.21 m | Response time: 11.7 ms | Software feature (default setting - see technical data/features): 01
PBT-AB4X0SGESESAMA0Z
Pressure sensors | PBT | PBT-AB4X0SGESESAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 4 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Co
