LFP2300-G1NMB
Level sensors | LFP Inox | LFP2300-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 2,300 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4
TCT-2AAG11506MZ
Temperature sensors | TCT | TCT-2AAG11506MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Thread G ¼ B | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
DFS60E-TDWA00100
Incremental encoders | DFS60 | DFS60E-TDWA00100 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100
YG2A14-020UB3M2A14
Connectors and cables | Sensor-actuator cables | YG2A14-020UB3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YI8U13-C60UA1M2A13
Connectors and cables | Sensor-actuator cables | YI8U13-C60UA1M2A13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Male connector, M12, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
AFS60E-BHAA004096
Absolute encoders | AFS/AFM60 SSI | AFS60E-BHAA004096 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 4,096 (12 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
MLG25N-1475E10501
Automation light grids | MLG-2 | MLG25N-1475E10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 25 mm | Operating range: 5 m | Detection height: 1,475 mm | Length of cable: 0.22 m, 0.21 m | Response time: 5.9 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S4EK00200
Incremental encoders | DFS60 | DFS60B-S4EK00200 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 200
SFM60-HMAB0K02
Motor feedback systems | SFS/SFM60 | SFM60-HMAB0K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
PBT-RB400SG1SSFALA0V
Pressure sensors | PBT | PBT-RB400SG1SSFALA0V | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection typ
LFP1000-E5CMC
Level sensors | LFP Cubic | LFP1000-E5CMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,000 mm | Probe type: Cable probe | Remote amplifier: Yes, length of cable 2 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure ratin

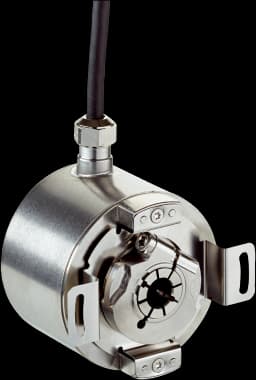

AFM60I-BBRK262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-BBRK262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: SSI, SSI + incremental, programmable | Connection type: Cable, 12-wire, radial, 1.5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
GTB6-P0211S60
Photoelectric sensors | G6 | GTB6-P0211S60 | Sensing range max.: 5 mm ... 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with connector M8, 4-pin, with knurled nut | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Special features: PUR cable, with M8 male connector, 4-pin
AFS60B-BCPK032768
Absolute encoders | AFS/AFM60 SSI | AFS60B-BCPK032768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Programming interface: Over handheld programming tool, over SOPAS
SGS4-F060P3PS2W07
Automation light grids | SLG | SGS4-F060P3PS2W07 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 57 ms
BEF-2SMMEAAL2
Mounting systems | Brackets | BEF-2SMMEAAL2 | Description: Omega bracket (30 mm), mounting position: face side | Material: Aluminum | Details: Aluminum | Packing unit: 2 pieces
AFS60I-S1AC262144
Absolute encoders | AFS/AFM60 SSI | AFS60I-S1AC262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DOL-2308-G30MJB2
Connectors and cables | Sensor-actuator cables | DOL-2308-G30MJB2 | Description: HIPERFACE®, shielded | Connection type head A: Female connector, M23, 12-pin, straight | Connection type head B: Flying leads | Signal type: HIPERFACE® | Cable: 30 m, 8-wire, PUR, halogen-free | Application: Zones with oils and lubricants
DFS60B-S4CA03600
Incremental encoders | DFS60 | DFS60B-S4CA03600 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 3,600

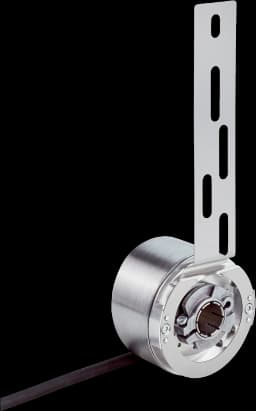

SFM60-HLKT2K02
Motor feedback systems | SFS/SFM60 | SFM60-HLKT2K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
