Търсене в каталога
41538 резултата за "SICK" · стр. 163/2077

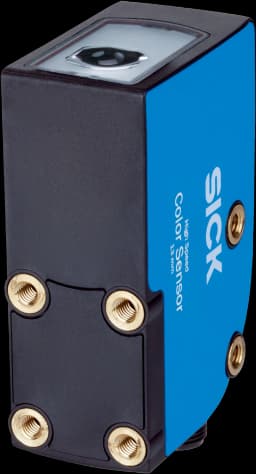

CSX-WNF1142282ZZZZ
Color sensors | CSS/CSX High Speed | CSX-WNF1142282ZZZZ | Light source: LED | Housing design: Large | Communication interface: - | Sensing distance: 13 mm | Switching output: NPN | Light spot size: 2 mm x 4 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Male connector M12, 8-pin
DBS60E-TBFPD1024
Incremental encoders | DBS60 | DBS60E-TBFPD1024 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
PBT-CB6X0SG1SSNAMA0Z
Pressure sensors | PBT | PBT-CB6X0SG1SSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
DLS40E-S3GV00300
Incremental encoders | DLS40 | DLS40E-S3GV00300 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 300
AFM60E-BGAN004096
Absolute encoders | AFS/AFM60 SSI | AFM60E-BGAN004096 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 10 m

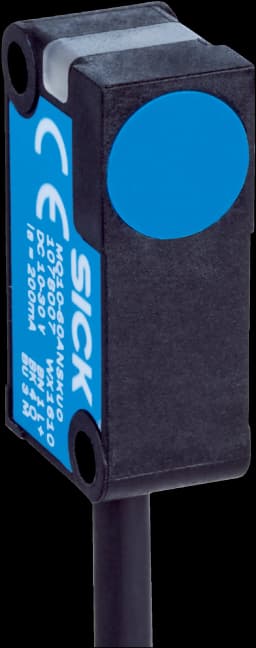

MQ10-60APSKU0
Magnetic sensors | MQB | MQ10-60APSKU0 | Sensing range Sn: 60 mm | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Switching output: PNP | Connection type: Cable, 3-wire, 2 m | Housing material: Plastic | Output function: NO

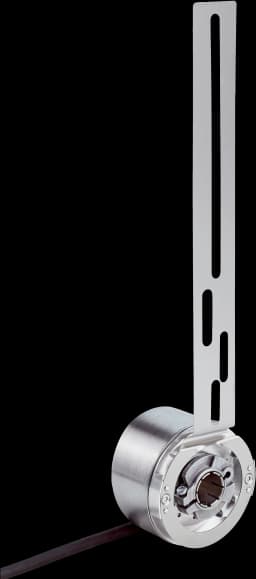

SFM60-H1KB3K02
Motor feedback systems | SFS/SFM60 | SFM60-H1KB3K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
WTF12-3N2431
Photoelectric sensors | W12-3 | WTF12-3N2431 | Sensing range max.: 30 mm ... 175 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Foreground suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
DLS40E-BEAV00200
Incremental encoders | DLS40 | DLS40E-BEAV00200 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 2 m | Pulses per revolution: 200
YM2D24-050EB2MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-050EB2MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, PROFINET | Cable: 5 m, 4-wire, AWG26, PVC | Description: Ethernet, shielded, PROFINET
AFM60B-TFAK032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-TFAK032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m
RSB1-0339B138100PZ4DZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0339B138100PZ4DZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 339 mm | Number of beams: 2 | Beam separation: 138 mm | Switching output: PNP | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 500 mm | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised)

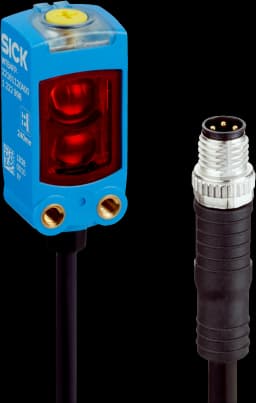

WTB4FT-38161120A00
Photoelectric sensors | W4 | WTB4FT-38161120A00 | Sensing range min. / max.: 7 mm / 120 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, DoubleLine | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M8, 4-pin, with knurled screws, 115 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiomete
DBS60E-TACJC1024
Incremental encoders | DBS60 | DBS60E-TACJC1024 | Mechanical design: Through hollow shaft 6 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-BHAP00100
Incremental encoders | DBS60 | DBS60E-BHAP00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
VLR-294BR4411
Reflectors and optics | Illuminations | VLR-294BR4411 | Description: Bar Light | Light source: LED, infrared 940 nm | LED class: Risk group 1 (low risk, IEC62471 : 2008) | Connection types: Connector M12, 4-pin, L = 0.5 m | Ambient operating temperature: 0 °C ... +40 °C
GTE6-F7411V
Photoelectric sensors | G6 | GTE6-F7411V | Sensing range max.: 10 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular

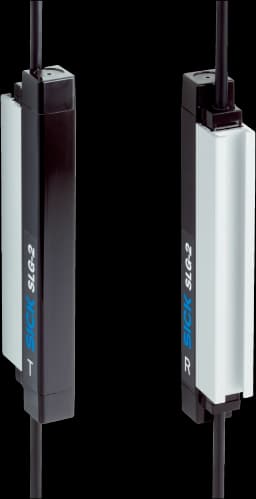

SLG10S-010FBKA1K01
Automation light grids | FlexChain | SLG10S-010FBKA1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 10 mm | Operating range: 6.5 m | Detection height: 100 mm | Length of cable: 0.5 m
DFS60E-BBAK02000
Incremental encoders | DFS60 | DFS60E-BBAK02000 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,000
DBS60E-BECP00100
Incremental encoders | DBS60 | DBS60E-BECP00100 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
