Търсене в каталога
41538 резултата за "SICK" · стр. 161/2077
BEF-AP-G6
Mounting systems | Brackets | BEF-AP-G6 | Description: Adapter for mounting G6 sensors into existing W160 installations | Material: Plastic | Details: Plastic | Items supplied: Fastening screws included
HSE18-B4A1AA
Photoelectric sensors | H18 Sure Sense | HSE18-B4A1AA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 20 m | Light source, light type: LED, Infrared light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: NPN, Light switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male connector M
YM8U14-050UA3XLEAX
Connectors and cables | Sensor-actuator cables | YM8U14-050UA3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M8, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
IMM05-0B8PSVT0S
Inductive proximity sensors | IMM | IMM05-0B8PSVT0S | Housing: Standard design | Sensing range Sn: 0.8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Visual adjustment indicator
IME12-04BPSZC0KS41
Inductive proximity sensors | IME | IME12-04BPSZC0KS41 | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special characteristic: Extended supply voltage range, protection against load dump
LFP0700-A5DMC
Level sensors | LFP Cubic | LFP0700-A5DMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 700 mm | Probe type: Rod probe | Remote amplifier: Yes, length of cable 3.3 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating:
PBT-AB1X0AG1SSNAMA0Z
Pressure sensors | PBT | PBT-AB1X0AG1SSNAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection
DFS60B-S1CC01000
Incremental encoders | DFS60 | DFS60B-S1CC01000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,000
DBS60E-BFFQ00100
Incremental encoders | DBS60 | DBS60E-BFFQ00100 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
USP-UM18
Reflectors and optics | Mirror | USP-UM18 | Description: 90° sound deflection plate for UM18-1xxxx and UM18-2xxxx, stainless steel, for straight versions
THTL-1AAAB0213MZ
Temperature sensors | THTL | THTL-1AAAB0213MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Angled pipe (DIN EN ISO 1127 and DIN 11866), row B, for welding | Nominal width: DN 21.3 | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67, IP69 | Communication interface: -
LFC-XXSBTM
Level sensors | LFC | LFC-XXSBTM | Communication interface: IO-Link | Process connection: G ½", DIN 3852-A / 316L | Remote amplifier: No | Output signal: 2 x PNP/NPN, IO-Link | Connection type: M12 round connector x 1, 4-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: PEEK | Housing material: Stainless steel 1.4404 / 316L, plastic | Enclosure rating: IP66, IP67, IP69 | Display: no | PWIS-cleaned: no | Bluetooth: no
DBS50E-S5AM02500
Incremental encoders | DBS36/50 | DBS50E-S5AM02500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,500
DBS60E-T3EA00100
Incremental encoders | DBS60 | DBS60E-T3EA00100 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
YF2AP5-250VB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2AP5-250VB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 25 m, 5-wire, PVC | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydr
SLG50S-180FAR11A00
Automation light grids | SLG-2 | SLG50S-180FAR11A00 | Optical light exit: Flat | Beam separation: 50 mm | Operating range: 3.5 m | Detection height: 1,800 mm | Length of cable: 150 mm
OD1-B035C15Q15
Laser distance sensors | OD Mini | OD1-B035C15Q15 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 20 mm ... 50 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 1.6 mm x 1 mm (35 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm

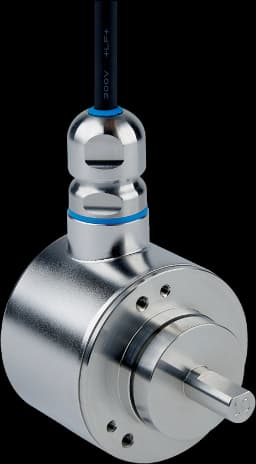

DBS60I-W4FM01024
Incremental encoders | DBS60 | DBS60I-W4FM01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K
LFV230-XXTGACPV0300
Level sensors | LFV200 | LFV230-XXTGACPV0300 | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 300 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
LFP1700-G1NMB
Level sensors | LFP Inox | LFP1700-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,700 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4
