SLB060-0B010K700
Signal transmitters | Acoustic signal transmitters | SLB060-0B010K700 | Description: This product is a buzzer unit exclusively for model SLT060-0B010J700.

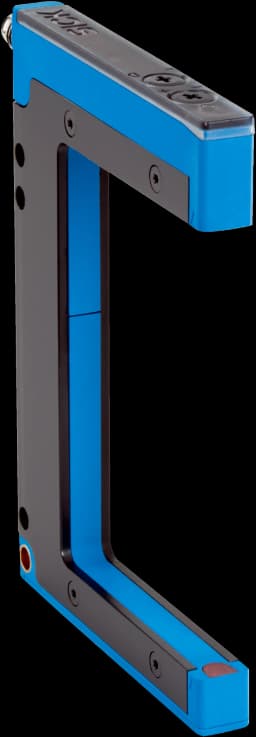

WFE-080060B337
Fork sensors | WFE | WFE-080060B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 80 mm, 60 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67
PBT-RB016SGTSSNALA0Z
Pressure sensors | PBT | PBT-RB016SGTSSNALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type
DFS60B-TDEK00360
Incremental encoders | DFS60 | DFS60B-TDEK00360 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 360
BEF-KHZ-RT1-63
Mounting systems | Brackets | BEF-KHZ-RT1-63 | Description: Mounting bracket on round body cylinder with piston diameter of 8 mm ... 63 mm, ambient temperature min –30 °C max 80 °C | Material: Stainless steel, Zinc cast | Details: Stainless steel, Zinc cast | Packing unit: 1 piece | Suitable for: T-slot
DOS-1204-GN
Connectors and cables | Field-wireable connectors | DOS-1204-GN | Description: Unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm² | Application: Hygienic and washdown zones
GL6-P7112
Photoelectric sensors | G6 | GL6-P7112 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Housing: Rectangular | Included with delivery: Stainles
YF2A14-050VB3M2A14
Connectors and cables | Sensor-actuator cables | YF2A14-050VB3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 5 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
TR4-SBM02CB
Safety switches | TR4 Direct | TR4-SBM02CB | System part: Sensor with actuator | Coding: Universally coded | Assured switch on distance Sao: 25 mm | Connection type Detail: Cable with plug M12, 5-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Status display: yes | Boundary area indication: no
STE-0803-GPC
Connectors and cables | Field-wireable connectors | STE-0803-GPC | Description: Unshielded | Connection type head A: Male connector, M8, 3-pin, straight, A-coded | Connection systems: Piercecon fast connection

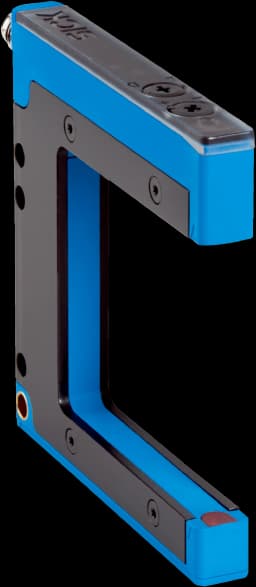

WFE-050060B337
Fork sensors | WFE | WFE-050060B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 50 mm, 60 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67
i110-RA223
Safety switches | i110R | i110-RA223 | Actuating element type: Turning lever | Positive action N/C contacts: 2 | N/O contacts: 2 | Housing material: Metal
IMM05-1B5PSVR8K
Inductive proximity sensors | IMM | IMM05-1B5PSVR8K | Housing: Short-body | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.2 m | Special features: Visual adjustment indicator
PTAC-1XXXXTJAGMAB
Pressure sensors | PTA | PTAC-1XXXXTJAGMAB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link, Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP6
UM18-212126111
Ultrasonic distance sensors | UM18 | UM18-212126111 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Type of analog output: Current output
YF2A28-050UA6M2A28
Connectors and cables | Sensor-actuator cables | YF2A28-050UA6M2A28 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Male connector, M12, 8-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 5 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

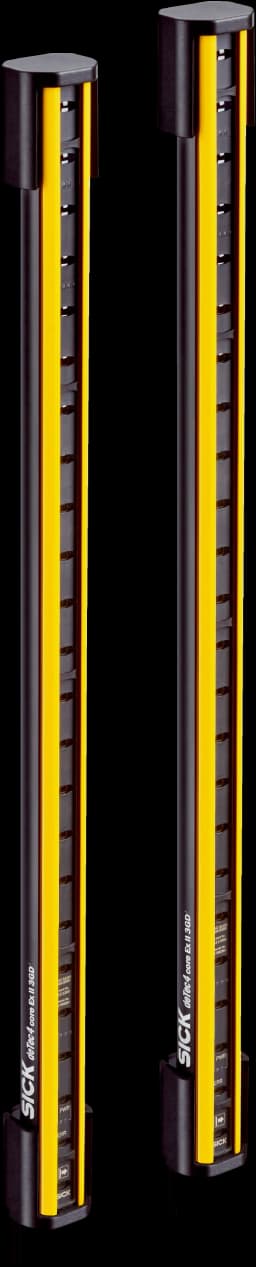

C4C-SX15030A10000, C4C-EX15030A10000
Safety light curtains | deTec | C4C-SX15030A10000, C4C-EX15030A10000 | Product version: deTec4 Core Ex II 3GD | System part: Pair | Application: Explosive areas | Ex-approvals: Ex II 3G/3D | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,500 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, “Notes fo
DBS60E-B8EA00010
Incremental encoders | DBS60 | DBS60E-B8EA00010 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 10 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
LUT9B-11626
Luminescence sensors | LUT9 | LUT9B-11626 | Light source: LED | Type of light: Visible blue light | Communication interface: - | Sensing distance: 150 mm | Housing design: Large | Switching output: PNP, NPN | Switching mode: Light switching | Light emission: Long side | Light spot direction: Vertical | Light spot size: 5 mm x 12 mm | Connection type Detail: Plug, M12, 5-pin
GL6-F4411V
Photoelectric sensors | G6 | GL6-F4411V | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular
