Търсене в каталога
41538 резултата за "SICK" · стр. 158/2077
CM18-08BPP-EW1
Capacitive proximity sensors | CM | CM18-08BPP-EW1 | Sensing range Sn: 0 mm ... 8 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Cable, 4-wire | Switching output: PNP | Output function: Complementary
SLG25S-060SER11A00
Automation light grids | SLG-2 | SLG25S-060SER11A00 | Optical light exit: Slim | Beam separation: 25 mm | Operating range: 1.5 m | Detection height: 600 mm | Length of cable: 150 mm
GRL18SG-F233Z
Photoelectric sensors | GR18 | GRL18SG-F233Z | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
GTB6SI-1GA1116EZZZ
Photoelectric sensors | G6 | GTB6SI-1GA1116EZZZ | Sensing range min. / max.: 5 mm / 450 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Type of light: Infrared light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
L41E-21MA1B
Safety light-beam sensors | L41 | L41E-21MA1B | System part: Receiver | Safety level: PL e, SIL 3, Type 4 | Scanning range: 16 m | Diameter: M18 | Optical axis: Axial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
PL30A
Reflectors and optics | Reflectors | PL30A | Description: Rectangular, screw connection | Dimensions: 30 mm 7.6 mm 82.2 mm | Ambient operating temperature: –20 °C ... +65 °C

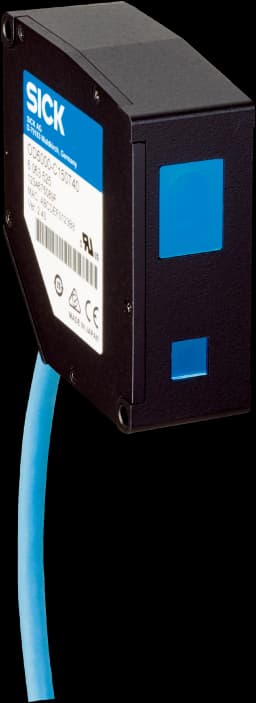

OD5000-C150T40
Laser distance sensors | OD5000 | OD5000-C150T40 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 110 mm ... 190 mm | Repeatability: 0.2 µm | Laser class: 1 | Typ. light spot size (distance): Ø 120 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
C4MT-10834ABB03FE0
Safety light curtains | miniTwin | C4MT-10834ABB03FE0 | Usage: miniTwin4 as a standalone device, miniTwin4 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 34 mm | Scanning range: 5 m | Protective field height: 1,080 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the re
HSE18-B4B1BA
Photoelectric sensors | H18 Sure Sense | HSE18-B4B1BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 20 m | Light source, light type: LED, Infrared light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: NPN, Light switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Cable with M12 m
IME12-02BPSZC0S
Inductive proximity sensors | IME | IME12-02BPSZC0S | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special characteristic: Extended operating temperature
ANM58B-BFNNA000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BFNNA000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool

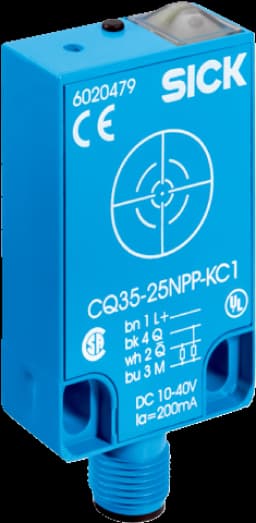

CQ35-25NPP-KC1
Capacitive proximity sensors | CQ | CQ35-25NPP-KC1 | Sensing range Sn: 4 mm ... 25 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: PNP | Output function: Complementary
PAC50-FGC
Pressure sensors | PAC50 | PAC50-FGC | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 2 x G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: - | Output signal: 2 x PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x
PBT-RB1K0AG2SE0VMC0Z
Pressure sensors | PBT | PBT-RB1K0AG2SE0VMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1,000 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire |

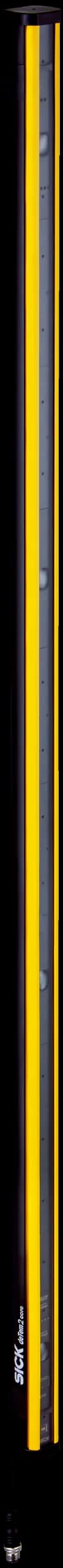

M2C-EA04300A10
Safety light-beam sensors | deTem | M2C-EA04300A10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Receiver | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Number of beams: 4 | Beam separation: 300 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Receiver, safety instruction, Mounting instructions, Operating instruc
OD2-P135W75I0
Laser distance sensors | OD Value | OD2-P135W75I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 60 mm ... 210 mm | Repeatability: 60 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.4 mm (135 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
PBT-AB016AG4SFSALA0Z
Pressure sensors | PBT | PBT-AB016AG4SFSALA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +100 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire |
UC40-11411B
Ultrasonic distance sensors | UC40 | UC40-11411B | Communication interface: IO-Link | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 160 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
UM30-21411B
Ultrasonic distance sensors | UM30 | UM30-21411B | Communication interface: IO-Link | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
FX3-XTDI80012
Safety controllers | Flexi Soft | FX3-XTDI80012 | Module: I/O module | Safe inputs: 8 | Flexi Loop-compatible: yes | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: yes
