Търсене в каталога
41538 резултата за "SICK" · стр. 156/2077
YF2A1B-030UD6F2A15
Connectors and cables | Sensor-actuator cables | YF2A1B-030UD6F2A15 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Female connector, M12, 5-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 3 m, 5-wire, PUR, halogen-free | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
SX0B-B1110G
System plugs and extension modules | System plugs S300 | SX0B-B1110G | Cable: 10 m, 11-wire, PVC | Description: Pre-assembled, unshielded, Not for use of incremental encoders, integrated configuration storage | Connection systems: Flying leads
HSE18-A4A2BA
Photoelectric sensors | H18 Sure Sense | HSE18-A4A2BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male c

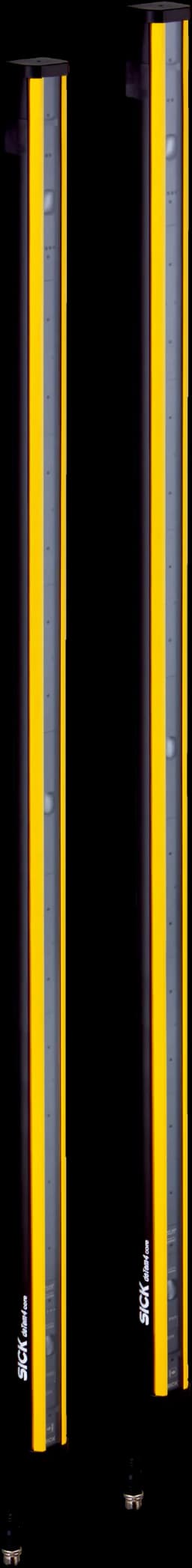

M4C-SA0340LA10, M4C-EA03400A10
Safety light-beam sensors | deTem | M4C-SA0340LA10, M4C-EA03400A10 | Product version: deTem4 Core | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 17 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, safety instructio
LFH-EB1X0G1AF10SW0
Level sensors | LFH | LFH-EB1X0G1AF10SW0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: FEP cable connection | Process temperature: –10 °C ... +85 °C | Process pressure: 0 bar ... 1 bar | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Additional function: Over
YG8U13-050UA1XLEAX
Connectors and cables | Sensor-actuator cables | YG8U13-050UA1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

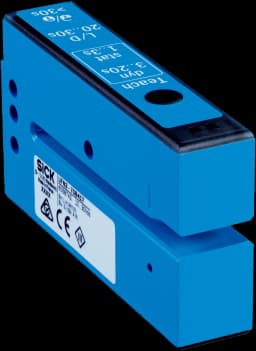

UFN3-70B417
Fork sensors | UF | UFN3-70B417 | Communication interface: - | Adjustment: Teach-in button | Fork width/depth: 3 mm, 69 mm | Switching output: PNP, NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 1.5 kHz | Response time: ≤ 250 µs | Enclosure rating: IP65
IME18-08BPOZC0K
Inductive proximity sensors | IME | IME18-08BPOZC0K | Housing: Short-body | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Male connector M12, 4-pin
PAC50-DNB
Pressure sensors | PAC50 | PAC50-DNB | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼" NPT female | Process temperature: 0 °C ... +60 °C | Communication interface: - | Output signal: PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x
Connection cable
Connectors and cables | Other connectors and cables | Connection cable | Connection type head A: Female connector, 7-pin | Connection type head B: Ferrule | Cable: 100 m, 4-wire
IME12-08NPPZC0S
Inductive proximity sensors | IME | IME12-08NPPZC0S | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin

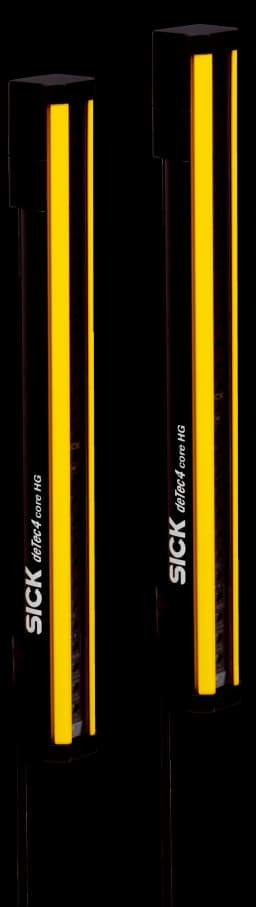

C4C-SG19510A10000, C4C-EG19510A10000
Safety light curtains | deTec | C4C-SG19510A10000, C4C-EG19510A10000 | Product version: deTec4 Core HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 1,950 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter
YMUSA4-025UT1MUSX4
Connectors and cables | Other connectors and cables | YMUSA4-025UT1MUSX4 | Description: Sensor/actuator cable, shielded | Connection type head A: Male connector, USB-A, 4-pin, straight | Connection type head B: Male connector, USB-C®, 4-pin, straight | Signal type: Sensor/actuator cable | Cable: 2.5 m, 4-wire, PUR, halogen-free
WTM4SP-84161120A00
Photoelectric sensors | W4 | WTM4SP-84161120A00 | Sensing range min. / max.: 4 mm / 250 mm, 0 mm / 250 mm, 4 mm / 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug M12, 4-pin, 190 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VIS
V2D632D-MWSFB4
Image-based code readers | Lector63x | V2D632D-MWSFB4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 1,600 px x 1,200 px (1.9 MP) | Illumination color: White | Focal length: 25 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
WFS3-40N415
Fork sensors | WFS | WFS3-40N415 | Adjustment: Plus/minus button, cable | Light source: LED | Type of light: Infrared light | Fork width/depth: 3 mm, 42 mm | Switching output: NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 50 µs | Enclosure rating: IP65
DBS60E-RECL01000
Incremental encoders | DBS60 | DBS60E-RECL01000 | Mechanical design: Through hollow shaft 12 mm (rear clamping) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
GRTE18S-P3037S23
Photoelectric sensors | GR18 | GRTE18S-P3037S23 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, with knurled nut, 563 mm | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
IHM06-02BPSVT0K
Inductive proximity sensors | IMM | IHM06-02BPSVT0K | Housing: Short-body | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Visual adjustment indicator
L41S-21MA1A, L41E-21MA1A
Safety light-beam sensors | L41 | L41S-21MA1A, L41E-21MA1A | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 16 m | Diameter: M18 | Optical axis: Axial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
